Description: Value
EAN number: 3603603866096
Product number (SAP): 86038059
Ordering code ANSI: 25A2R033M12-STN16-C
Product Line: ECON TN
Gross weight – grams: 99.6

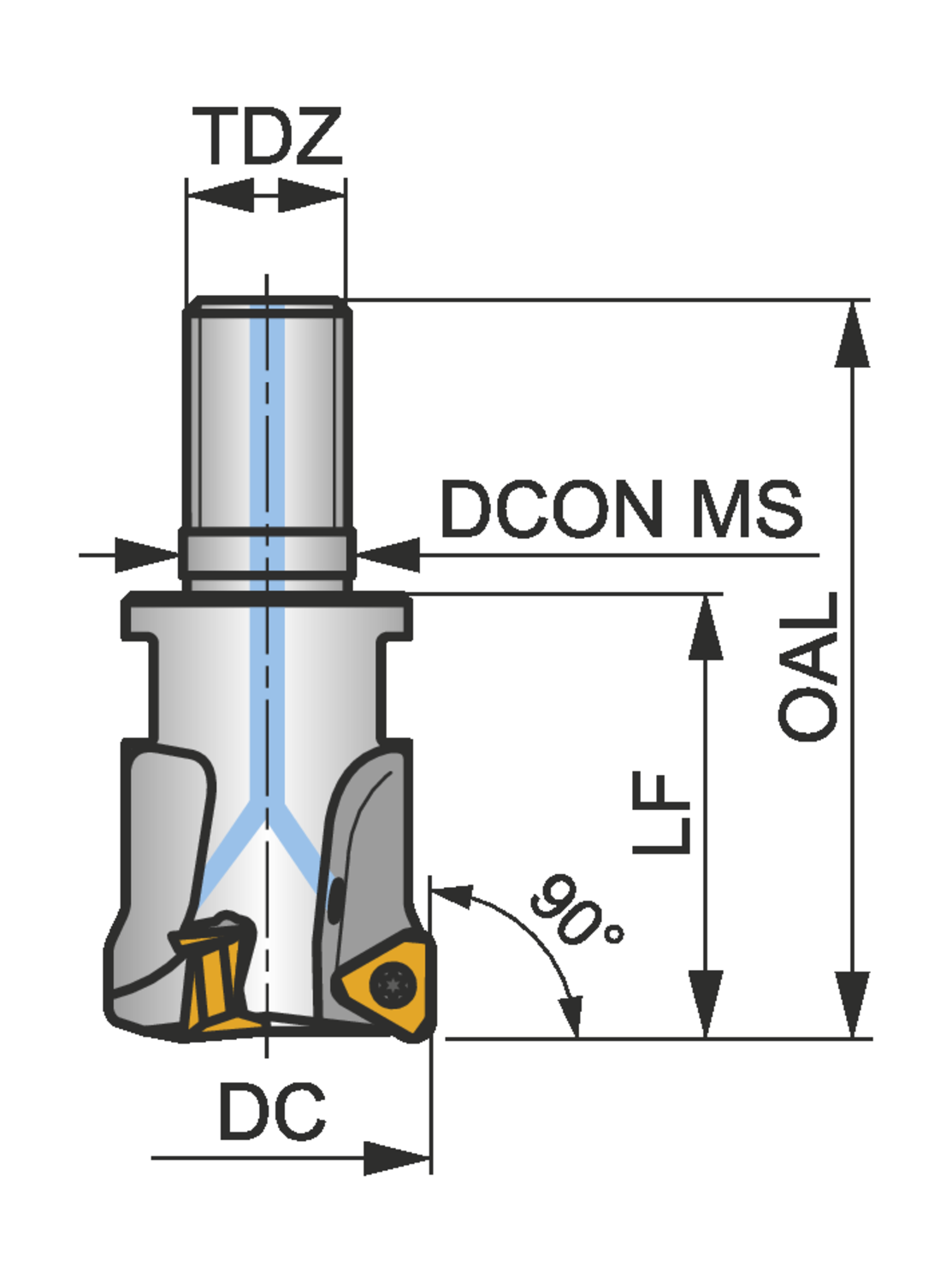

Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 55 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Functional length – millimeter (LF): 33 mm
Thread diameter size (TDZ): M12

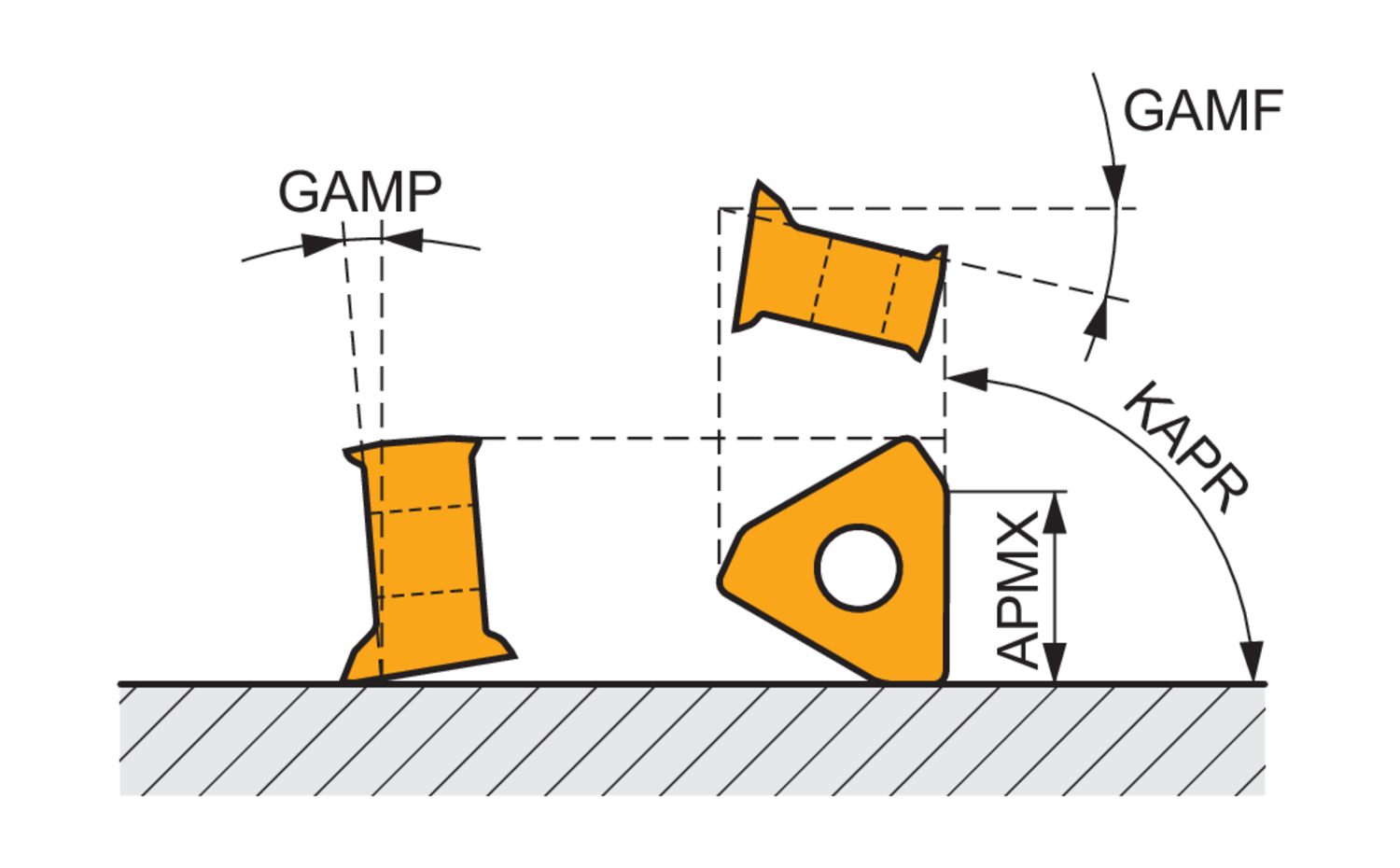

Radial rake angle (GAMF): -18.5
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 20000
Net weight – grams: 99.6
Cutter Design: STN16
Insert index count (NOI): 2
ISO: 25A2R033M12-STN16-C
|
