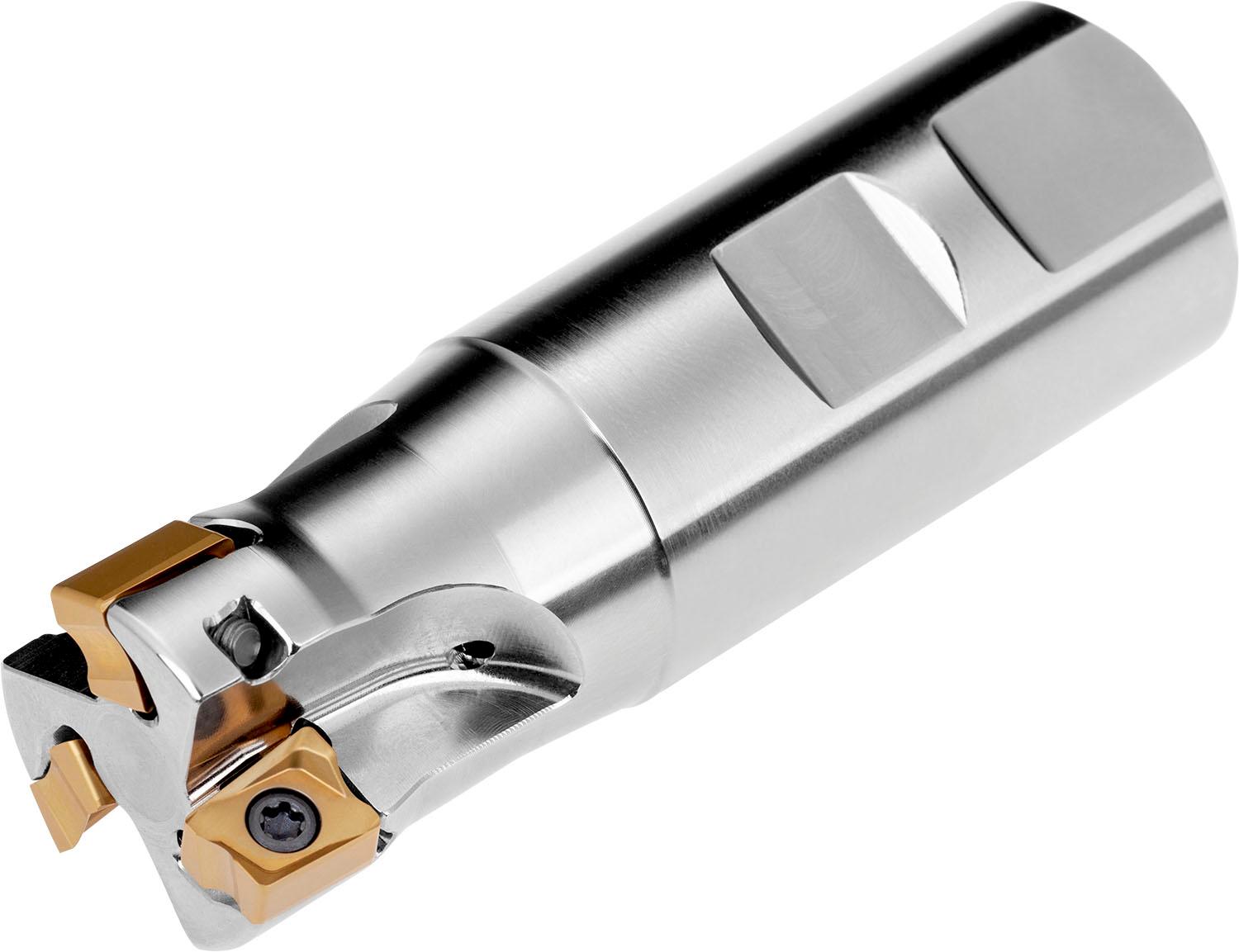

PRAMET 25A2R042B25-SLN12-C Milling cutters with clamping by screw

Product Code: 25A2R042B25-SLN12-C

$556.30$505.73 Ex. GST

Product Code: 25A2R042B25-SLN12-C SKU 25A2R042B25-SLN12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 2 of LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 42mm functional and 99mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5401 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602956460
Product number (SAP): 86001149
Ordering code ANSI: 25A2R042B25-SLN12-C
Product Line: ECON LN
Gross weight – grams: 324.5
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 99 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 42 mm
Radial rake angle (GAMF): -23
Axial rake angle (GAMP): -8
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 19500
Net weight – grams: 300
Cutter Design: SLN12
Insert index count (NOI): 2
ISO: 25A2R042B25-SLN12-C

Brand

PRAMET
