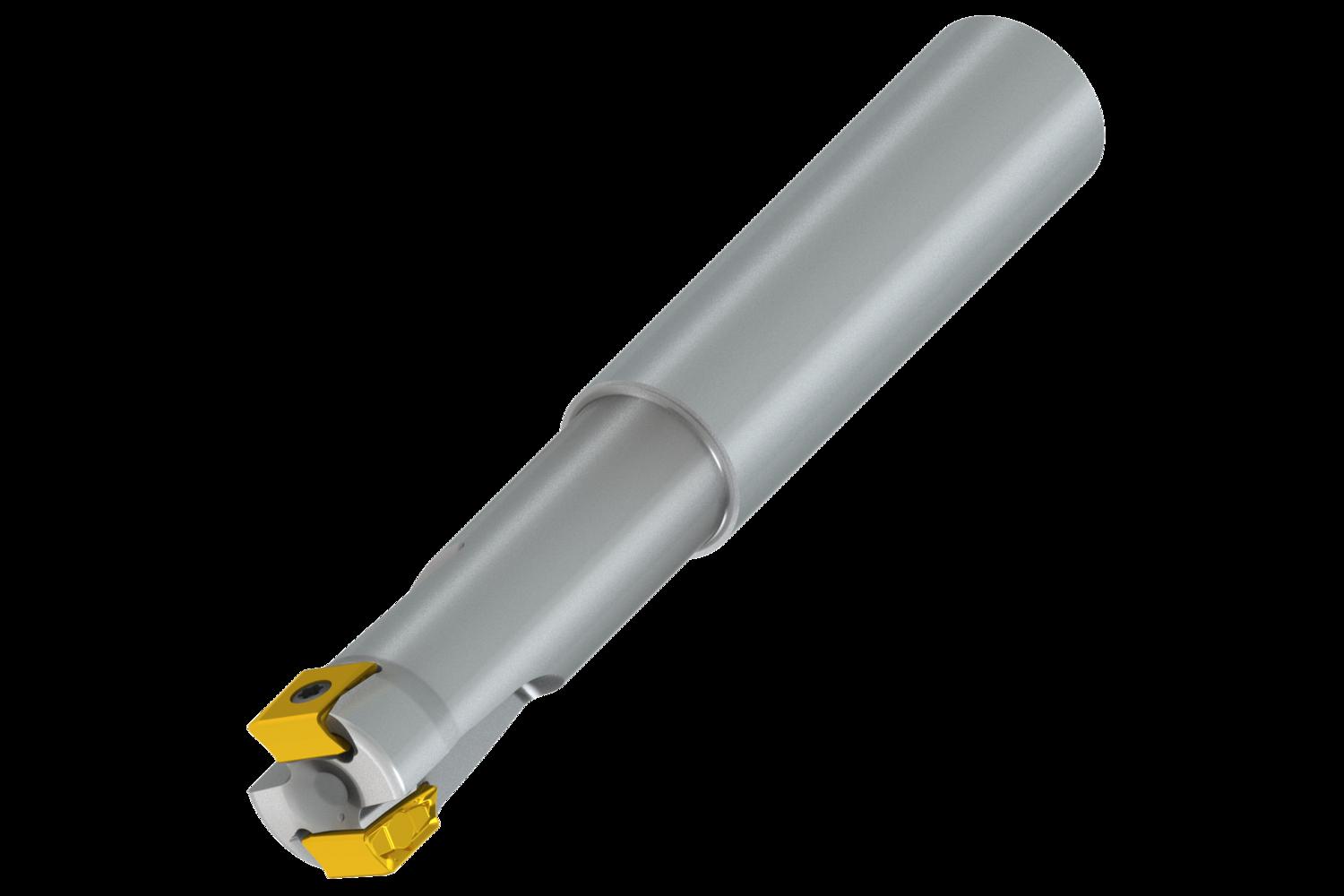

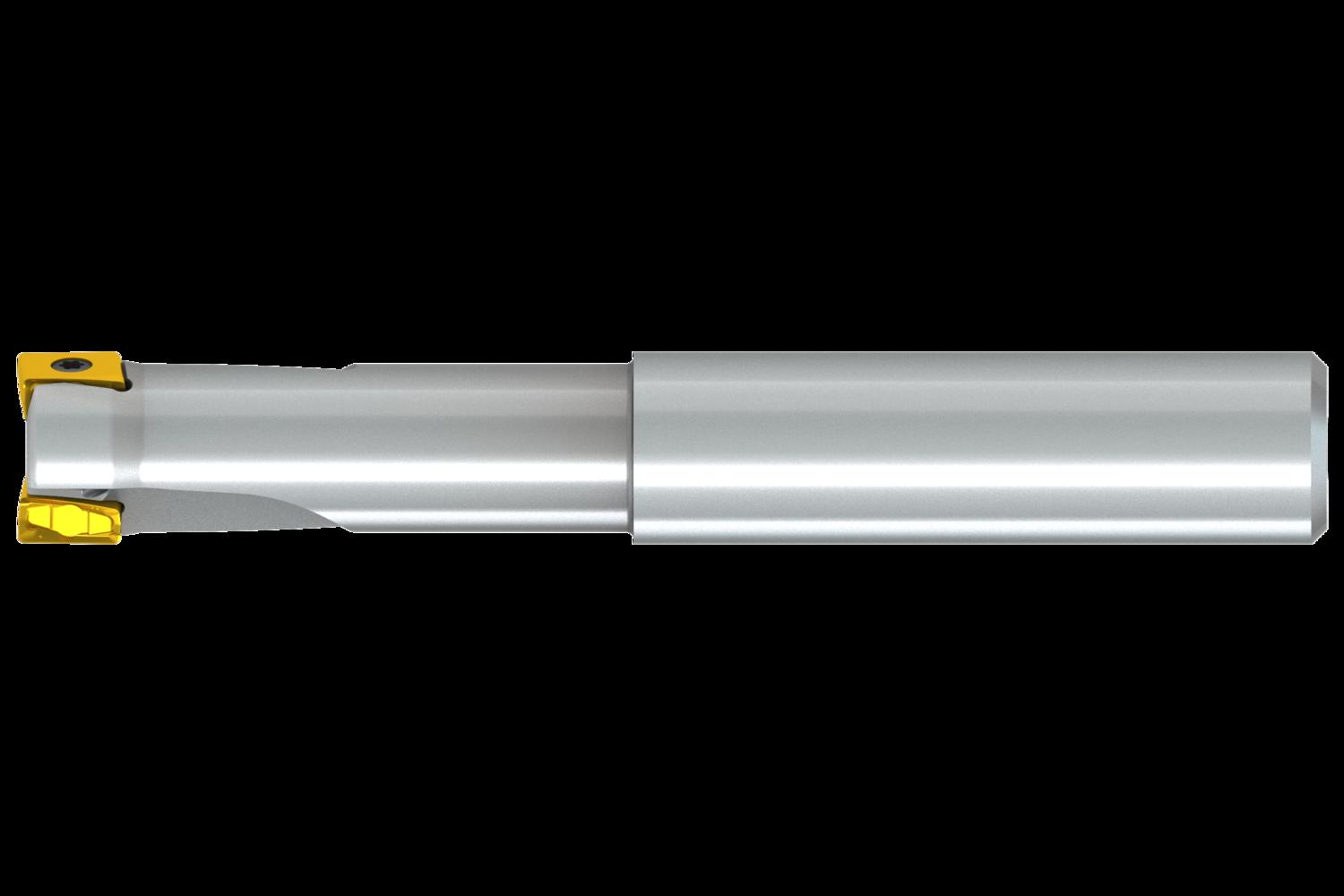

PRAMET 25A2R080A25-SLN12X-C Milling cutters with clamping by screw

Product Code: 25A2R080A25-SLN12X-C

$539.31$490.28 Ex. GST

Product Code: 25A2R080A25-SLN12X-C SKU 25A2R080A25-SLN12X-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 2 of LNEX 1210.. double-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm parallel shank according to DIN 1835A, 80mm usable and 170mm overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm

Additional information

Weight 0.5000 kg
Dimensions
barcode

3603603958104

Additional Information

Description: Value
EAN number: 3603603958104
Product number (SAP): 86038993
Ordering code ANSI: 25A2R080A25-SLN12X-C
Gross weight – grams: 540.3
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 170 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 80 mm

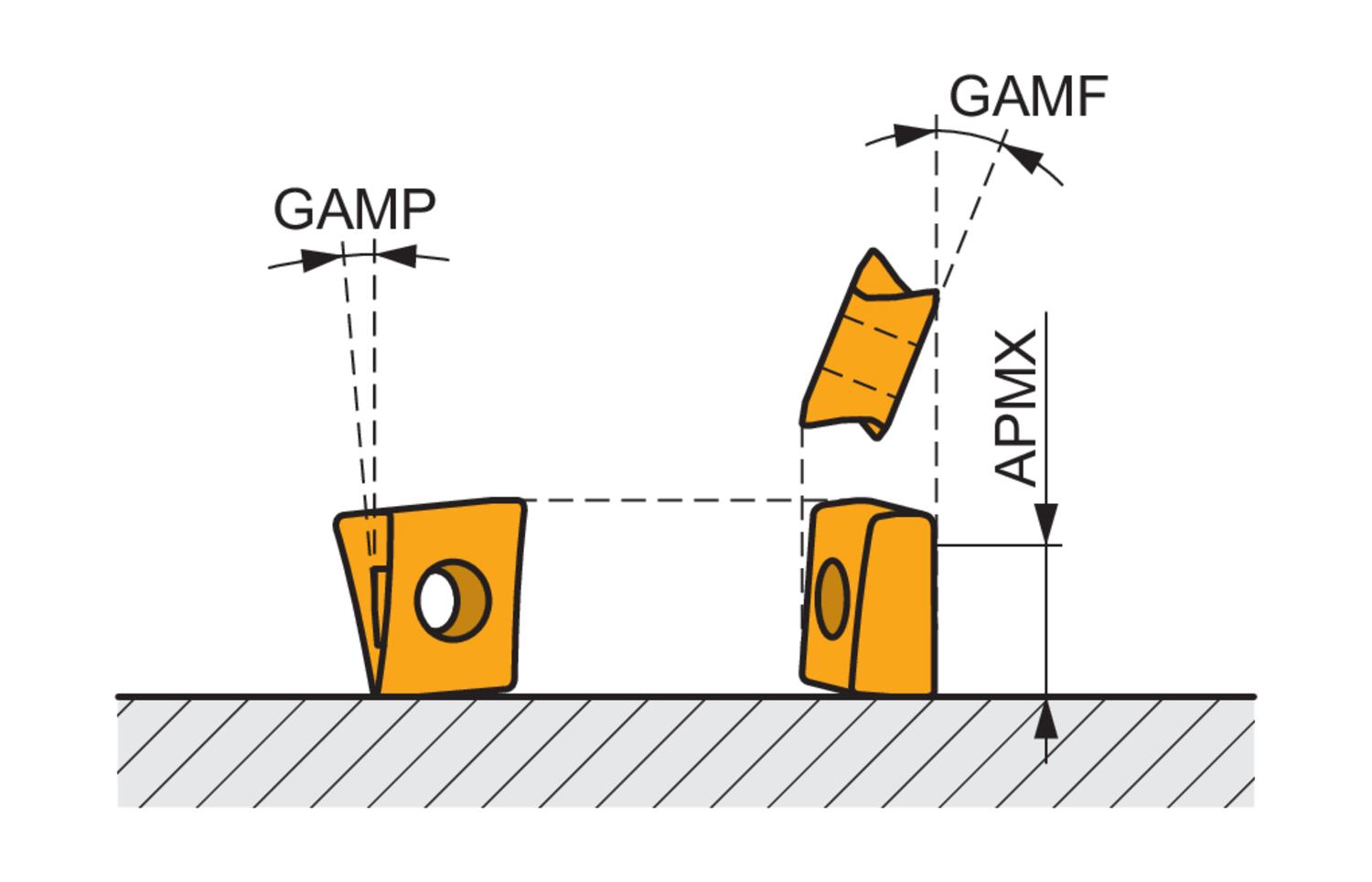

Radial rake angle (GAMF): -30
Axial rake angle (GAMP): -5
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 17300
Net weight – grams: 500
Cutter Design: SLN12X
ISO: 25A2R080A25-SLN12X-C
