Description: Value
EAN number: 3603603866072
Product number (SAP): 86038057
Ordering code ANSI: 25A2R080A25-STN16-C
Product Line: ECON TN
Gross weight – grams: 515.5

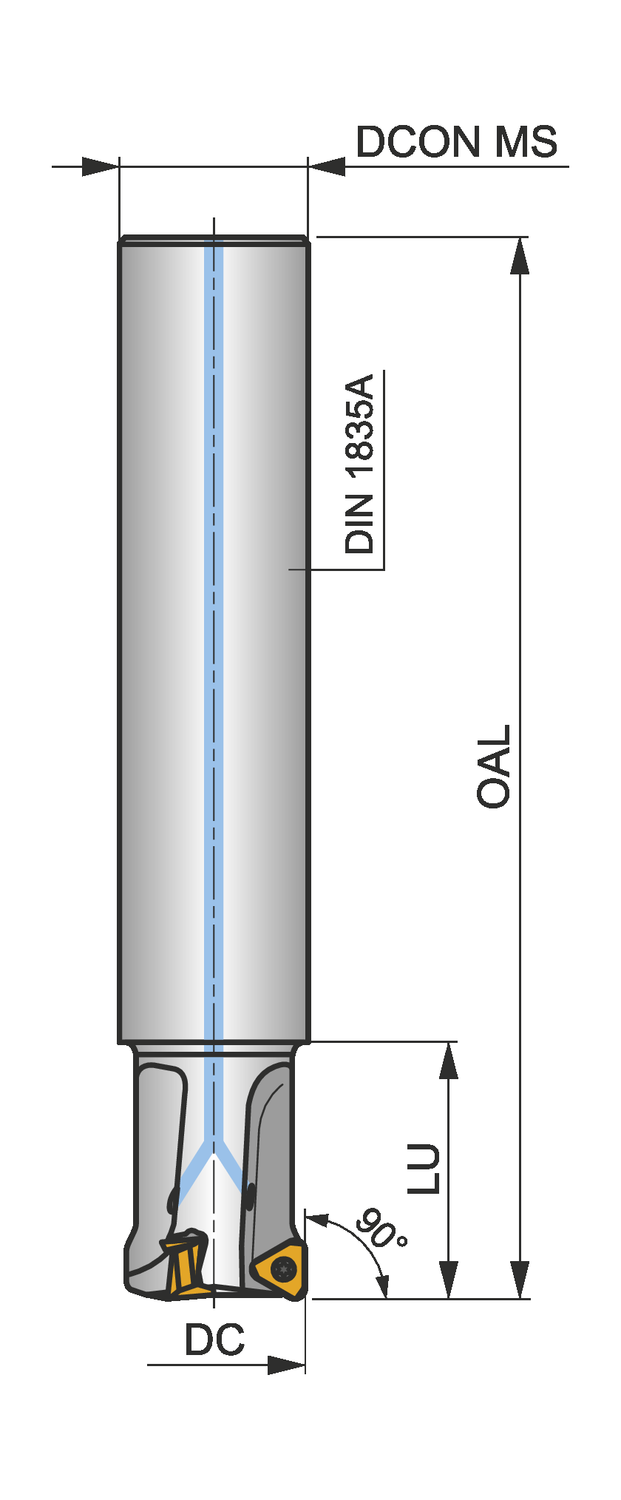

Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 170 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 80 mm
Radial rake angle (GAMF): -18.5
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 20000
Net weight – grams: 480
Cutter Design: STN16
Insert index count (NOI): 2
ISO: 25A2R080A25-STN16-C
|
