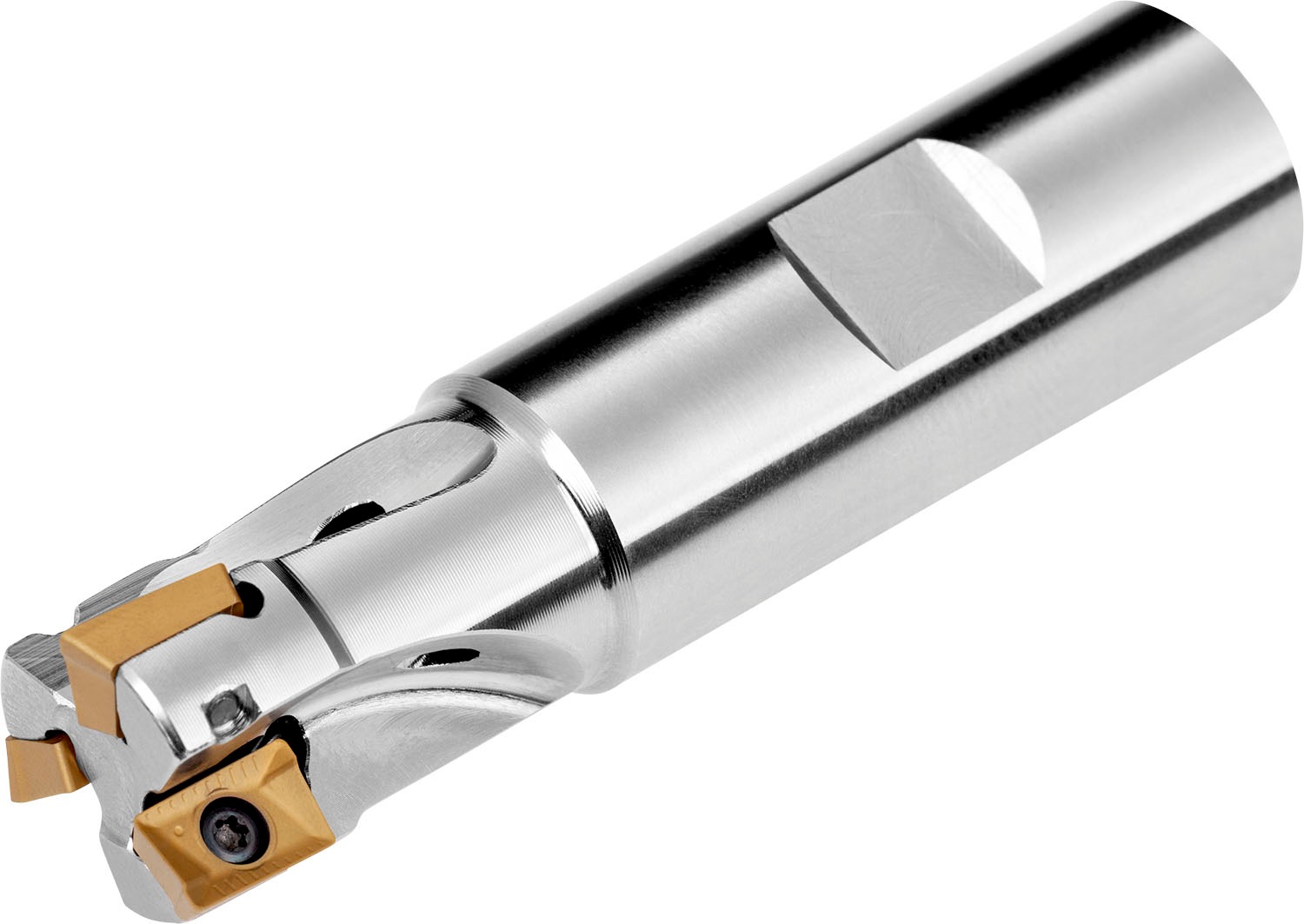

PRAMET 25A3R042B25-SAP10D-C Milling cutters with clamping by screw

Product Code: 25A3R042B25-SAP10D-C

$597.09$542.81 Ex. GST

Product Code: 25A3R042B25-SAP10D-C SKU 25A3R042B25-SAP10D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double positive geometry which utilises 3 of APKT 1003.. single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 98mm overall length, through coolant for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5797 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602937940
Product number (SAP): 84005156
Ordering code ANSI: 25A3R042B25-SAP10D-C
Gross weight – grams: 358
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 98 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 42 mm
Radial rake angle (GAMF): 12
Axial rake angle (GAMP): 4
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 24700
Net weight – grams: 358
Cutter Design: SAP10D
Insert index count (NOI): 3
ISO: 25A3R042B25-SAP10D-C

Brand

PRAMET
