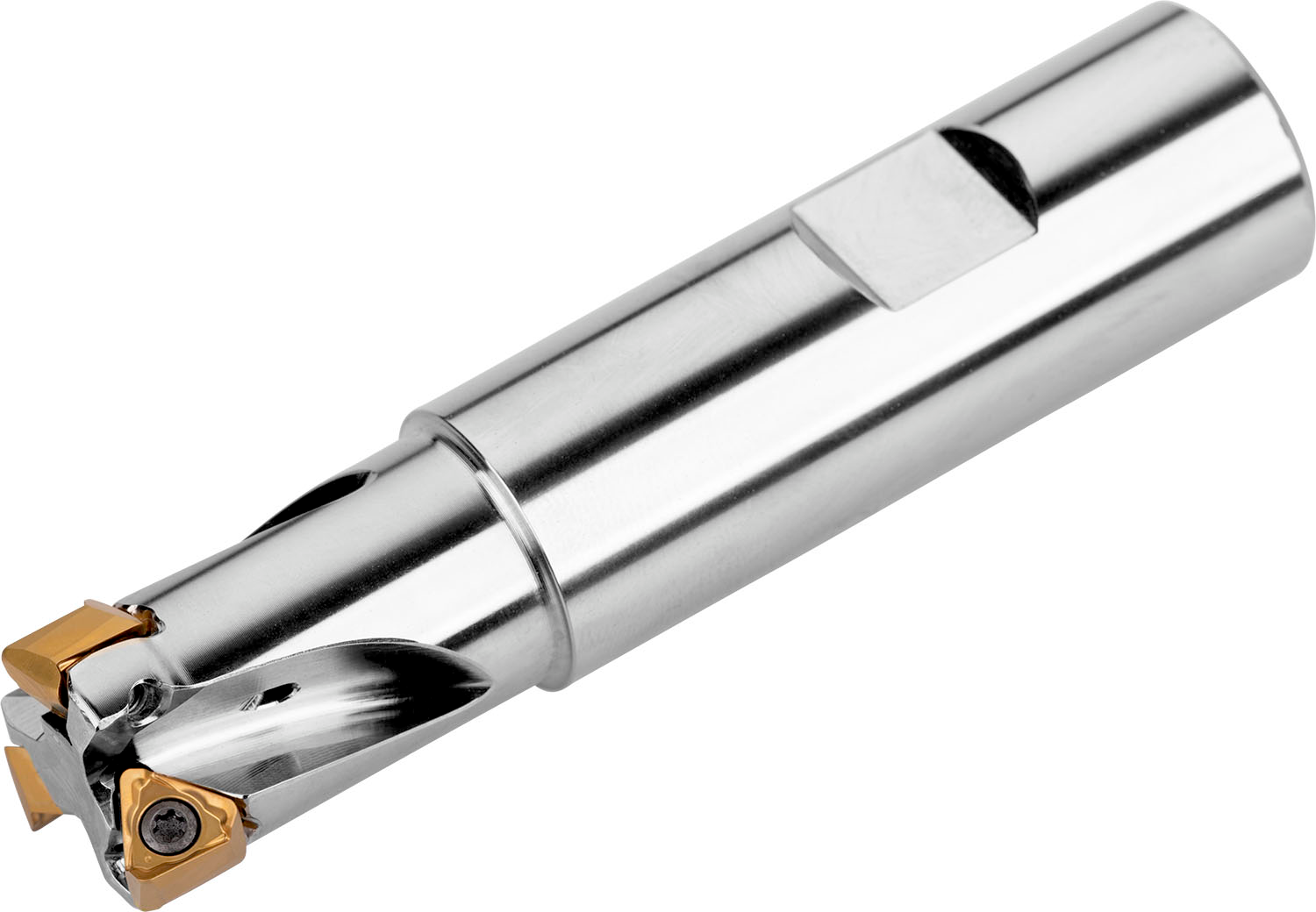

PRAMET 25A3R042B25-STN10-C Milling cutters with clamping by screw

Product Code: 25A3R042B25-STN10-C

$592.56$538.69 Ex. GST

Product Code: 25A3R042B25-STN10-C SKU 25A3R042B25-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 3 of TNGX 1004.. double-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm Weldon shank according to DIN 1835B, 42mm functional and 100mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.5753 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603173194
Product number (SAP): 86027490
Ordering code ANSI: 25A3R042B25-STN10-C
Product Line: ECON TN
Gross weight – grams: 310.3
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 100 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 42 mm
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 24700
Net weight – grams: 310.3
Cutter Design: STN10
Insert index count (NOI): 3
ISO: 25A3R042B25-STN10-C

Brand

PRAMET
