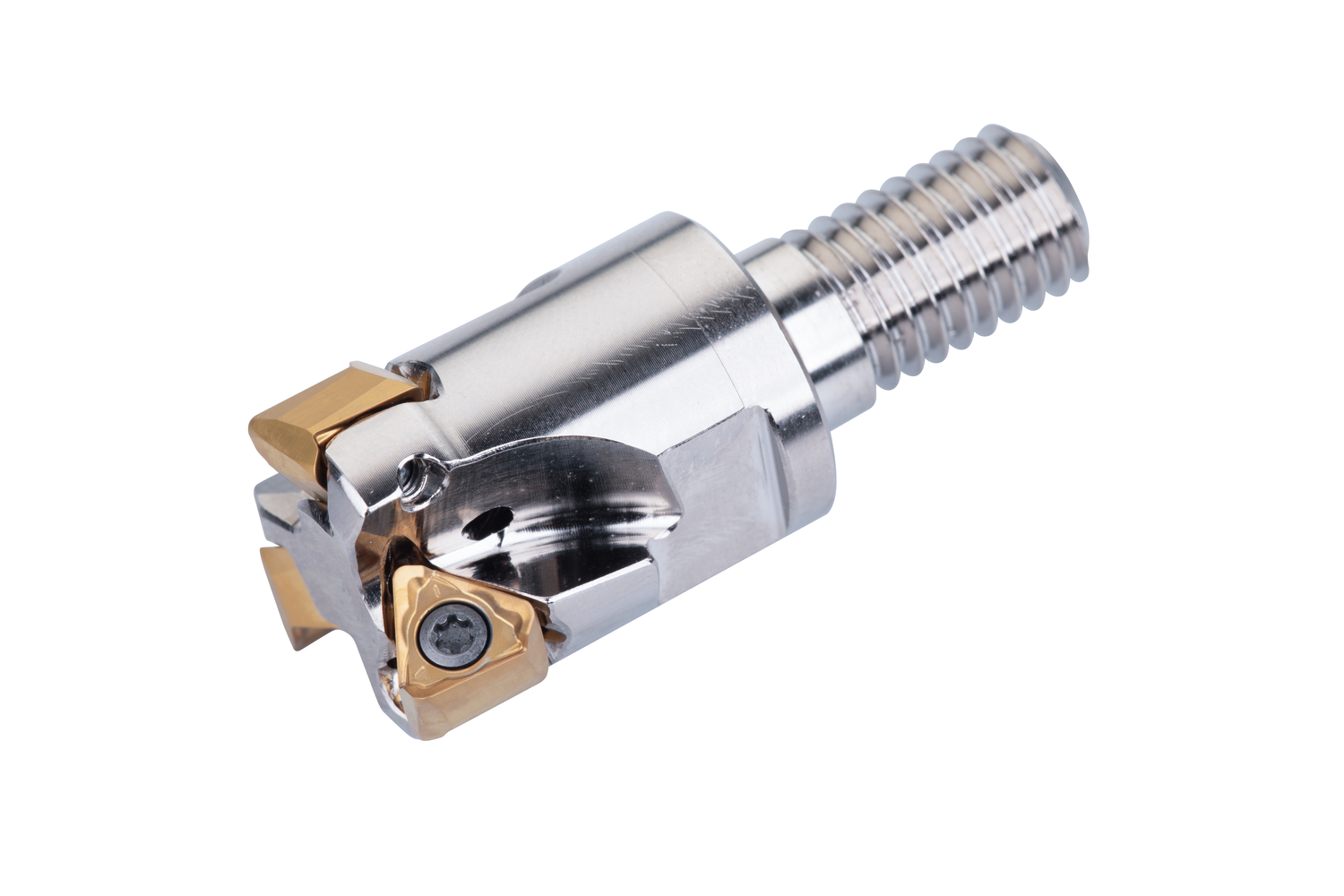

PRAMET 25A4R033M12-STN10-C Milling cutters with clamping by screw

Product Code: 25A4R033M12-STN10-C

$572.17$520.15 Ex. GST

Product Code: 25A4R033M12-STN10-C SKU 25A4R033M12-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 4 of TNGX 1004.. double-sided inserts, cutting diameter 25mm with 90° approach angle and M12 threaded shank for standard modular tool-holders, 33mm protrusion length, through coolant and differential pitch for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.5555 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603173262
Product number (SAP): 86027497
Ordering code ANSI: 25A4R033M12-STN10-C
Product Line: ECON TN
Gross weight – grams: 98.4
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 55 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Functional length – millimeter (LF): 33 mm
Thread diameter size (TDZ): M12
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Net weight – grams: 98
Cutter Design: STN10
Insert index count (NOI): 4
ISO: 25A4R033M12-STN10-C

Brand

PRAMET
