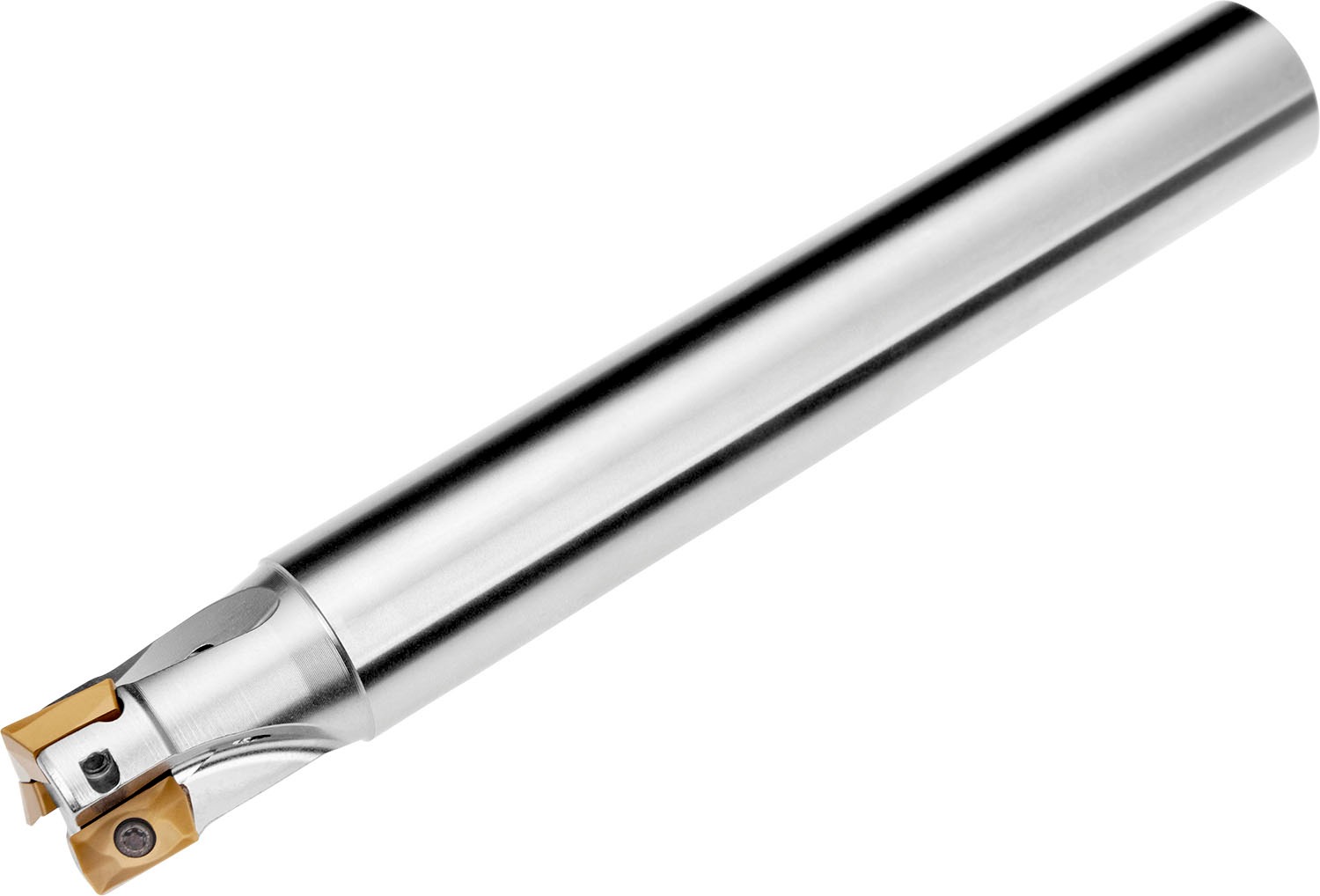

PRAMET 25A4R040A25-SAD11E-C Milling cutters with clamping by screw

Product Code: 25A4R040A25-SAD11E-C

$546.11$496.46 Ex. GST

Product Code: 25A4R040A25-SAD11E-C SKU 25A4R040A25-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 4 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 25mm with 90° approach angle and 25mm parallel shank according to DIN 1835A, 40mm functional and 250mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5302 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603116085
Product number (SAP): 86027027
Ordering code ANSI: 25A4R040A25-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 848.3
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 250 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 40 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -10.2
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 4
Rotational speed maximum (RPMX): 24100
Net weight – grams: 845
Cutter Design: SAD11E
Insert index count (NOI): 4
ISO: 25A4R040A25-SAD11E-C

Brand

PRAMET
