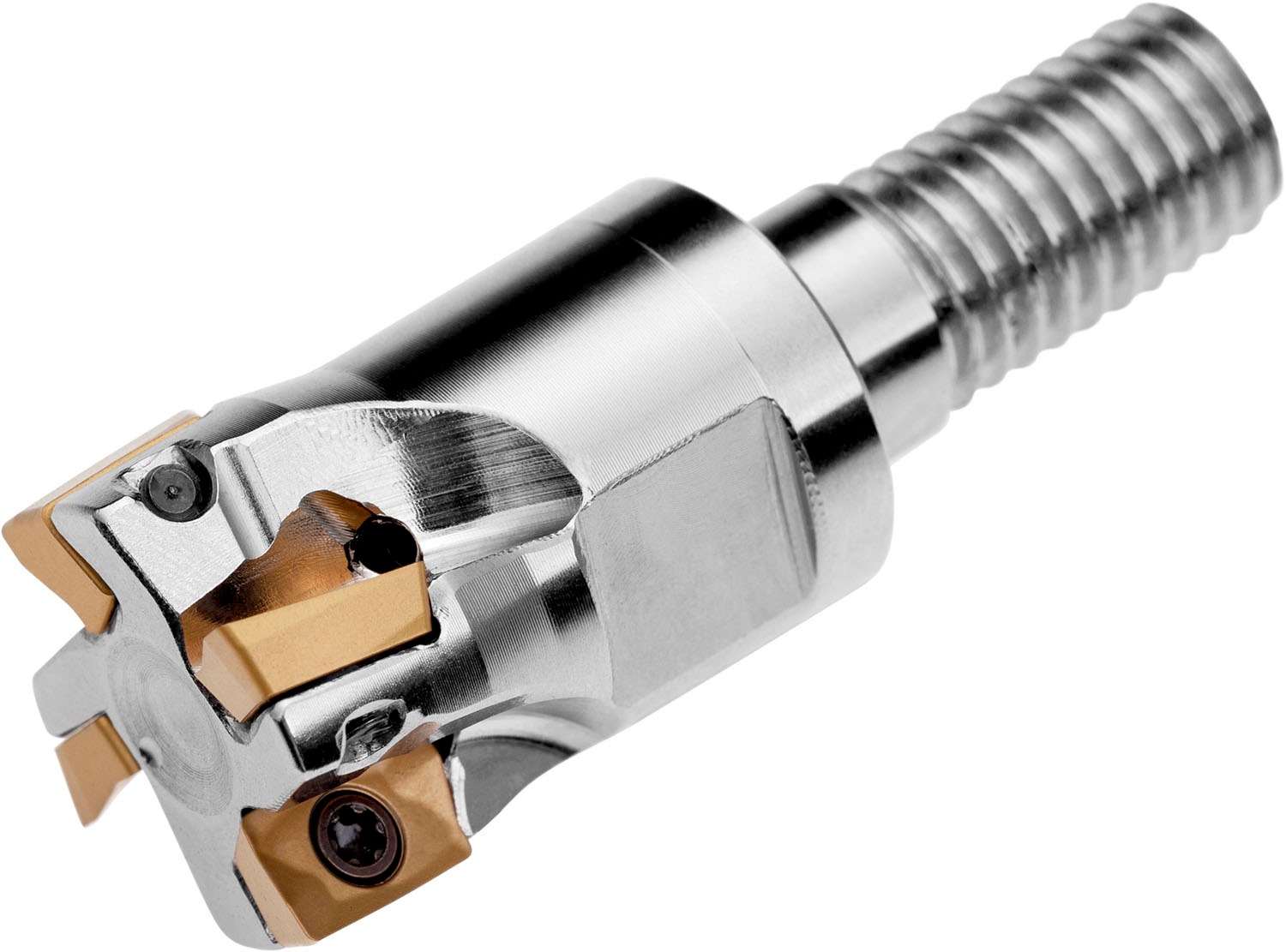

PRAMET 25A6R035M12-SAD07D-C Milling cutters with clamping by screw

Product Code: 25A6R035M12-SAD07D-C

$551.77$501.61 Ex. GST

Product Code: 25A6R035M12-SAD07D-C SKU 25A6R035M12-SAD07D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 6 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 25mm with 90° approach angle and M12 threaded shank for standard modular tool-holders, 35mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.5357 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602992826
Product number (SAP): 86020578
Ordering code ANSI: 25A6R035M12-SAD07D-C
Product Line: FORCE AD
Gross weight – grams: 120.9
Cutting diameter – millimeter (DC): 25 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Functional length – millimeter (LF): 35 mm
Thread diameter size (TDZ): M12
Radial rake angle (GAMF): -6.5
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 6
Cutting pitch differential (CPDF): Yes
Net weight – grams: 118
Cutter Design: SAD07D
Insert index count (NOI): 6
ISO: 25A6R035M12-SAD07D-C

Brand

PRAMET
