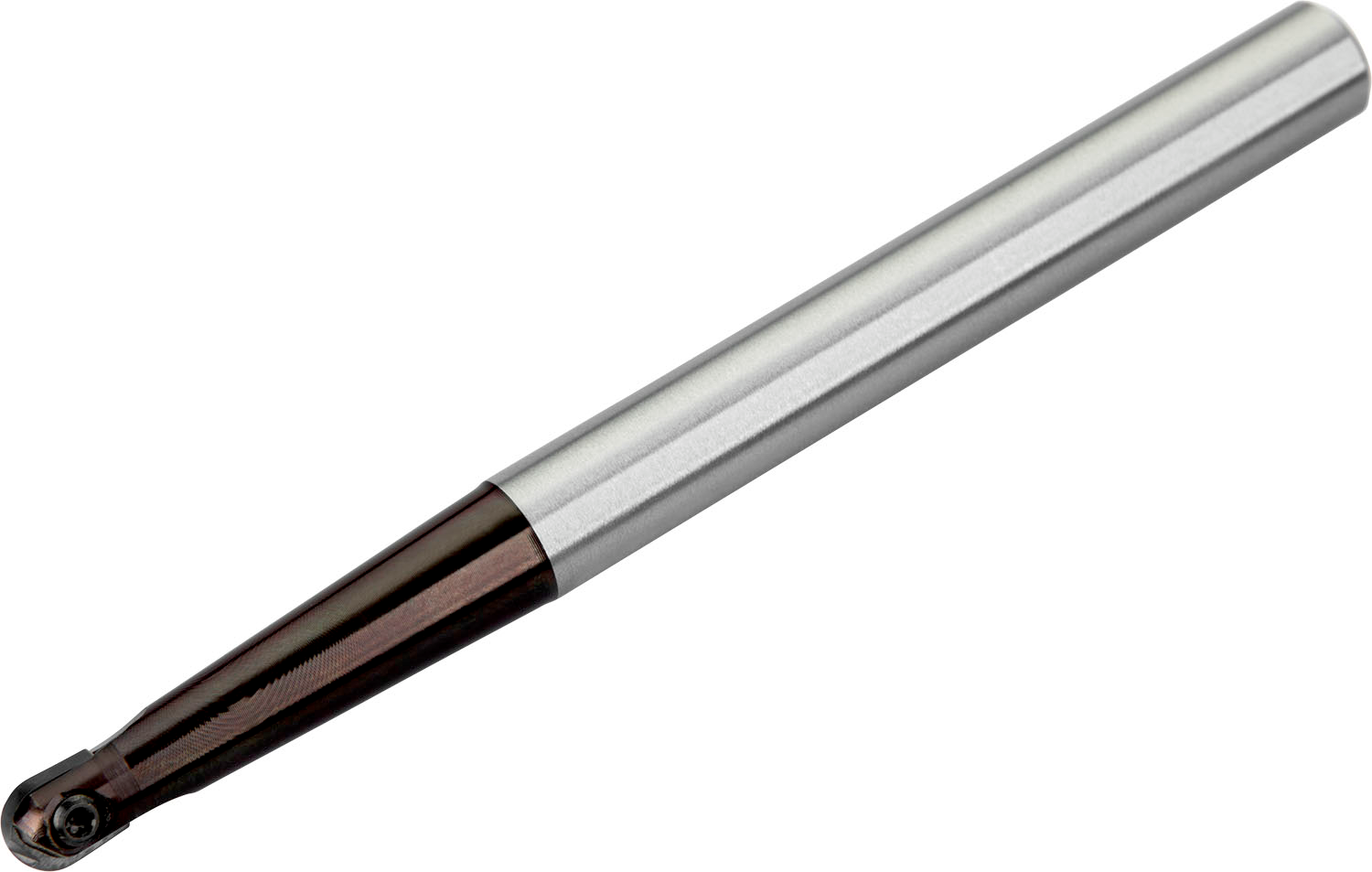

PRAMET 25E2R080B25-SZD09-C Milling Cutters – HFC

Product Code: 25E2R080B25-SZD09-C

$529.11$481.01 Ex. GST

Product Code: 25E2R080B25-SZD09-C SKU 25E2R080B25-SZD09-C Categories CUTTING TOOLS (HSS & Carbide), H5 - Mill Cutter HFC, Milling

PRAMET 25E2R080B25-SZD09-C Milling Cutters - HFC

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High feed cutter with positve/negative geometry which utilises 2 of ZDCW 09T3.. single-sided inserts, cutting diameter 25mm with 25mm Weldon shank according to DIN 1835B, 140mm overall length, through coolant for face milling

Additional information

Weight	0.5137 kg
Dimensions
barcode
Additional Information	Description: Value EAN number: 3603602950406 Product number (SAP): 86036881 Ordering code ANSI: 25E2R080B25-SZD09-C Product Line: FEED ZD Gross weight – grams: 462.2 Cutting diameter maximum – millimeter (DCX): 25 mm Cutting diameter – millimeter (DC): 11.6 mm Overall length – millimeter (OAL): 140 mm Connection diameter – millimeter (DCON MS): 25 mm Usable Length – millimeter (LU): 80 mm Radial rake angle (GAMF): -6 Axial rake angle (GAMP): 10 Peripheral effective cutting edge count (ZEFP): 2 Rotational speed maximum (RPMX): 22800 Net weight – grams: 460.9 Cutter Design: SZD09 Insert index count (NOI): 2 ISO: 25E2R080B25-SZD09-C

Brand

PRAMET
