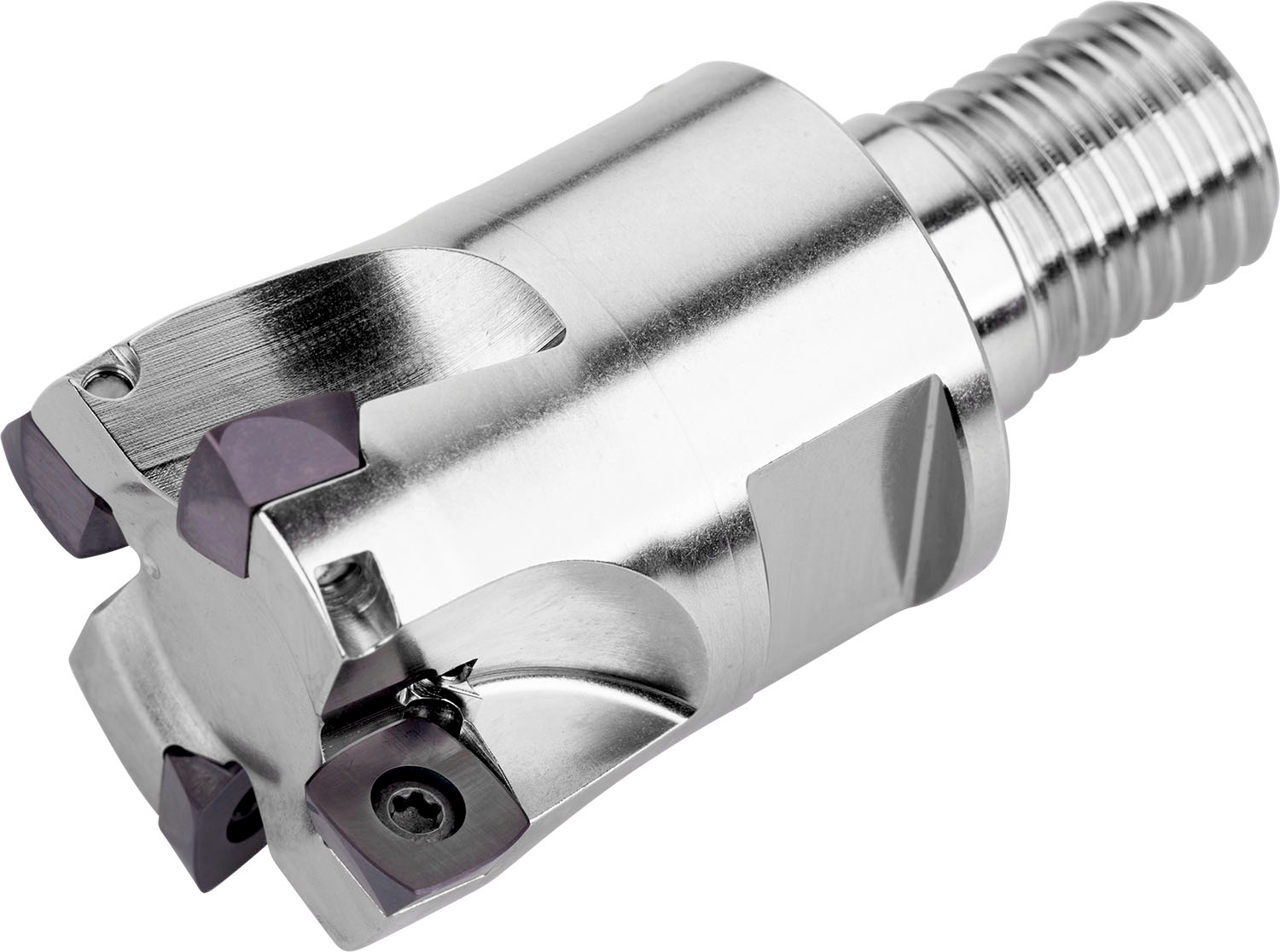

PRAMET 25E3R032M12-SZD09-C Milling Cutters – HFC

Product Code: 25E3R032M12-SZD09-C

$559.70$508.82 Ex. GST

Product Code: 25E3R032M12-SZD09-C SKU 25E3R032M12-SZD09-C Categories CUTTING TOOLS (HSS & Carbide), H5 - Mill Cutter HFC, Milling

PRAMET 25E3R032M12-SZD09-C Milling Cutters - HFC

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

High feed cutter with positve/negative geometry which utilises 3 of ZDCW 09T3.. single-sided inserts, cutting diameter 25mm with M12 threaded shank for standard modular tool-holders, 32mm protrusion length, through coolant for face milling

Additional information

Weight	0.5434 kg
Dimensions	Length 5.4cm x Width cm x Depth cm
barcode
Additional Information	Description: Value EAN number: 3603602950215 Product number (SAP): 86036880 Ordering code ANSI: 25E3R032M12-SZD09-C Product Line: FEED ZD Gross weight – grams: 108.4 Cutting diameter maximum – millimeter (DCX): 25 mm Cutting diameter – millimeter (DC): 11.6 mm Overall length – millimeter (OAL): 54 mm Connection diameter – millimeter (DCON MS): 12.5 mm Functional length – millimeter (LF): 32 mm Thread diameter size (TDZ): M12 Radial rake angle (GAMF): -6 Axial rake angle (GAMP): 10 Peripheral effective cutting edge count (ZEFP): 3 Net weight – grams: 107.5 Cutter Design: SZD09 Insert index count (NOI): 3 ISO: 25E3R032M12-SZD09-C

Brand

PRAMET
