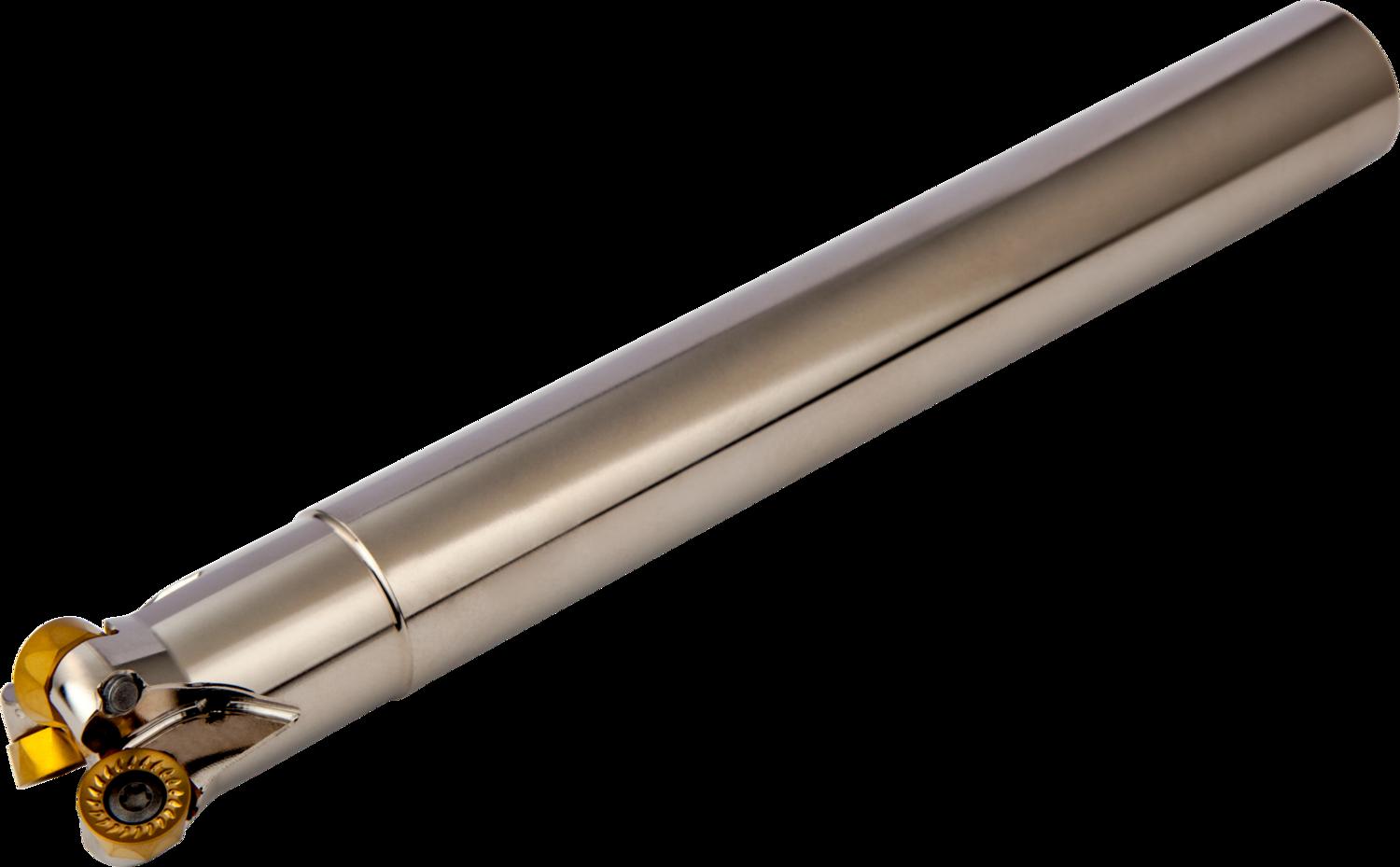

PRAMET 25E3R034A20-SRC10-C Milling cutters for D&M

Product Code: 25E3R034A20-SRC10-C

$453.20$412.00 Ex. GST

Product Code: 25E3R034A20-SRC10-C SKU 25E3R034A20-SRC10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with double negative geometry which utilises 3 of RCMT 10T3MO.. single-sided inserts, cutting diameter 25mm with 20mm parallel shank according to DIN 1835A, 34mm functional and 170mm overall length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.44 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603372047
Product number (SAP): 86033351
Ordering code ANSI: 25E3R034A20-SRC10-C
Gross weight – grams: 392.1
Cutting diameter maximum – millimeter (DCX): 25 mm
Cutting diameter – millimeter (DC): 15 mm
Overall length – millimeter (OAL): 170 mm
Connection diameter – millimeter (DCON MS): 20 mm
Usable Length – millimeter (LU): 34 mm
Radial rake angle (GAMF): -3
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 20900
Net weight – grams: 357
Cutter Design: SRC10
Insert index count (NOI): 3
ISO: 25E3R034A20-SRC10-C

Brand

PRAMET
