PRAMET 25E4R100A25-SBN10-C Carbide insert

Product Code: 25E4R100A25-SBN10-C

$607.29$552.08 Ex. GST

Product Code: 25E4R100A25-SBN10-C SKU 25E4R100A25-SBN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

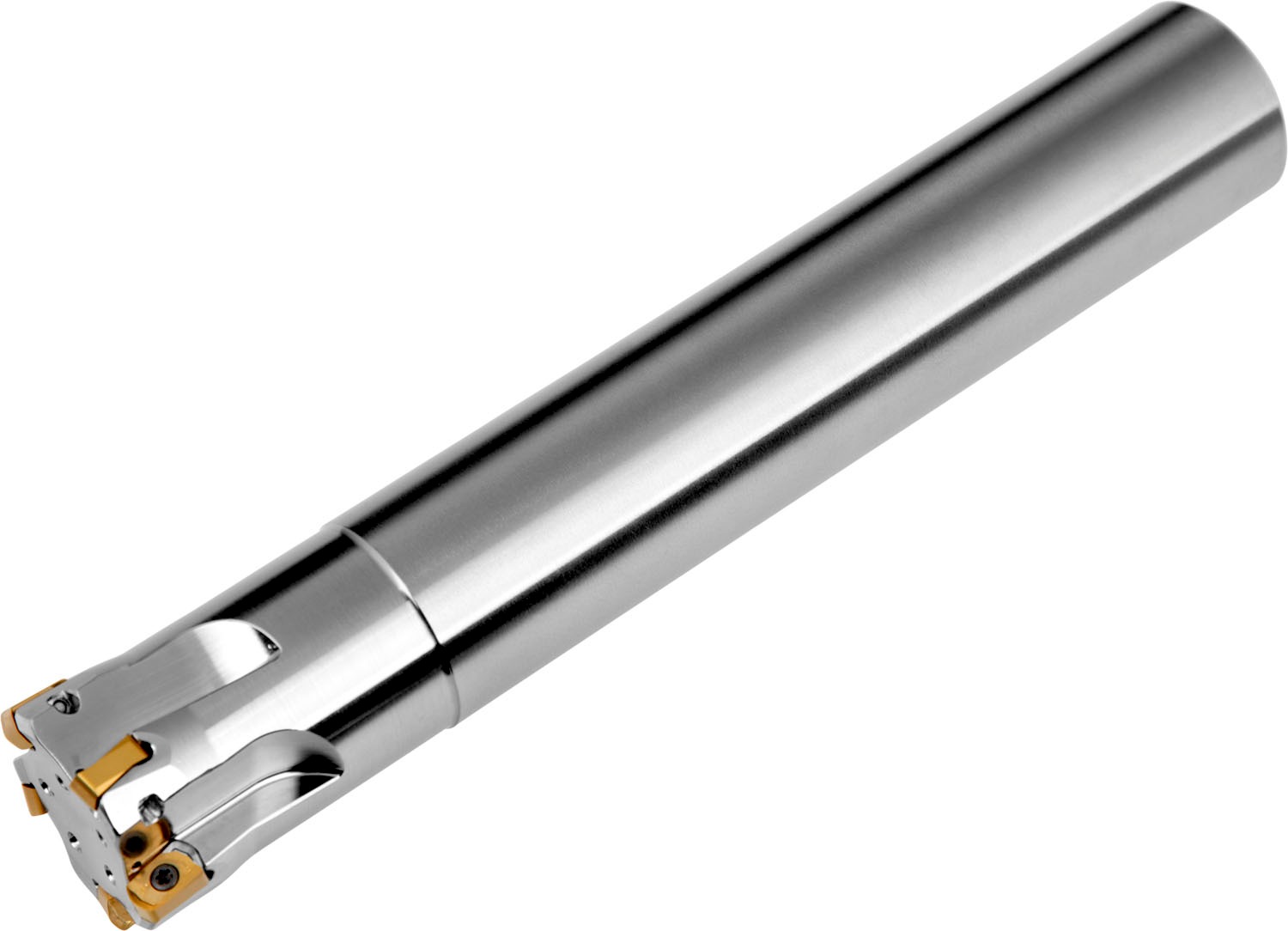

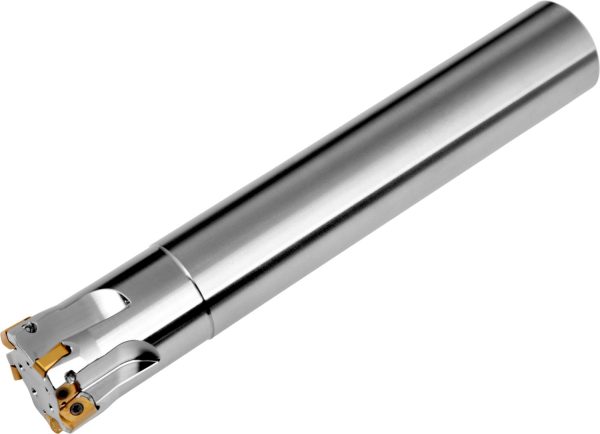

High feed cutter with double negative geometry which utilises 4 of BNGX 10T3.. or ANHX 10T3.. inserts, cutting diameter 25mm with 20° approach angle and 25mm parallel shank according to DIN 1835A, 100mm functional and 180mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0mm

Additional information

Weight 0.5896 kg
Dimensions Length 18cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603388109
Product number (SAP): 86033405
Ordering code ANSI: 25E4R100A25-SBN10-C
Gross weight – grams: 538.4
Cutting diameter maximum – millimeter (DCX): 25 mm
Cutting diameter – millimeter (DC): 18.4 mm
Overall length – millimeter (OAL): 180 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 100 mm
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 24800
Net weight – grams: 509
Cutter Design: SBN10
Insert index count (NOI): 4
ISO: 25E4R100A25-SBN10-C

Brand

PRAMET
