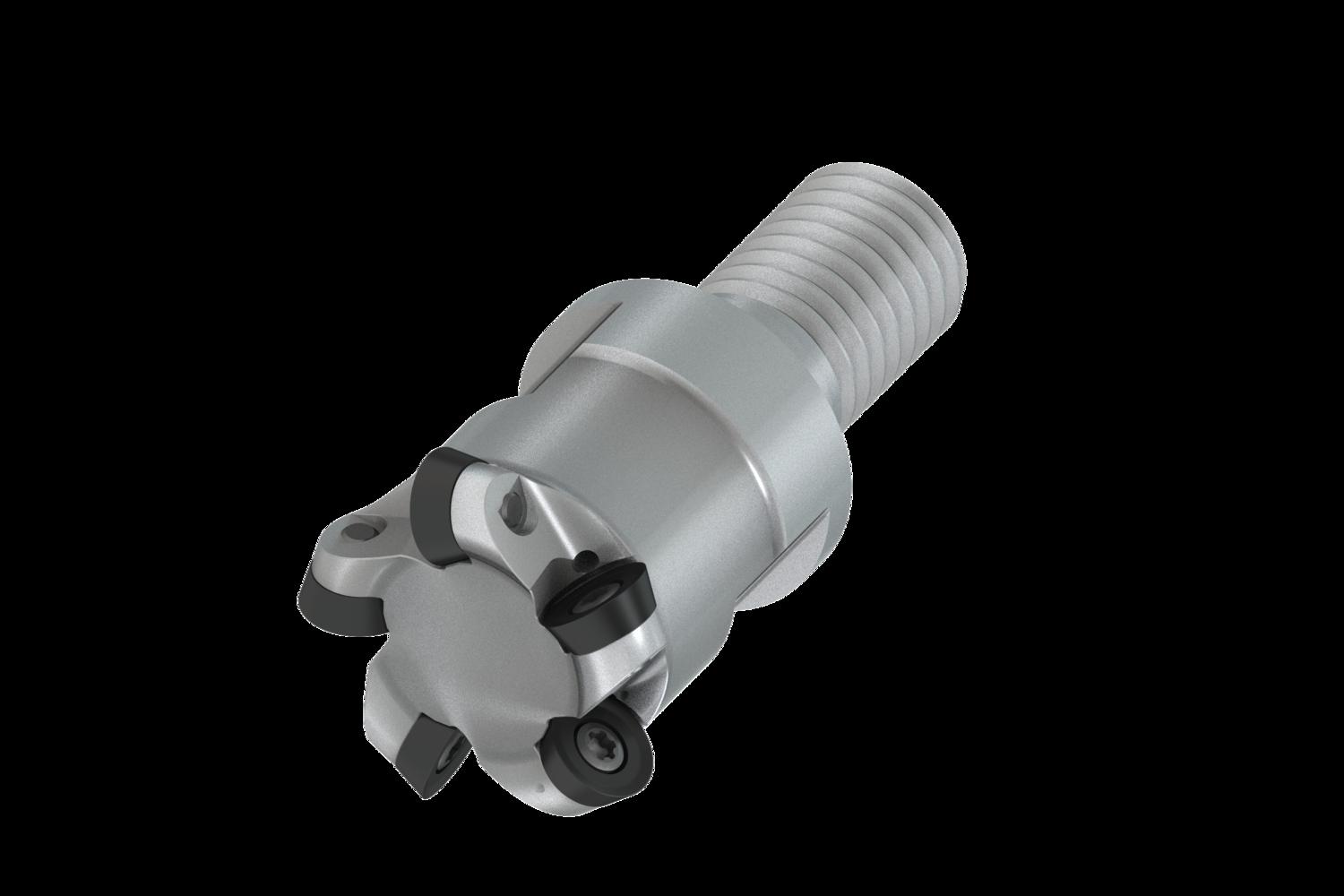

PRAMET 25E5R028M12-SRD07-CF Milling cutters for D&M

Product Code: 25E5R028M12-SRD07-CF

$478.13$434.66 Ex. GST

Product Code: 25E5R028M12-SRD07-CF SKU 25E5R028M12-SRD07-CF Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with double negative geometry which utilises 5 of RD.. 0702MO.. or RD.. 07T1MO.. single-sided inserts, cutting diameter to maximum 25mm with M12 threaded shank for standard modular tool-holders, 28mm functional and 50mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2mm

Additional information

Weight 0.4642 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603827929
Product number (SAP): 86037346
Ordering code ANSI: 25E5R028M12-SRD07-CF
Gross weight – grams: 94.4
Cutting diameter maximum – millimeter (DCX): 25 mm
Cutting diameter – millimeter (DC): 18 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Hub diameter – millimeter (DHUB): 21 mm
Functional length – millimeter (LF): 28 mm
Thread diameter size (TDZ): M12
Radial rake angle (GAMF): -2
Axial rake angle (GAMP): 0
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 34200
Net weight – grams: 94.4
Cutter Design: SRD07
Insert index count (NOI): 5
ISO: 25E5R028M12-SRD07-CF

Brand

PRAMET
