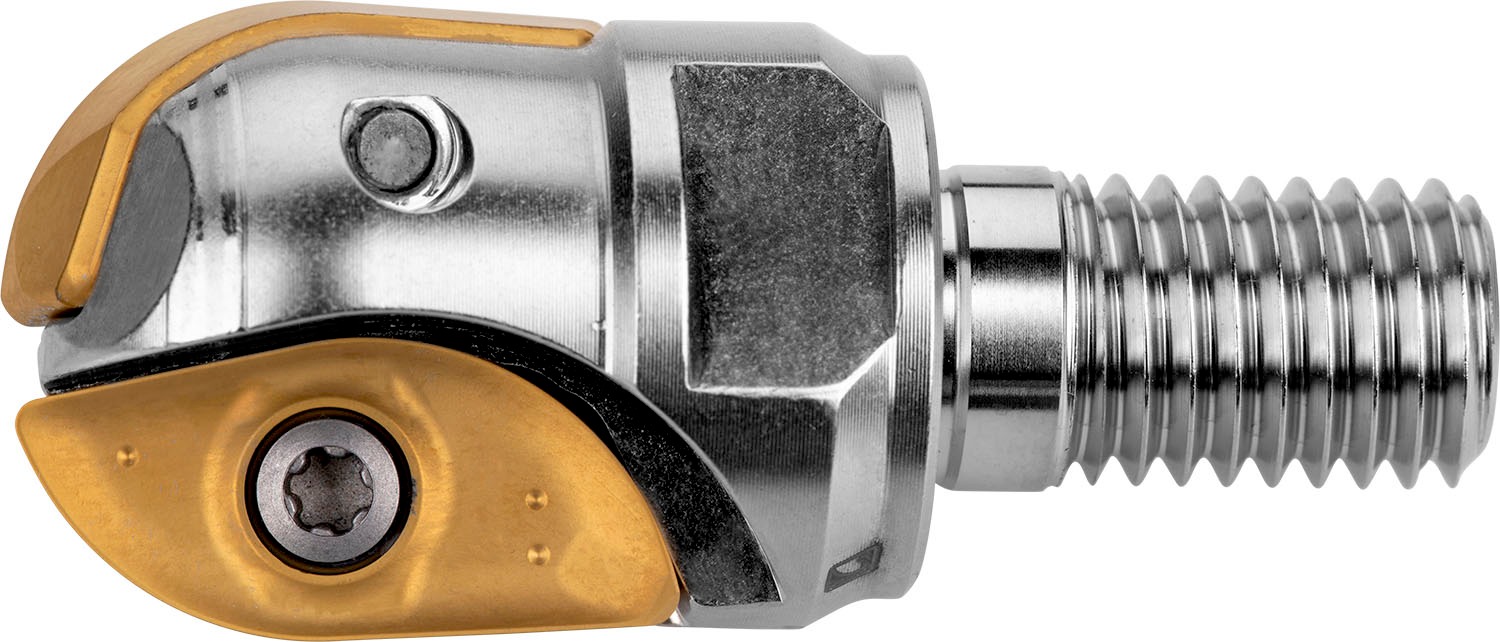

PRAMET 25L2R035M12-SZP25-C Milling cutters for D&M

Description: Value
EAN number: 3603602970114
Product number (SAP): 86007513
Ordering code ANSI: 25L2R035M12-SZP25-C
Gross weight – grams: 106.6

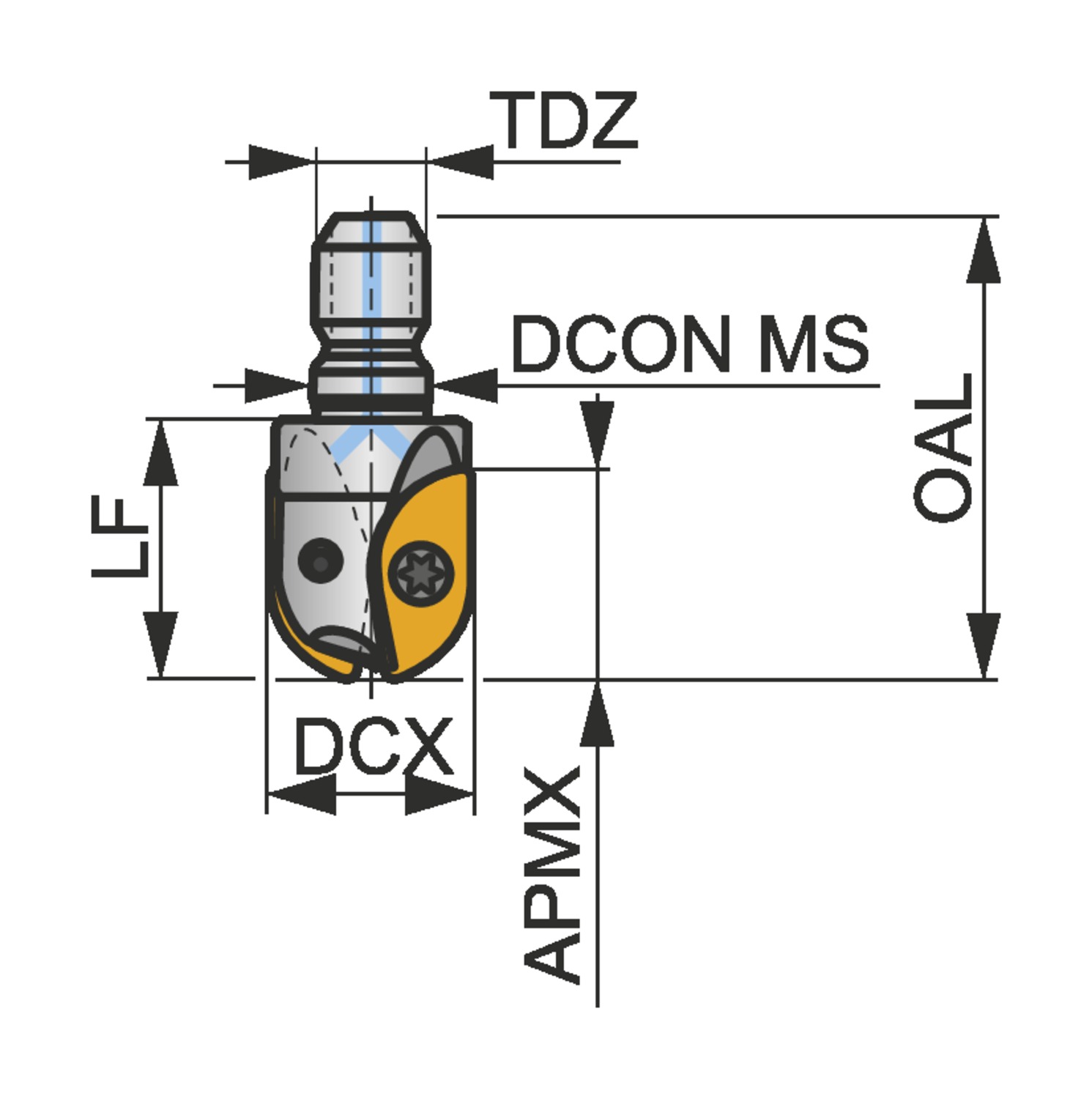

Cutting diameter maximum – millimeter (DCX): 25 mm
Connection diameter – millimeter (DCON MS): 12.5 mm
Functional length – millimeter (LF): 35 mm
Thread diameter size (TDZ): M12
Connection size code machine side (CZC MS): –
Depth of cut maximum – millimeter (APMX): 22.3 mm

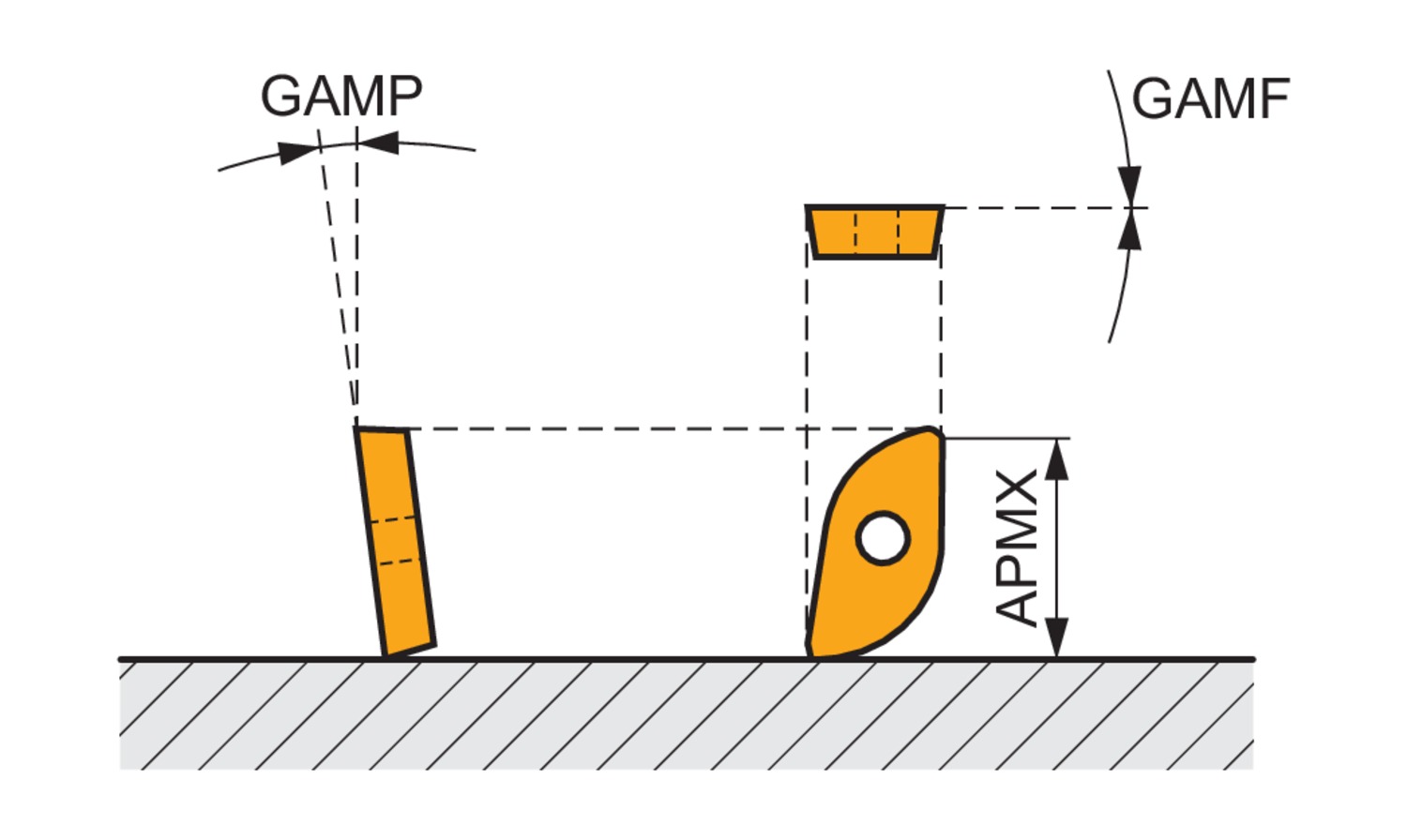

Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 90
Insert index count (NOI): 2
ISO: 25L2R035M12-SZP25-C
