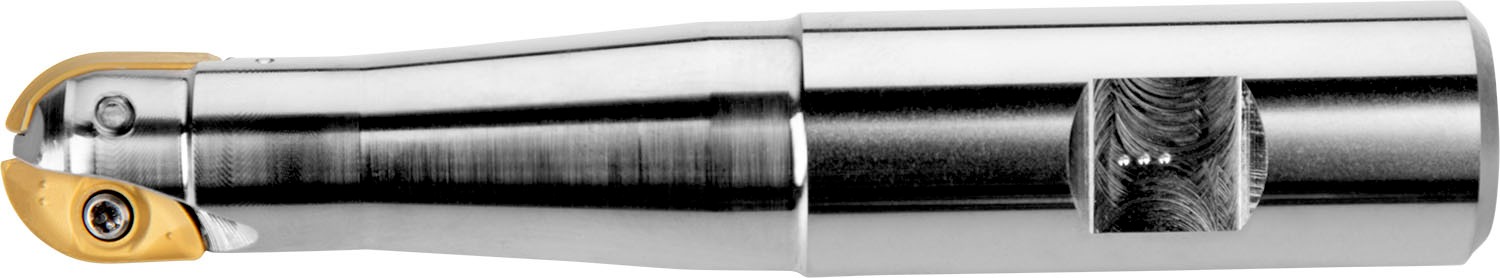

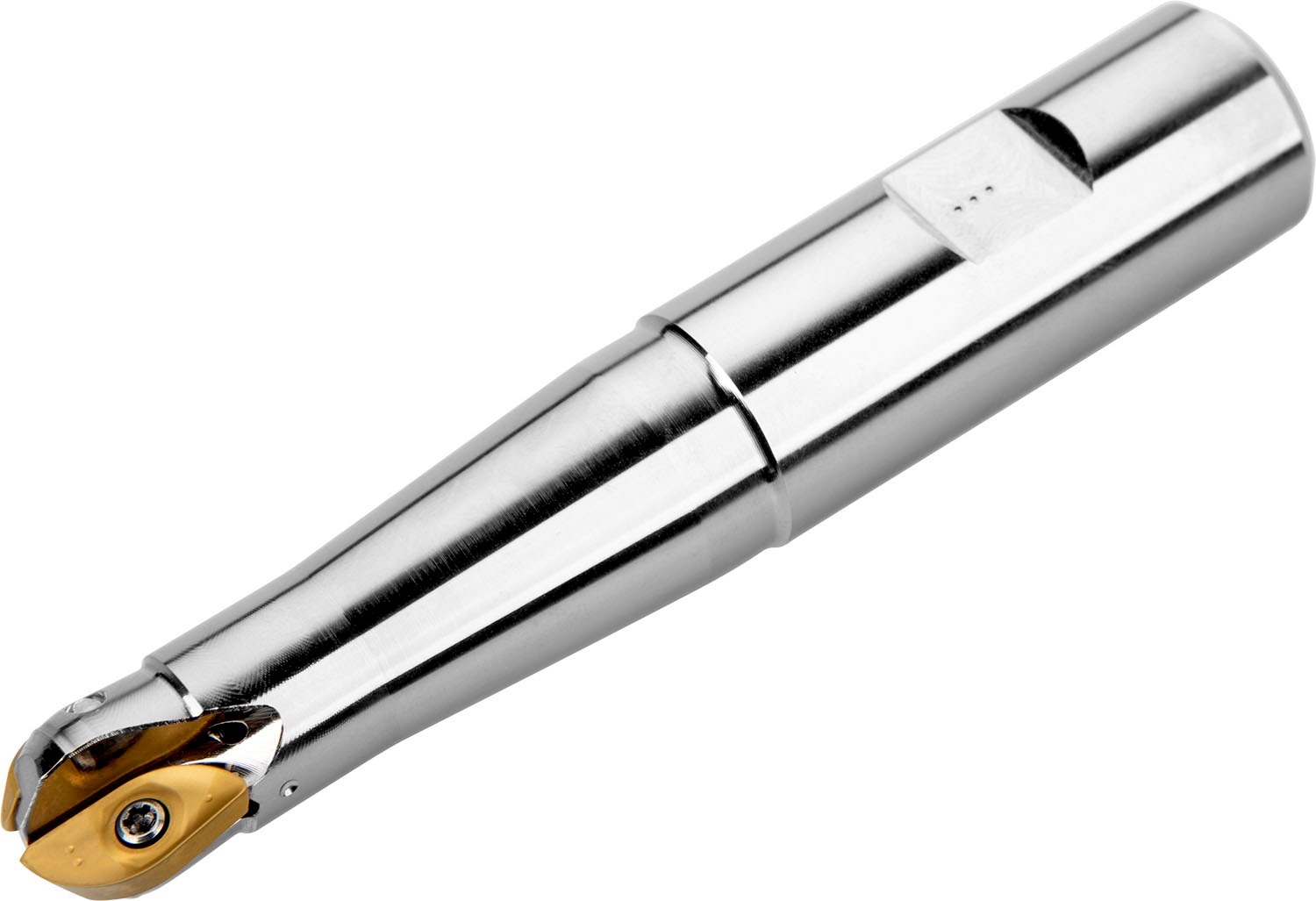

PRAMET 25L2R060B25-SZP25-C Milling cutters for D&M

Description: Value
EAN number: 3603602969859
Product number (SAP): 86007487
Ordering code ANSI: 25L2R060B25-SZP25-C
Gross weight – grams: 357.7

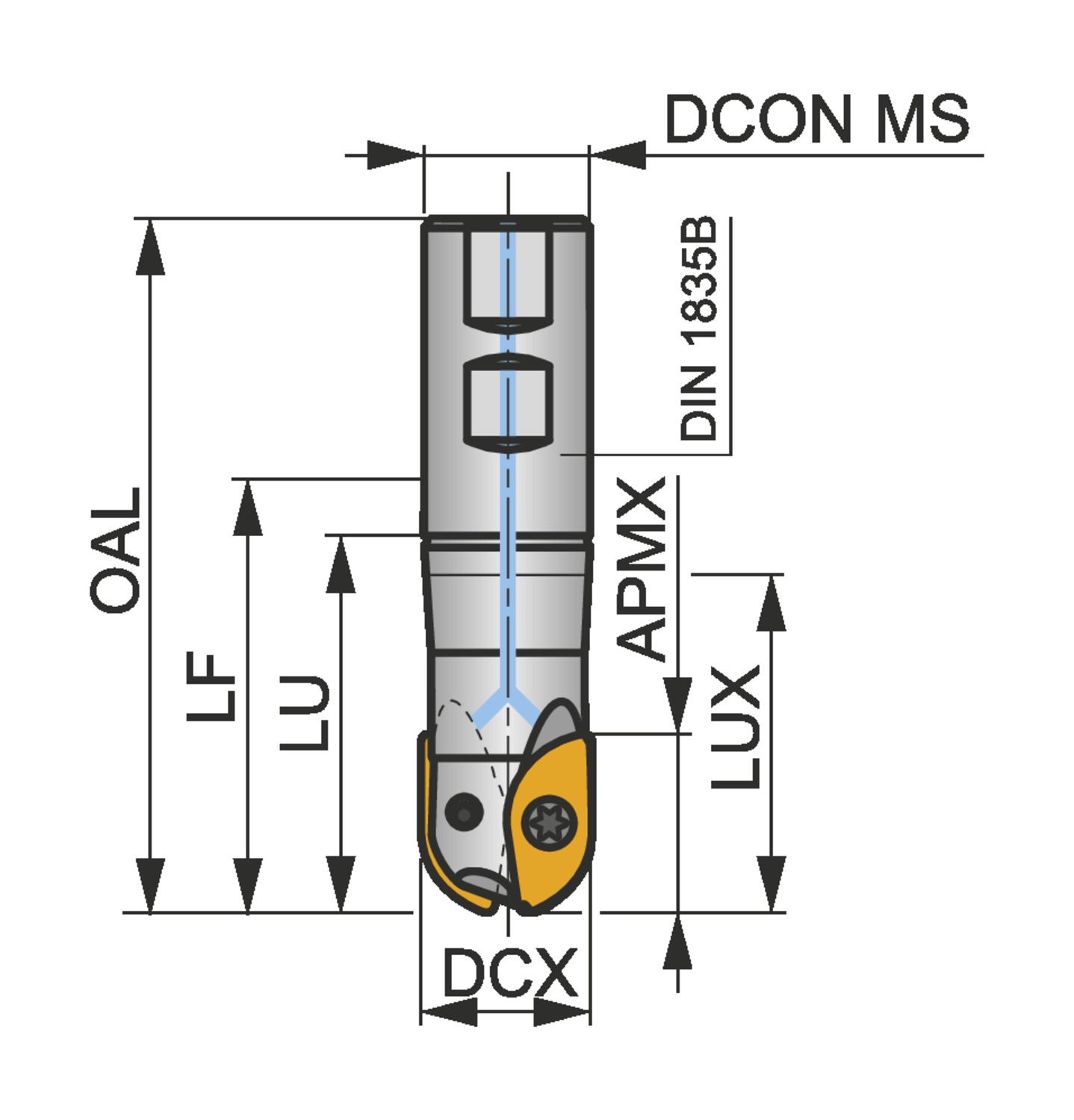

Cutting diameter maximum – millimeter (DCX): 25 mm
Overall length – millimeter (OAL): 117 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 60 mm
Functional length – millimeter (LF): 85.5 mm
Connection size code machine side (CZC MS): –
Depth of cut maximum – millimeter (APMX): 22.3 mm

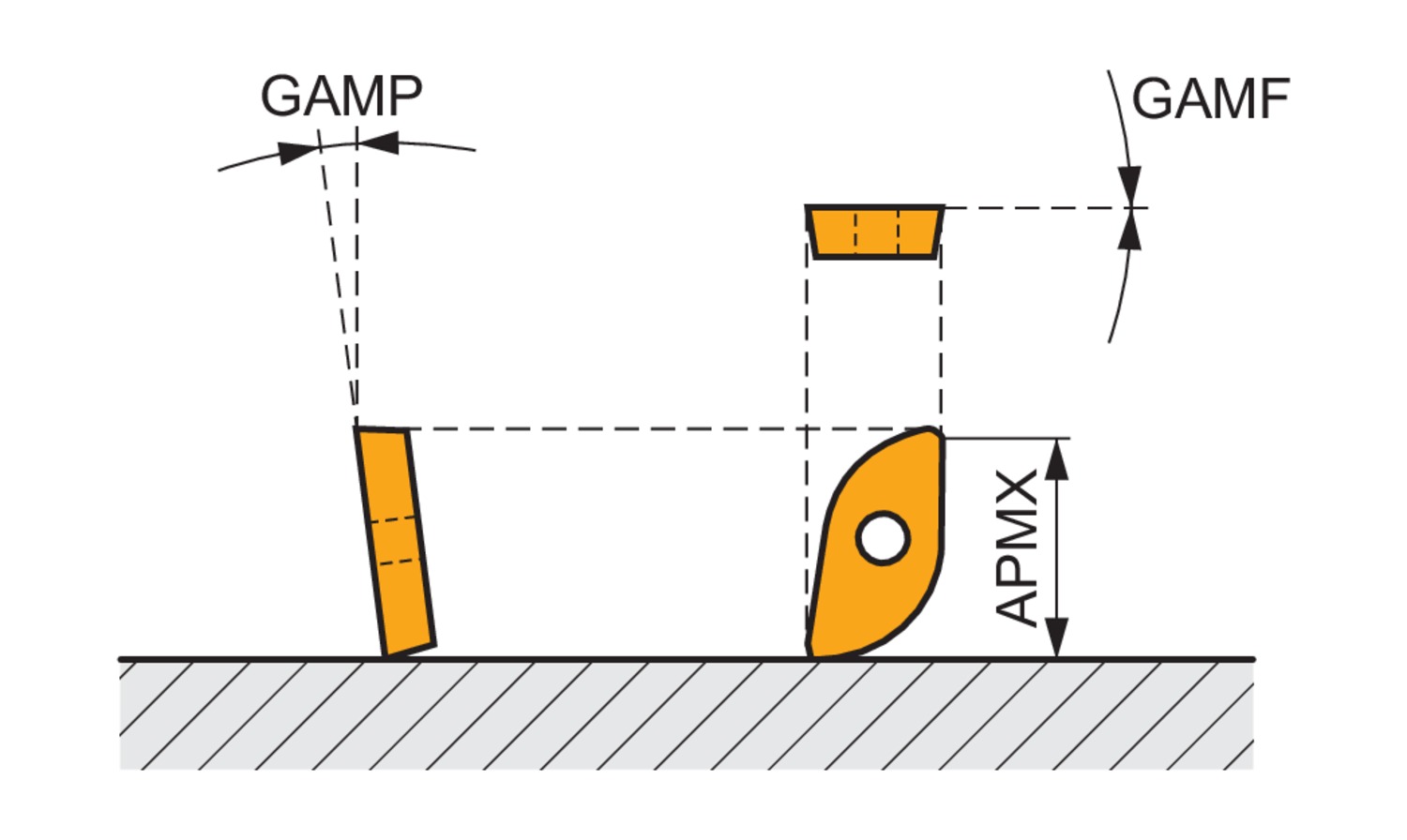

Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 24000
Net weight – grams: 335
Insert index count (NOI): 2
ISO: 25L2R060B25-SZP25-C
