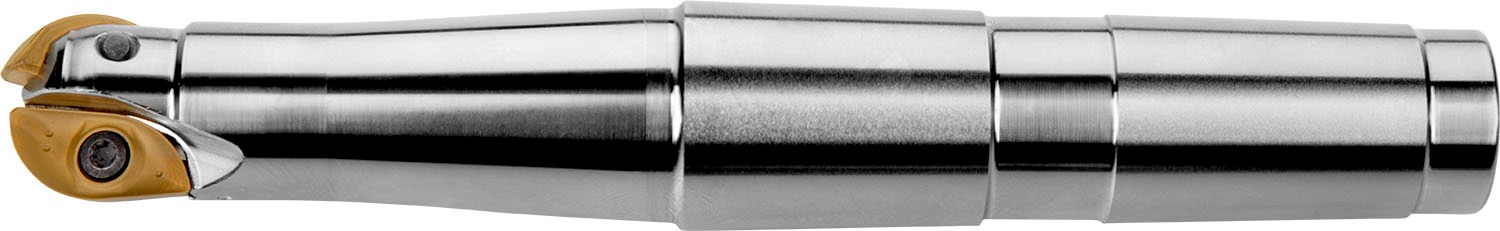

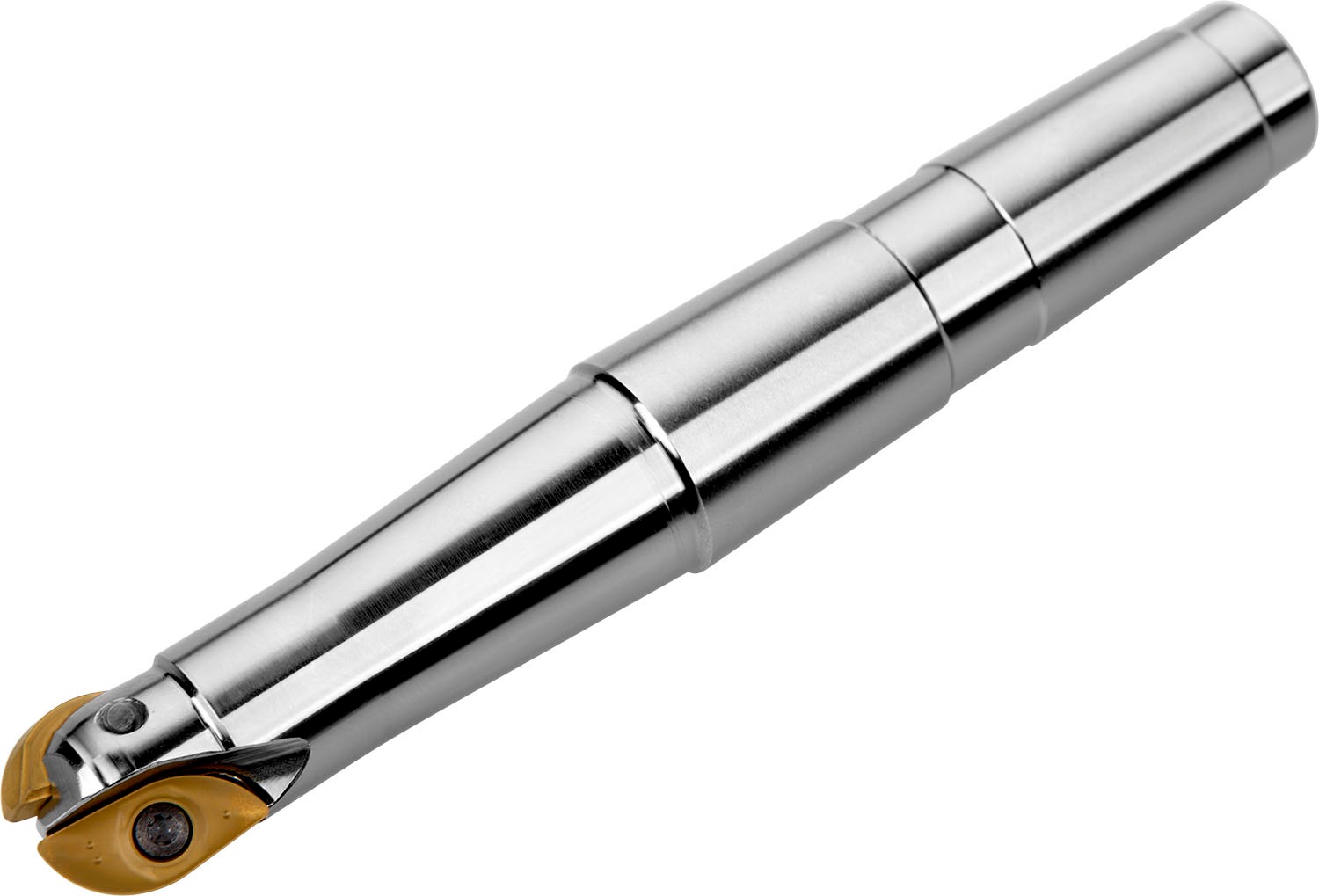

PRAMET 25L2R080E03-SZP25 Milling cutters for D&M

Description: Value
EAN number: 3603602970022
Product number (SAP): 86007504
Ordering code ANSI: 25L2R080E03-SZP25
Gross weight – grams: 440.9

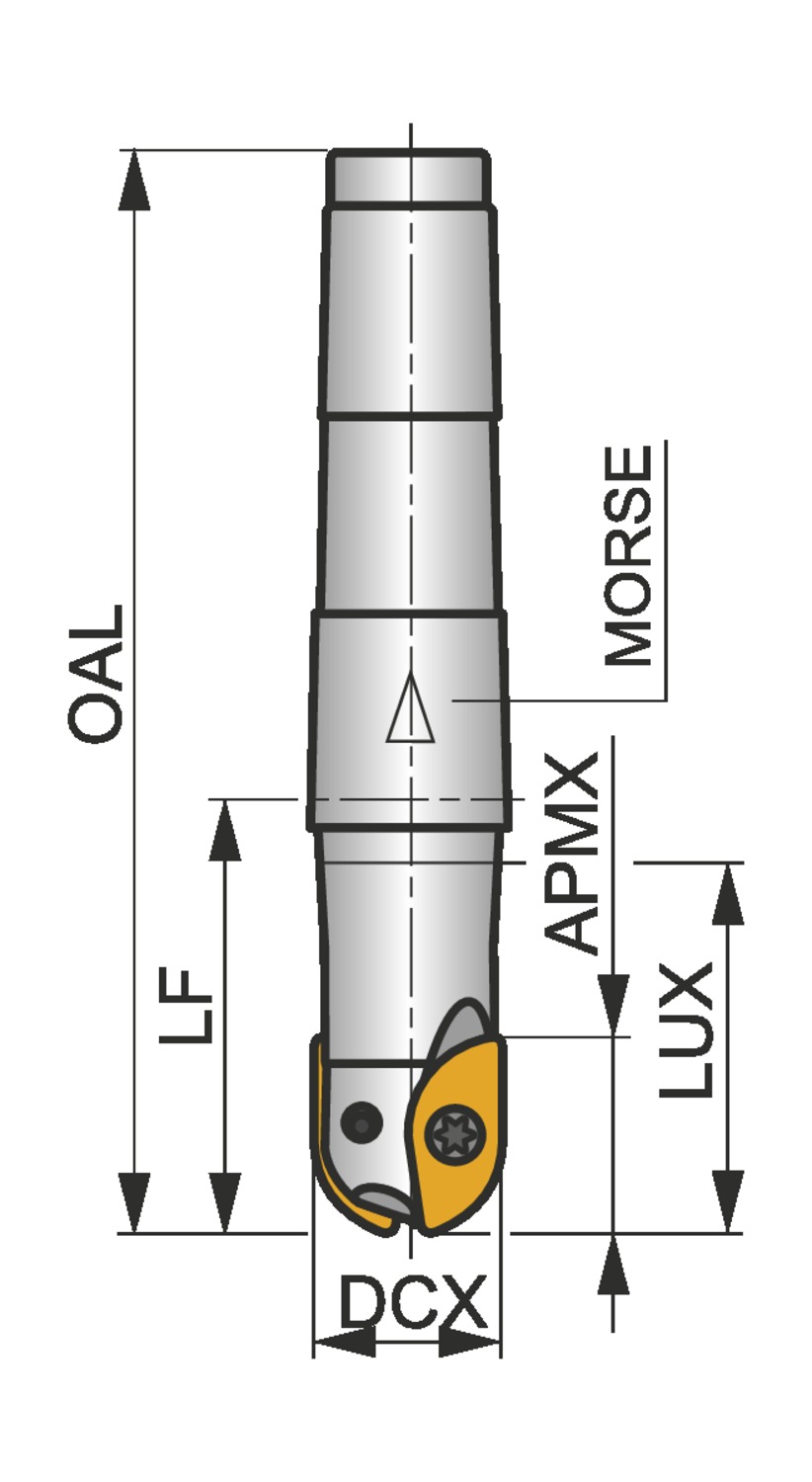

Cutting diameter maximum – millimeter (DCX): 25 mm
Overall length – millimeter (OAL): 161 mm
Functional length – millimeter (LF): 80 mm
Connection size code machine side (CZC MS): 3
Depth of cut maximum – millimeter (APMX): 22.3 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 24000
Net weight – grams: 440.9
Insert index count (NOI): 2
ISO: 25L2R080E03-SZP25
