$642.41$584.01 Ex. GST

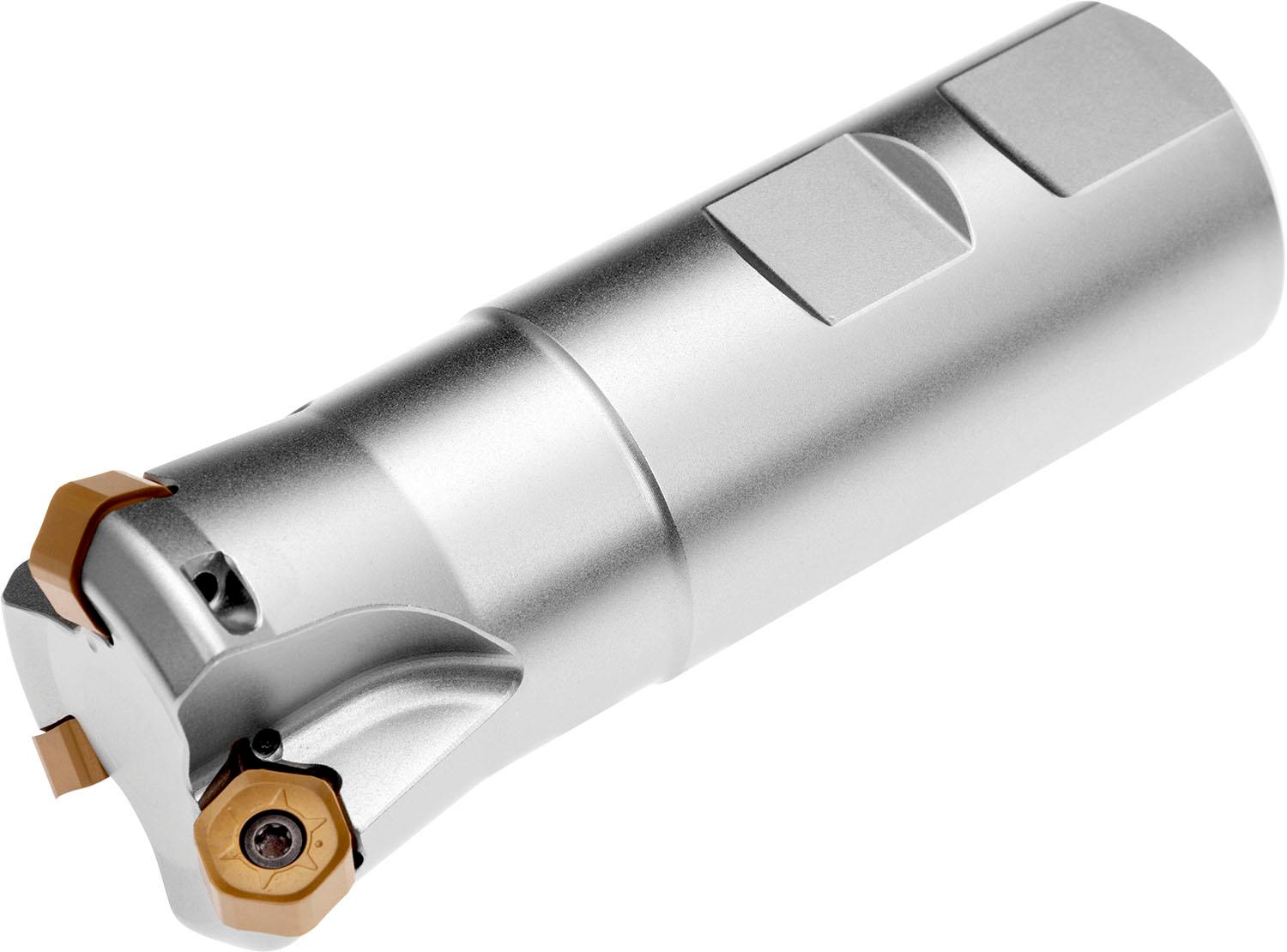

Face mill with double negative geometry which utilises 2 of HNGX 0604AN.. or XNGX 0604AN.. double-sided inserts, cutting diameter 25 to maximum 32.2mm with 45° approach angle and 25mm Weldon shank according to DIN 1835B, 42mm functional and 99mm overall length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 3.0mm
| Weight | 0.6237 kg |
|---|---|
| Dimensions | |
| barcode | |
| Additional Information | Description: Value |
