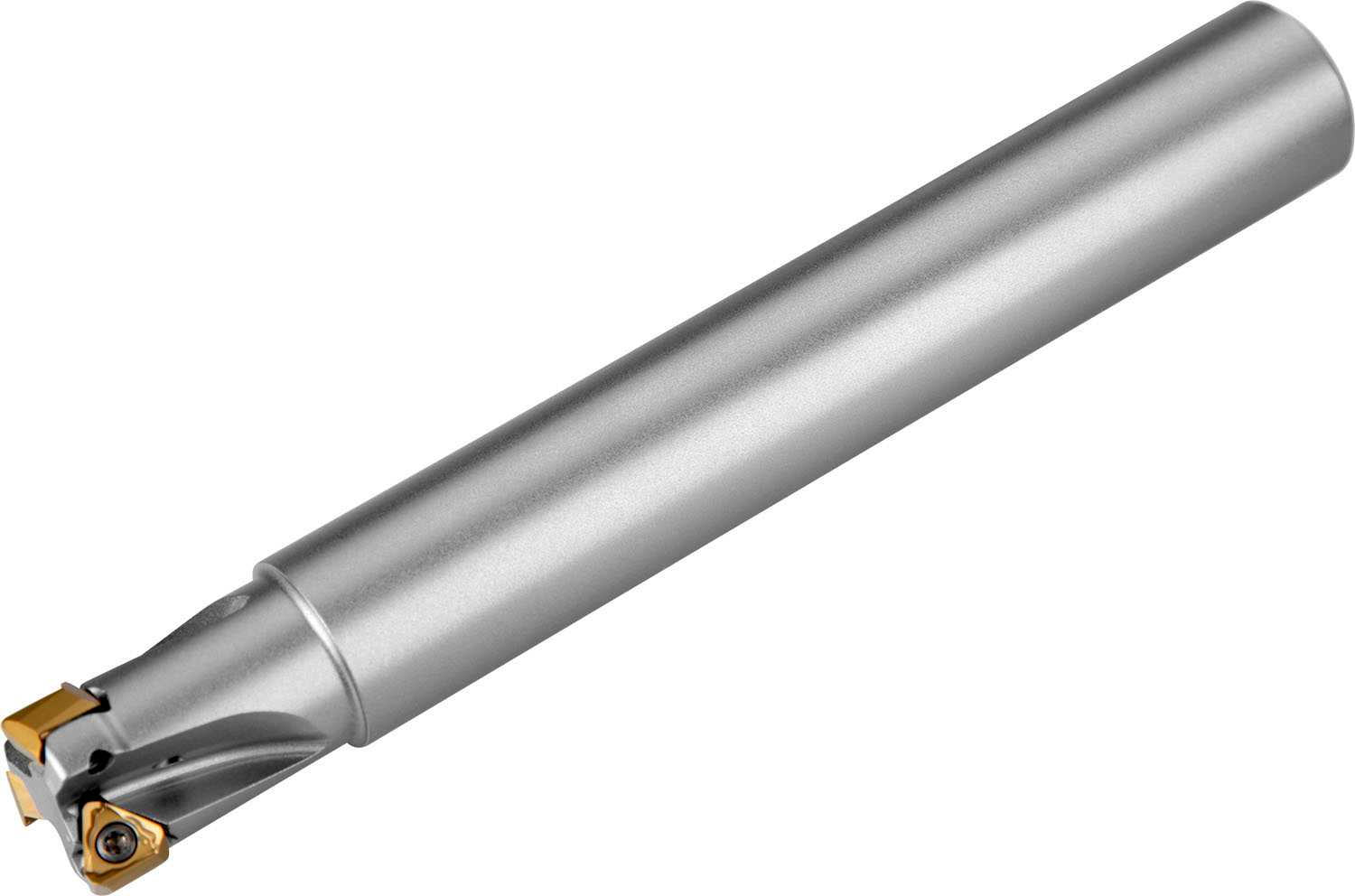

PRAMET 30A4R050A32-STN10-C Milling cutters with clamping by screw

Product Code: 30A4R050A32-STN10-C

$631.08$573.71 Ex. GST

Product Code: 30A4R050A32-STN10-C SKU 30A4R050A32-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 4 of TNGX 1004.. double-sided inserts, cutting diameter 30mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 50mm functional and 200mm overall length, through coolant and differential pitch for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.6127 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603173132
Product number (SAP): 86027484
Ordering code ANSI: 30A4R050A32-STN10-C
Product Line: ECON TN
Gross weight – grams: 1059.5
Cutting diameter – millimeter (DC): 30 mm
Overall length – millimeter (OAL): 200 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 50 mm
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 22500
Net weight – grams: 1059.5
Cutter Design: STN10
Insert index count (NOI): 4
ISO: 30A4R050A32-STN10-C

Brand

PRAMET
