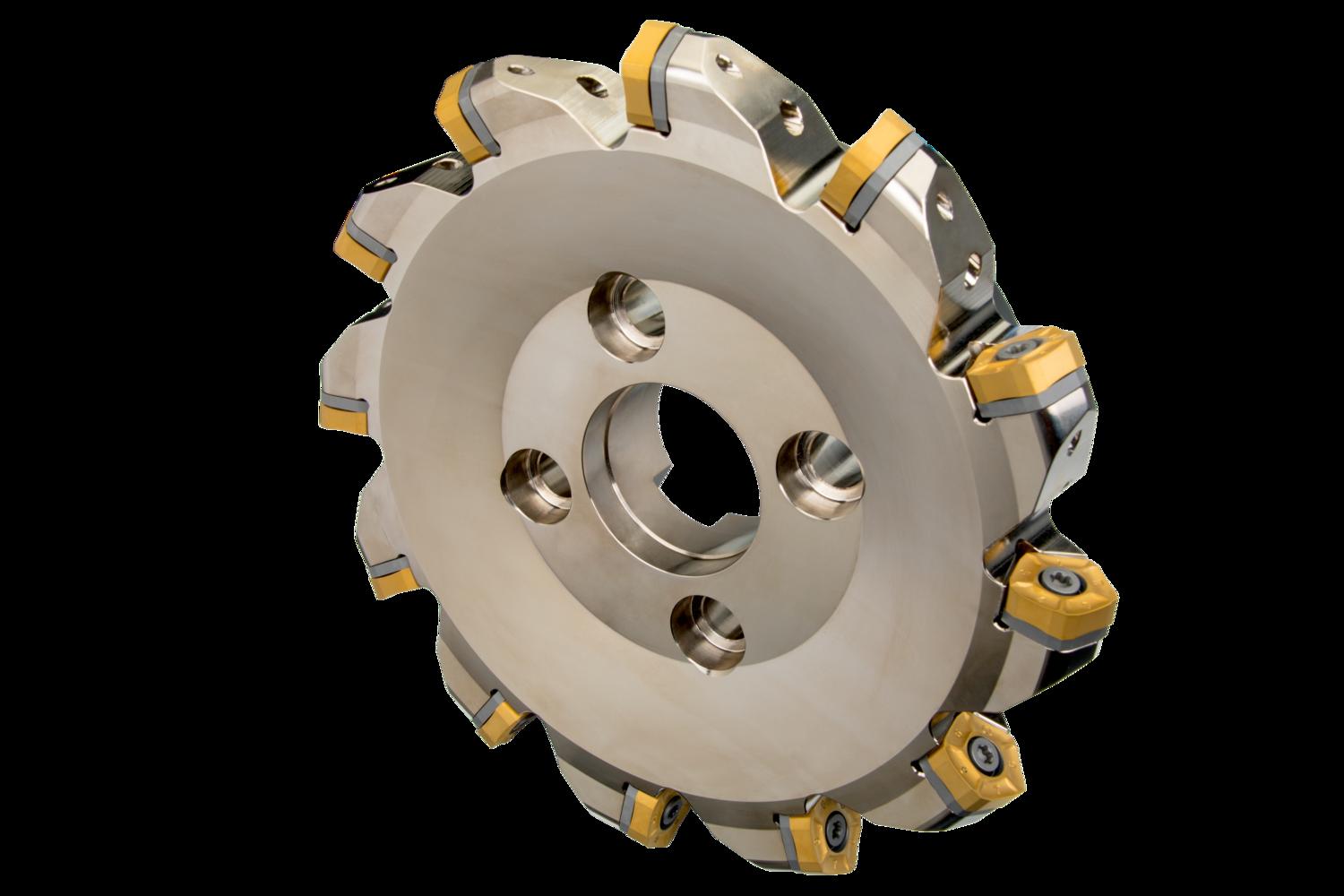

PRAMET 315C14R-S57PN13 Milling cutters with clamping by screw

Description: Value
EAN number: 3603602970237
Product number (SAP): 86007570
Ordering code ANSI: 315C14R-S57PN13
Product Line: PENTA HD
Gross weight – grams: 29170
Cutting diameter – millimeter (DC): 315 mm
Cutting diameter maximum – millimeter (DCX): 330.8 mm
Functional length – millimeter (LF): 80 mm
Connection diameter – millimeter (DCON MS): 60 mm
Diameter bolt circle 1 – millimeter (DBC1): 101.6 mm
Diameter bolt circle 2 – millimeter (DBC2): 177.8 mm
Keyway width – millimeter (KWW): 25.7 mm
Keyway depth – millimeter (KWD): 14 mm
Radial rake angle (GAMF): -5
Axial rake angle (GAMP): -4
Peripheral effective cutting edge count (ZEFP): 14
Rotational speed maximum (RPMX): 1900
Net weight – grams: 29170
Cutter Design: SPN13
Insert index count (NOI): 14
ISO: 315C14R-S57PN13
