Description: Value
EAN number: 3603603844612
Product number (SAP): 86037893
Ordering code ANSI: 32A2R034A32-STN16-C
Product Line: ECON TN
Gross weight – grams: 1053

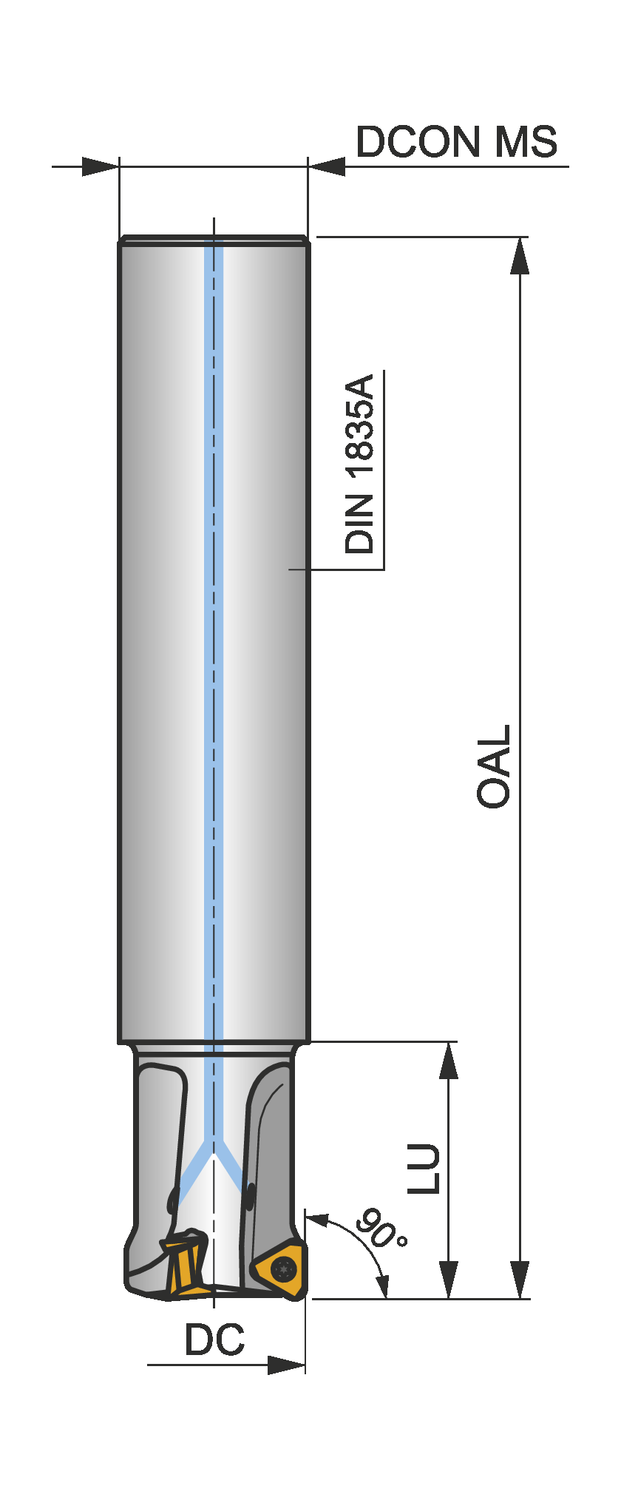

Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 195 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 34 mm

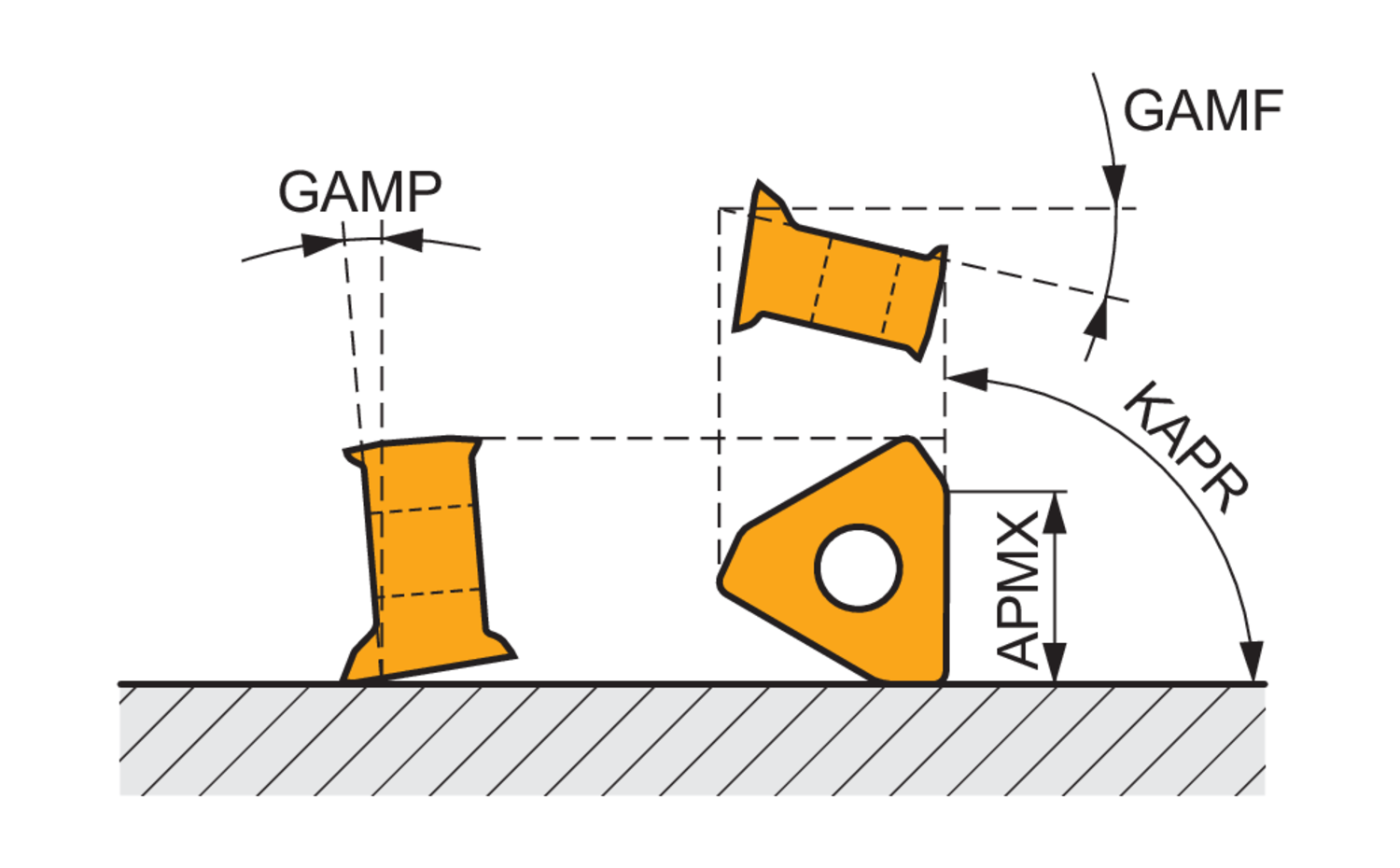

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 17500
Net weight – grams: 1053
Cutter Design: STN16
Insert index count (NOI): 2
ISO: 32A2R034A32-STN16-C
|
