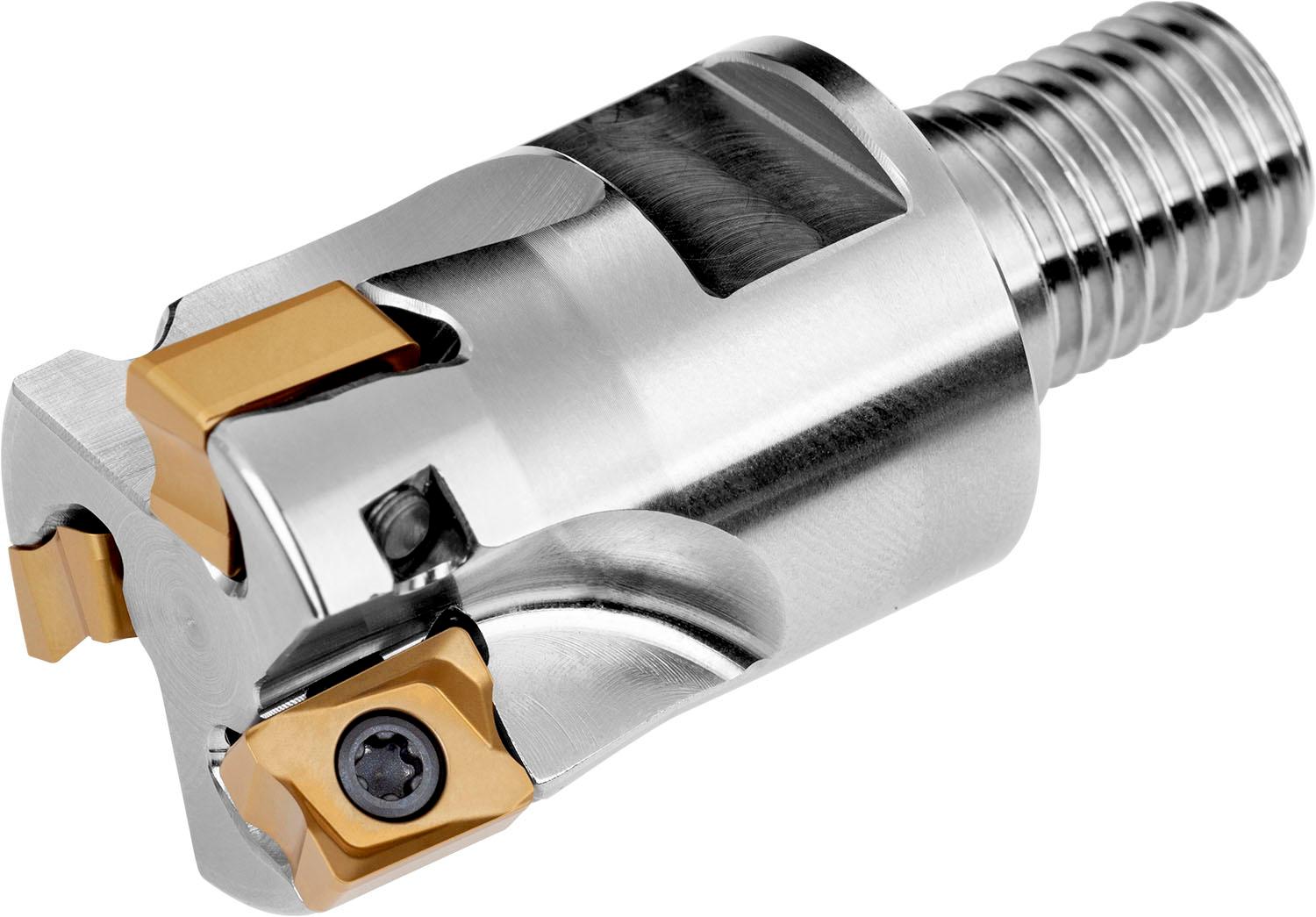

PRAMET 32A2R043M16-SLN12-C Milling cutters with clamping by screw

Product Code: 32A2R043M16-SLN12-C

$576.70$524.27 Ex. GST

Product Code: 32A2R043M16-SLN12-C SKU 32A2R043M16-SLN12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 2 of LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5599 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602956491
Product number (SAP): 86001152
Ordering code ANSI: 32A2R043M16-SLN12-C
Product Line: ECON LN
Gross weight – grams: 236
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 43 mm
Thread diameter size (TDZ): –
Radial rake angle (GAMF): -15
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 220
Cutter Design: SLN12
Insert index count (NOI): 2
ISO: 32A2R043M16-SLN12-C

Brand

PRAMET
