PRAMET 32A2R045A25-SVC22C Milling cutters with clamping by screw

Product Code: 32A2R045A25-SVC22C

$778.37$707.61 Ex. GST

Product Code: 32A2R045A25-SVC22C SKU 32A2R045A25-SVC22C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

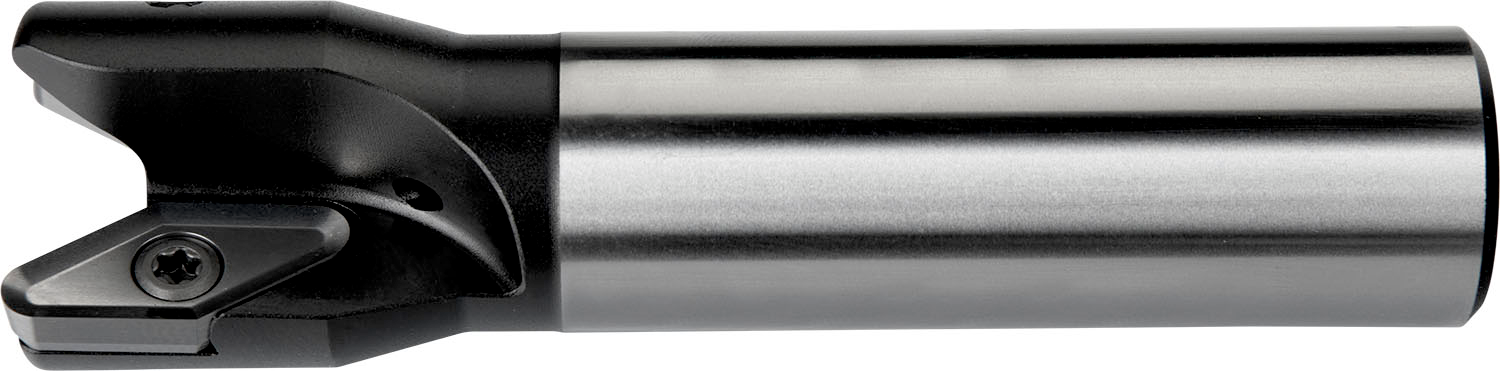

End mill with double positive geometry which utilises 2 of VCGT 220530F-FA single-sided inserts, cutting diameter 32mm with 90° approach angle and 25mm parallel shank according to DIN 1835A, 120mm overall length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm

Additional information

Weight 0.7557 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602933454
Product number (SAP): 84003838
Ordering code ANSI: 32A2R045A25-SVC22C
Gross weight – grams: 514.2
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 120 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 45 mm
Radial rake angle (GAMF): 4
Axial rake angle (GAMP): 3
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 10400
Net weight – grams: 460
Cutter Design: SVC22C
Insert index count (NOI): 2
ISO: 32A2R045A25-SVC22C

Brand

PRAMET
