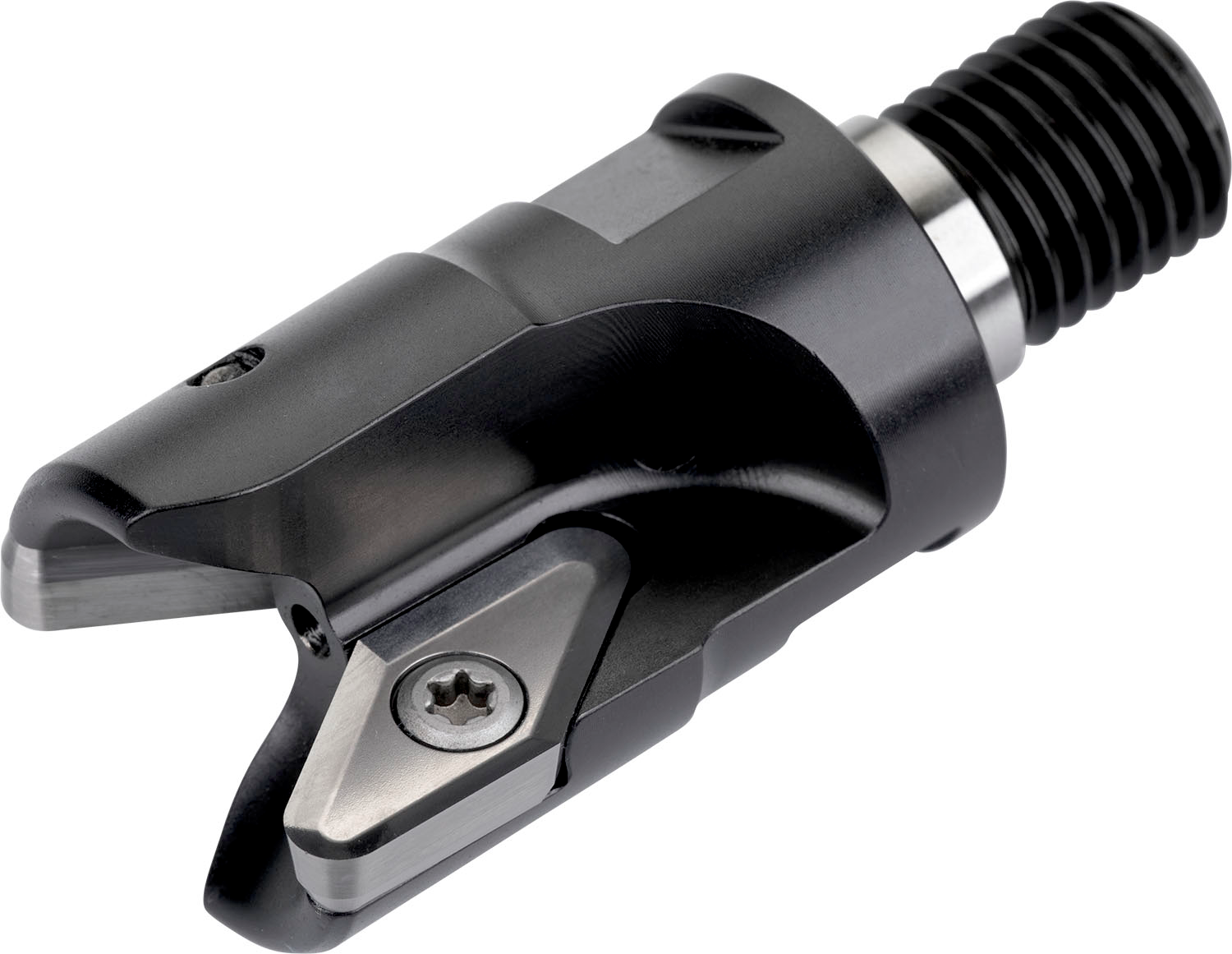

PRAMET 32A2R048M16-SVC22C Milling cutters with clamping by screw

Product Code: 32A2R048M16-SVC22C

$654.87$595.34 Ex. GST

Product Code: 32A2R048M16-SVC22C SKU 32A2R048M16-SVC22C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

End mill with double positive geometry which utilises 2 of VCGT 220530F-FA single-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 48mm protrusion length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0)mm

Additional information

Weight 0.6358 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602933409
Product number (SAP): 84003833
Ordering code ANSI: 32A2R048M16-SVC22C
Gross weight – grams: 202.8
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 71 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 48 mm
Hub diameter – millimeter (DHUB): 29 mm
Thread diameter size (TDZ): M16
Radial rake angle (GAMF): 11
Axial rake angle (GAMP): 3
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 170
Cutter Design: SVC22C
Insert index count (NOI): 2
ISO: 32A2R048M16-SVC22C

Brand

PRAMET
