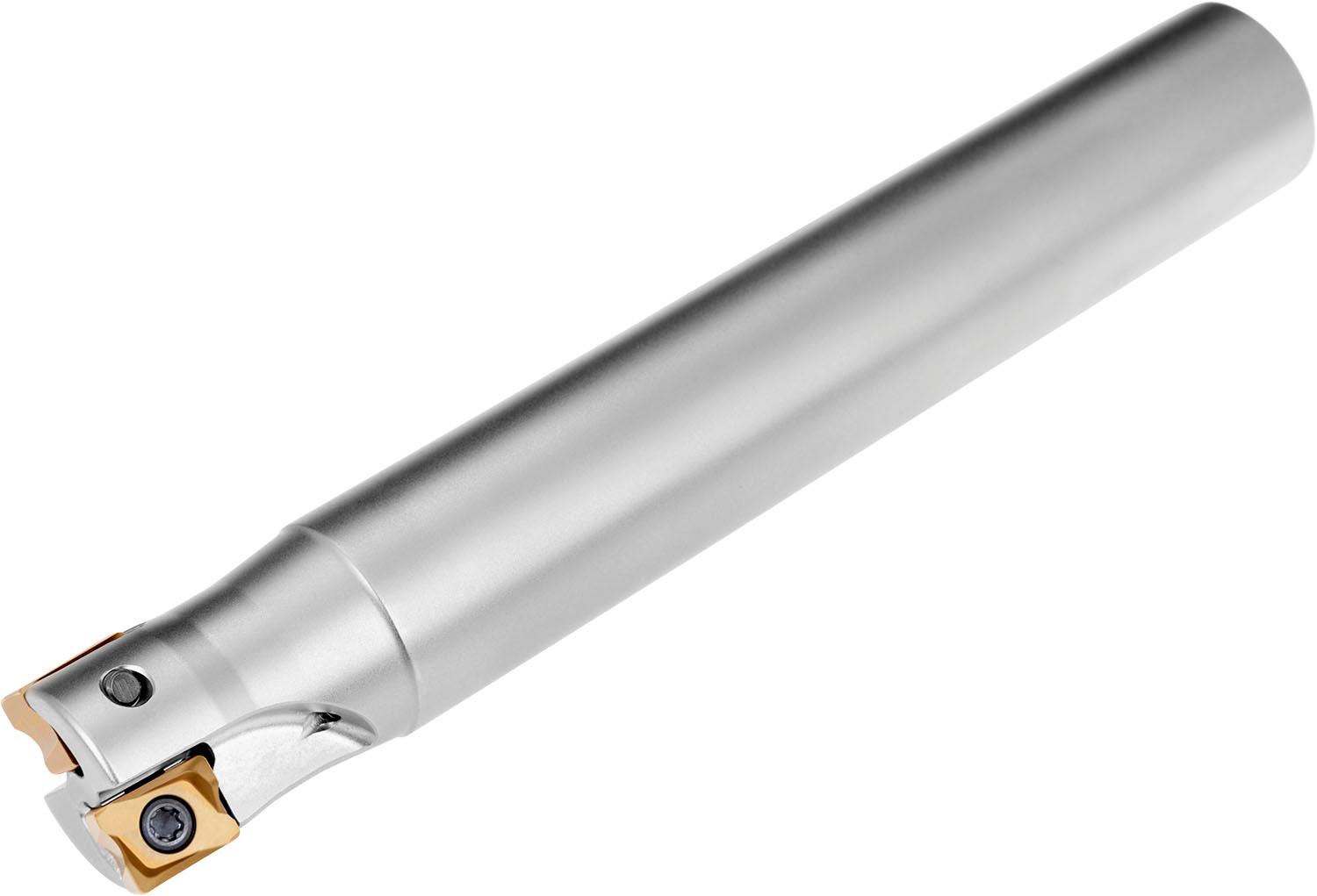

PRAMET 32A2R090A32-SLN12-C Milling cutters with clamping by screw

Product Code: 32A2R090A32-SLN12-C

$599.36$544.87 Ex. GST

Product Code: 32A2R090A32-SLN12-C SKU 32A2R090A32-SLN12-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with double negative geometry which utilises 2 of LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 90mm functional and 195mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5819 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602956453
Product number (SAP): 86001148
Ordering code ANSI: 32A2R090A32-SLN12-C
Product Line: ECON LN
Gross weight – grams: 1017.9
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 195 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 90 mm
Radial rake angle (GAMF): -15
Axial rake angle (GAMP): -6
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 17300
Net weight – grams: 980
Cutter Design: SLN12
Insert index count (NOI): 2
ISO: 32A2R090A32-SLN12-C

Brand

PRAMET
