Description: Value
EAN number: 3603603844650
Product number (SAP): 86037897
Ordering code ANSI: 32A3R042B32-STN16-C
Product Line: ECON TN
Gross weight – grams: 540.6

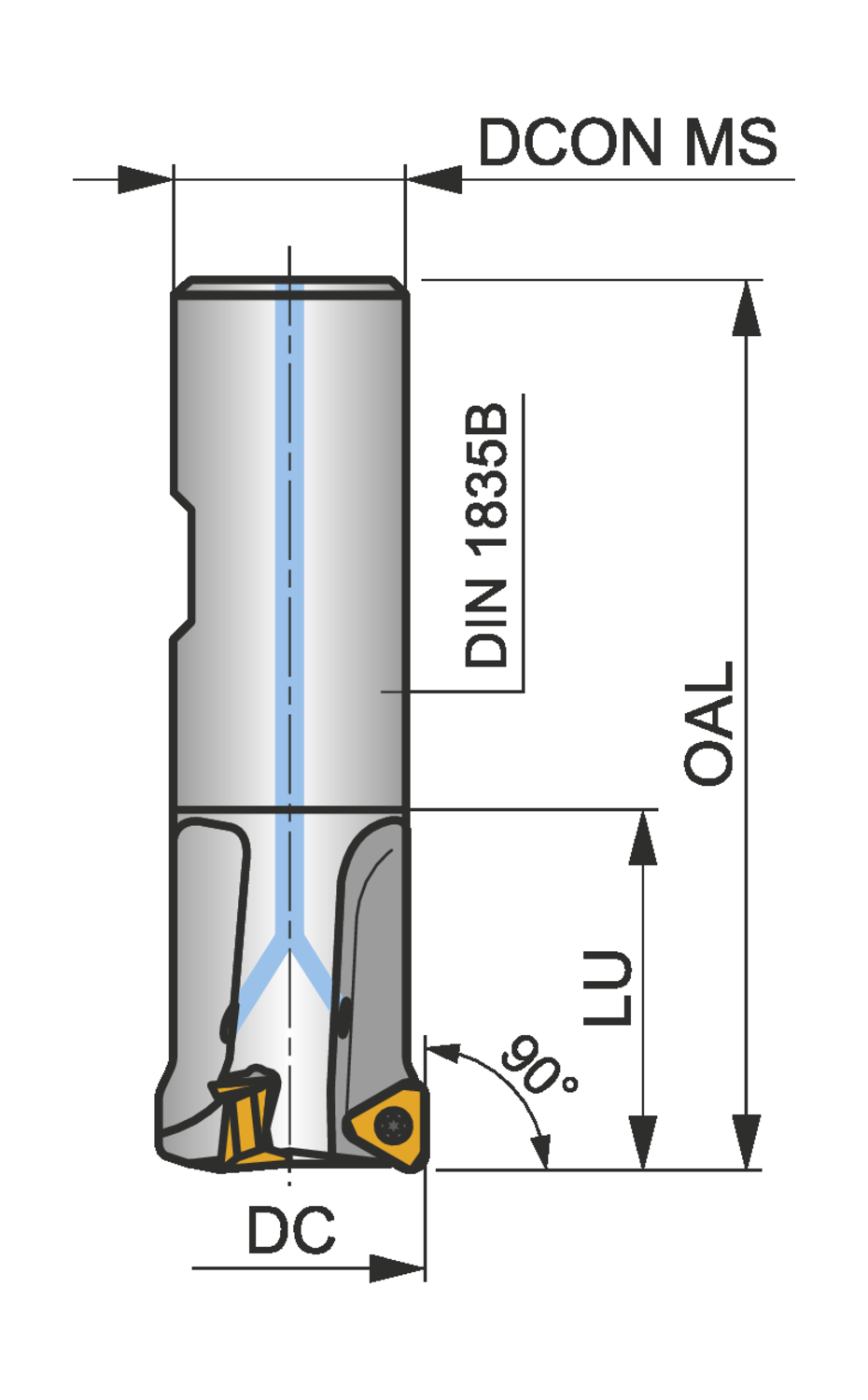

Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 110 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 42 mm

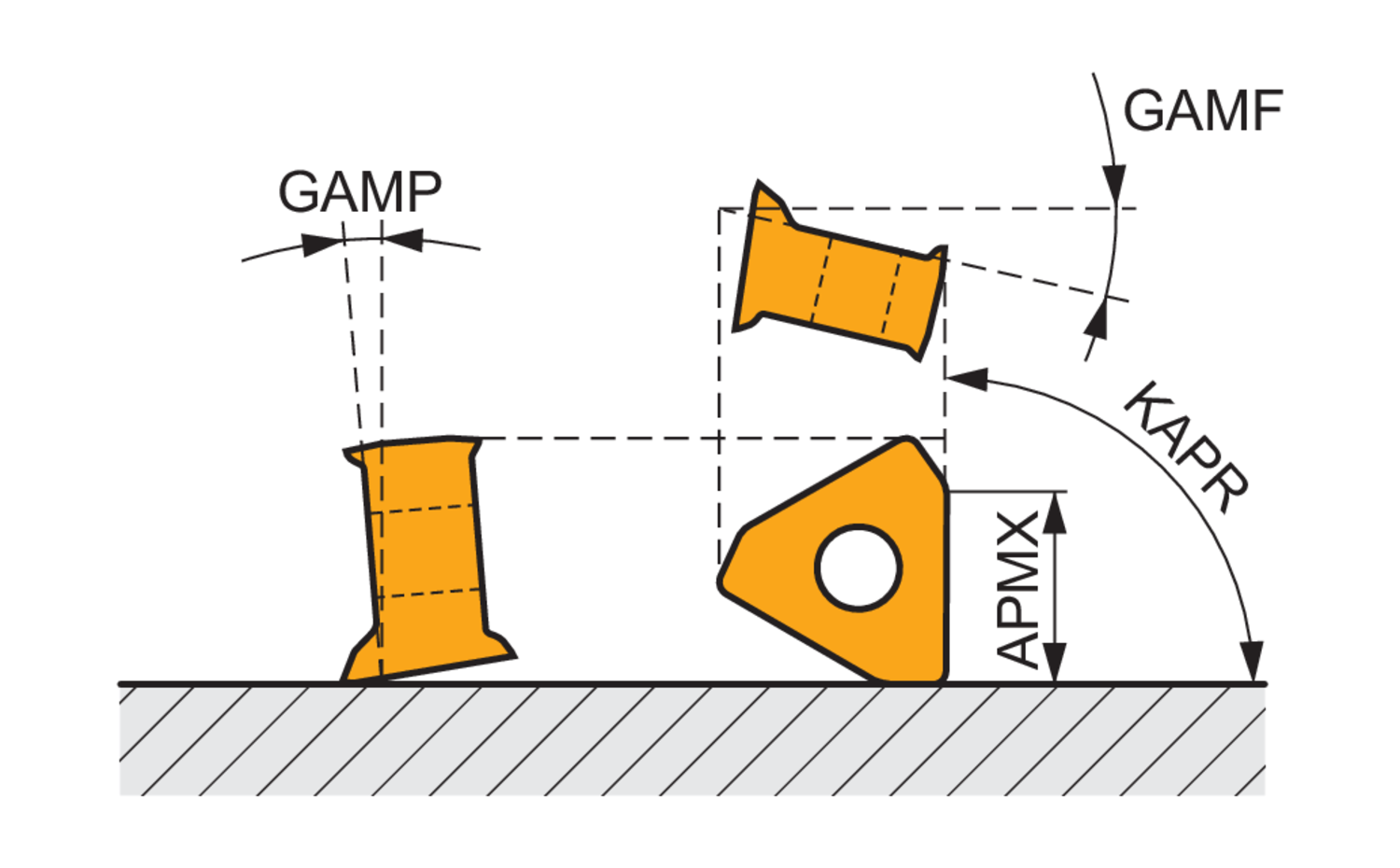

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 17500
Net weight – grams: 518
Cutter Design: STN16
Insert index count (NOI): 3
ISO: 32A3R042B32-STN16-C
|
