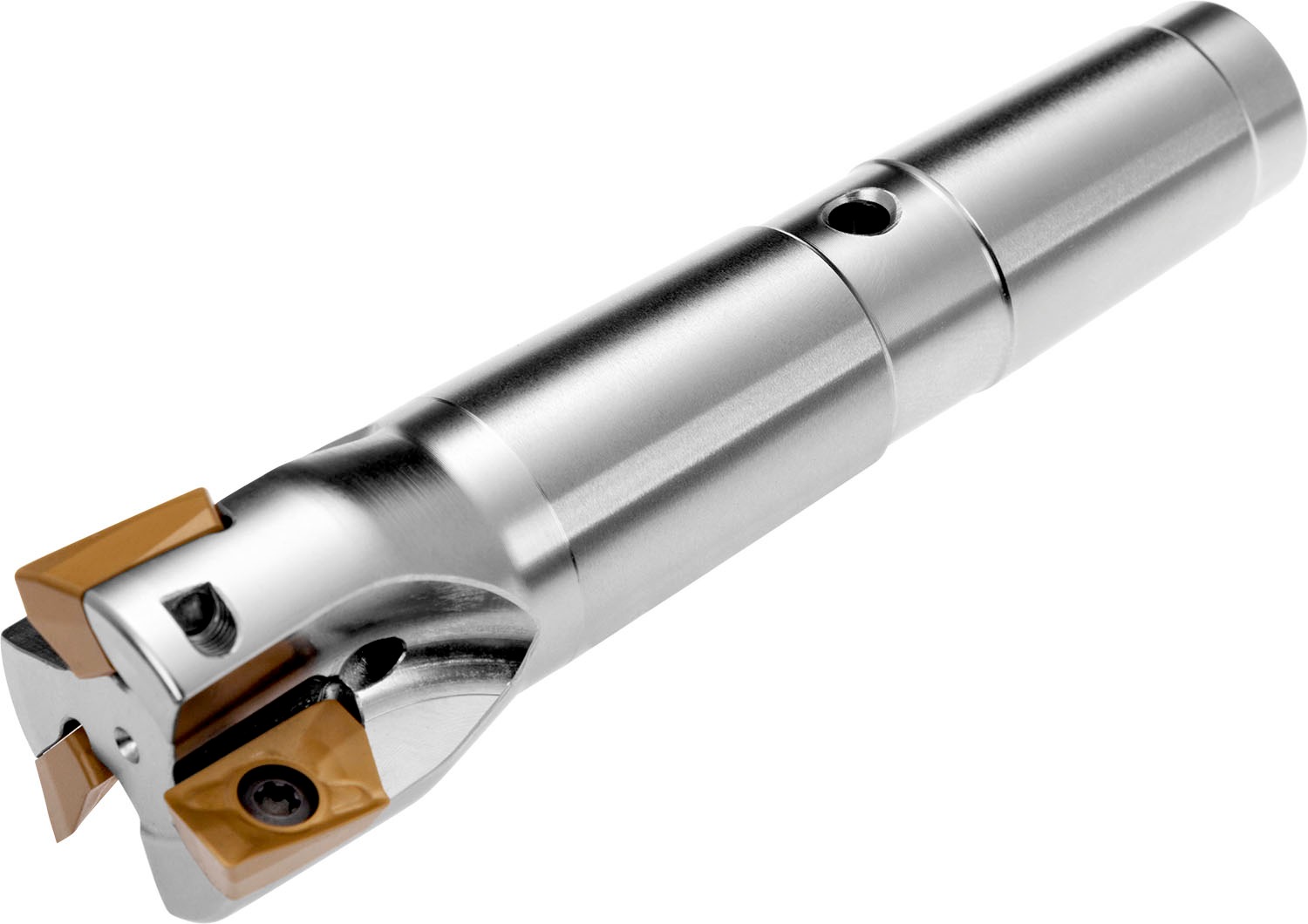

PRAMET 32A3R043E03-SAD16E-C Milling cutters with clamping by screw

Product Code: 32A3R043E03-SAD16E-C

$605.02$550.02 Ex. GST

Product Code: 32A3R043E03-SAD16E-C SKU 32A3R043E03-SAD16E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 32mm with 90° approach angle and MT 3 morse taper shank according to DIN 228-1A, 38mm functional and 100mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 0.5874 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602938527
Product number (SAP): 86007866
Ordering code ANSI: 32A3R043E03-SAD16E-C
Product Line: FORCE AD
Gross weight – grams: 346.6
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 100 mm
Usable Length – millimeter (LU): 38 mm
Functional length – millimeter (LF): 43 mm
Connection size code machine side (CZC MS): 3
Radial rake angle (GAMF): -12
Axial rake angle (GAMP): 7
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 16500
Net weight – grams: 330
Cutter Design: SAD16E
Insert index count (NOI): 3
ISO: 32A3R043E03-SAD16E-C

Brand

PRAMET
