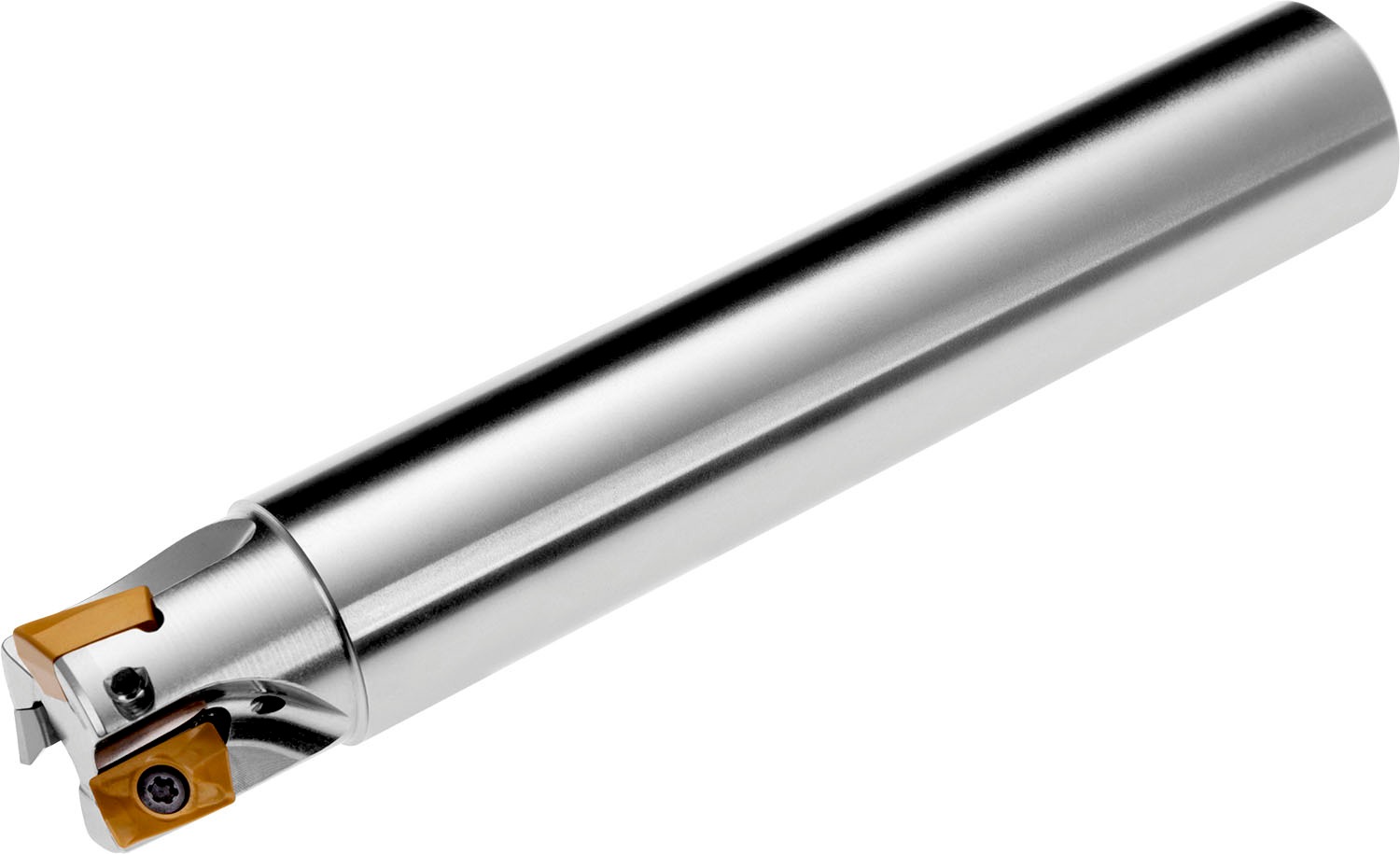

PRAMET 32A3R048A32-SAD16E-C Milling cutters with clamping by screw

Product Code: 32A3R048A32-SAD16E-C

$605.02$550.02 Ex. GST

Product Code: 32A3R048A32-SAD16E-C SKU 32A3R048A32-SAD16E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 1606.. or ADEX 1606.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 48mm functional and 250mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 13.0mm

Additional information

Weight 0.5874 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602993359
Product number (SAP): 86007924
Ordering code ANSI: 32A3R048A32-SAD16E-C
Product Line: FORCE AD
Gross weight – grams: 1347.9
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 250 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 48 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -12
Axial rake angle (GAMP): 7
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 16500
Net weight – grams: 1327.9
Cutter Design: SAD16E
Insert index count (NOI): 3
ISO: 32A3R048A32-SAD16E-C

Brand

PRAMET
