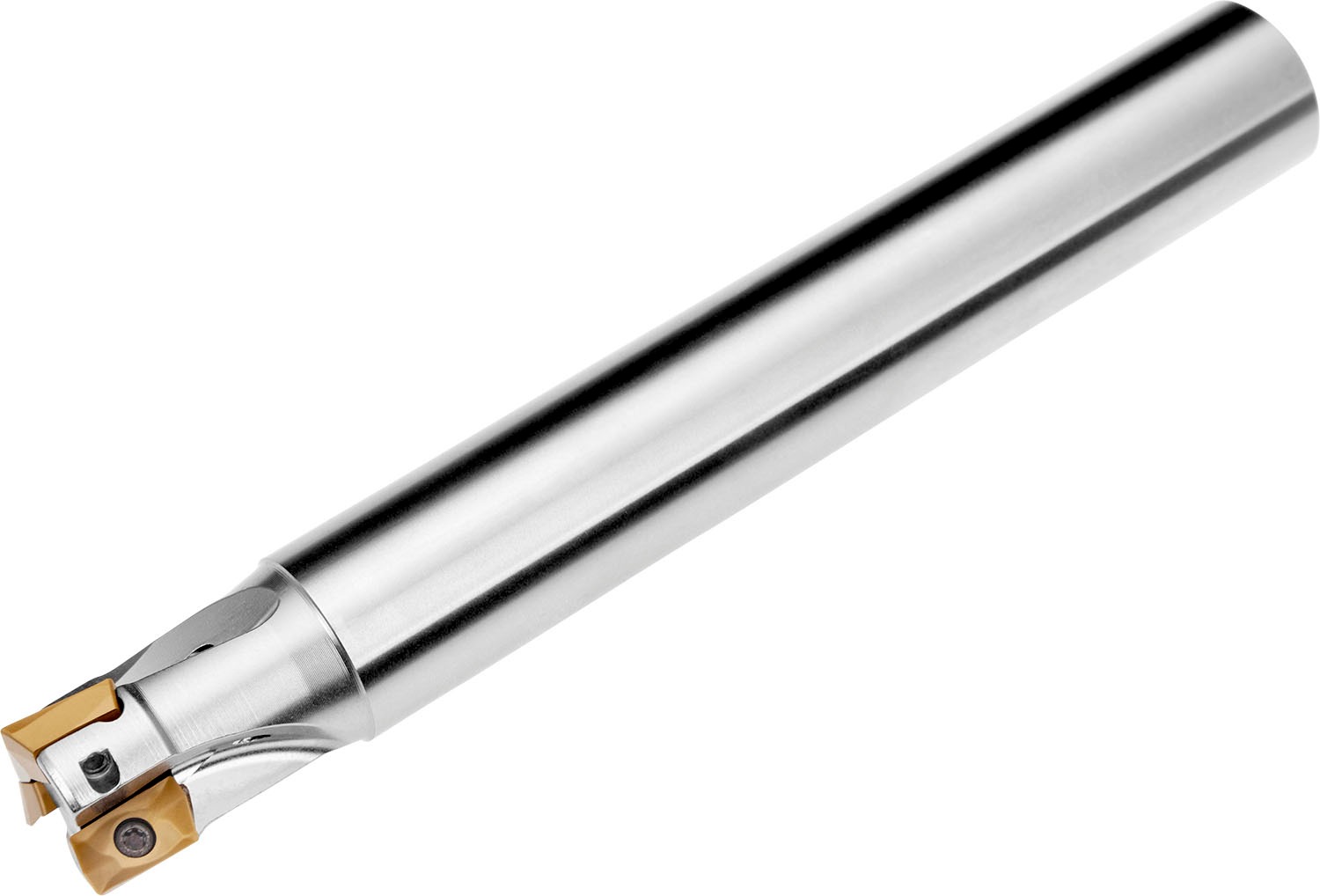

PRAMET 32A3R090A32-SAD11E-C Milling cutters with clamping by screw

Product Code: 32A3R090A32-SAD11E-C

$584.63$531.48 Ex. GST

Product Code: 32A3R090A32-SAD11E-C SKU 32A3R090A32-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 3 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 90mm functional and 195mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5676 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602950314
Product number (SAP): 86038541
Ordering code ANSI: 32A3R090A32-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 987
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 195 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 90 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 21300
Net weight – grams: 987
Cutter Design: SAD11E
Insert index count (NOI): 3
ISO: 32A3R090A32-SAD11E-C

Brand

PRAMET
