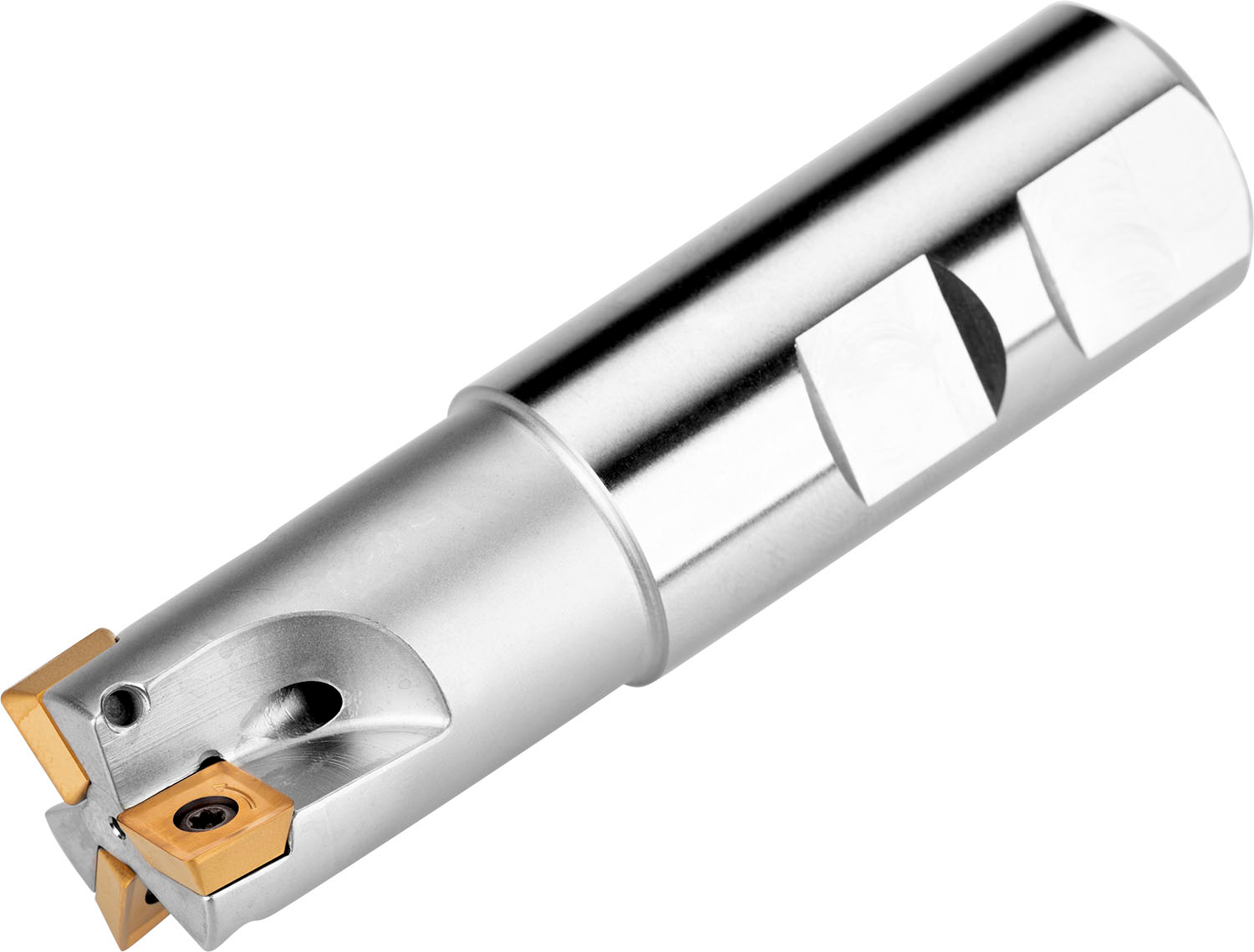

PRAMET 32A4R042B32-SSO09-C Milling cutters with clamping by screw

Product Code: 32A4R042B32-SSO09-C

$773.84$703.49 Ex. GST

Product Code: 32A4R042B32-SSO09-C SKU 32A4R042B32-SSO09-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 4 of SOMT 09T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 102mm overall length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 8.0mm

Additional information

Weight 0.7513 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602937063
Product number (SAP): 84004796
Ordering code ANSI: 32A4R042B32-SSO09-C
Gross weight – grams: 573.5
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 102 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 42 mm
Radial rake angle (GAMF): -10
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 18800
Net weight – grams: 550
Cutter Design: SSO09
Insert index count (NOI): 4
ISO: 32A4R042B32-SSO09-C

Brand

PRAMET
