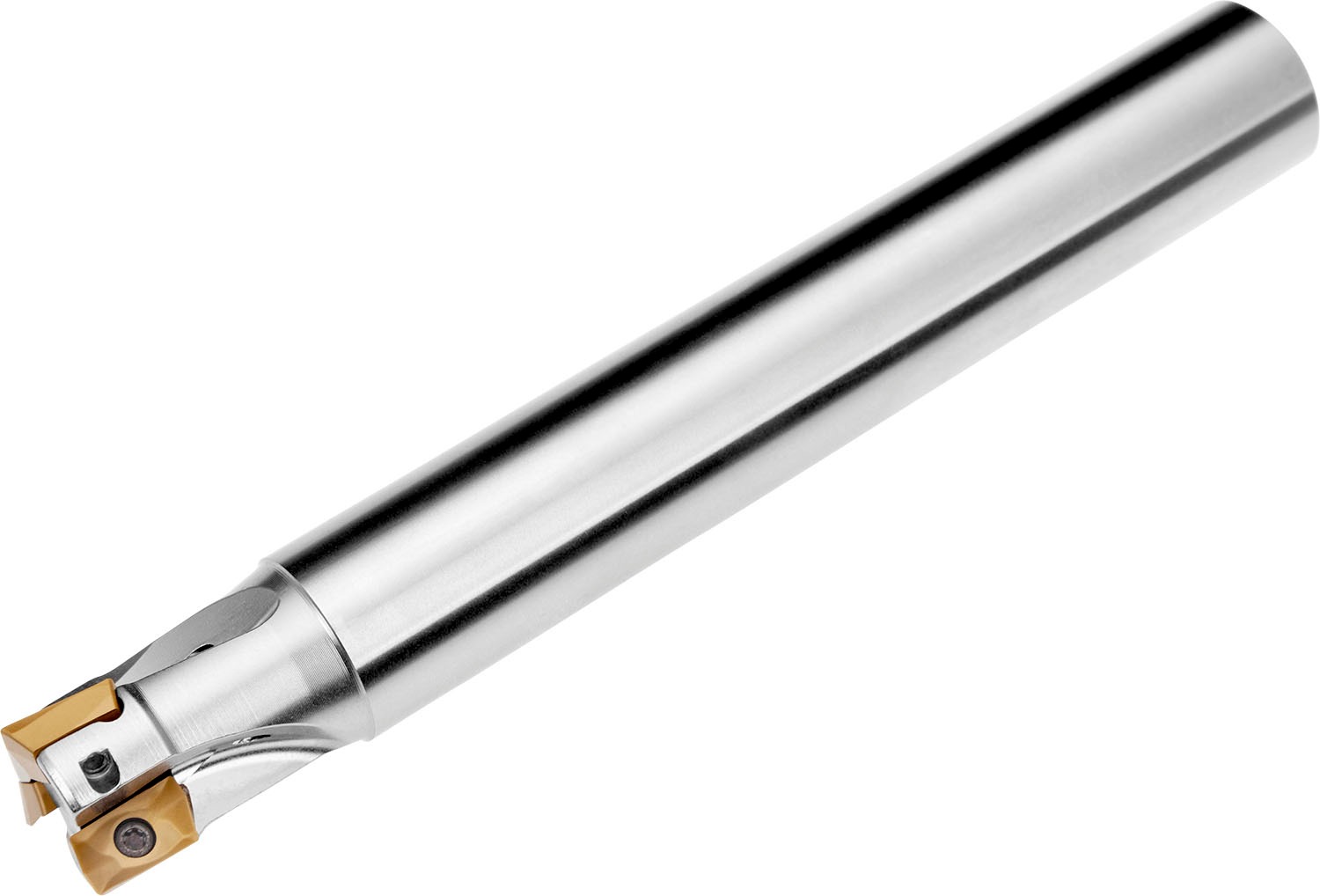

PRAMET 32A5R034A32-SAD11E-C Milling cutters with clamping by screw

Product Code: 32A5R034A32-SAD11E-C

$627.68$570.62 Ex. GST

Product Code: 32A5R034A32-SAD11E-C SKU 32A5R034A32-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 5 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm parallel shank according to DIN 1835A, 34mm functional and 195mm overall length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.6094 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602955616
Product number (SAP): 86000563
Ordering code ANSI: 32A5R034A32-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 1030
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 195 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 34 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 5
Rotational speed maximum (RPMX): 21300
Net weight – grams: 1030
Cutter Design: SAD11E
Insert index count (NOI): 5
ISO: 32A5R034A32-SAD11E-C

Brand

PRAMET
