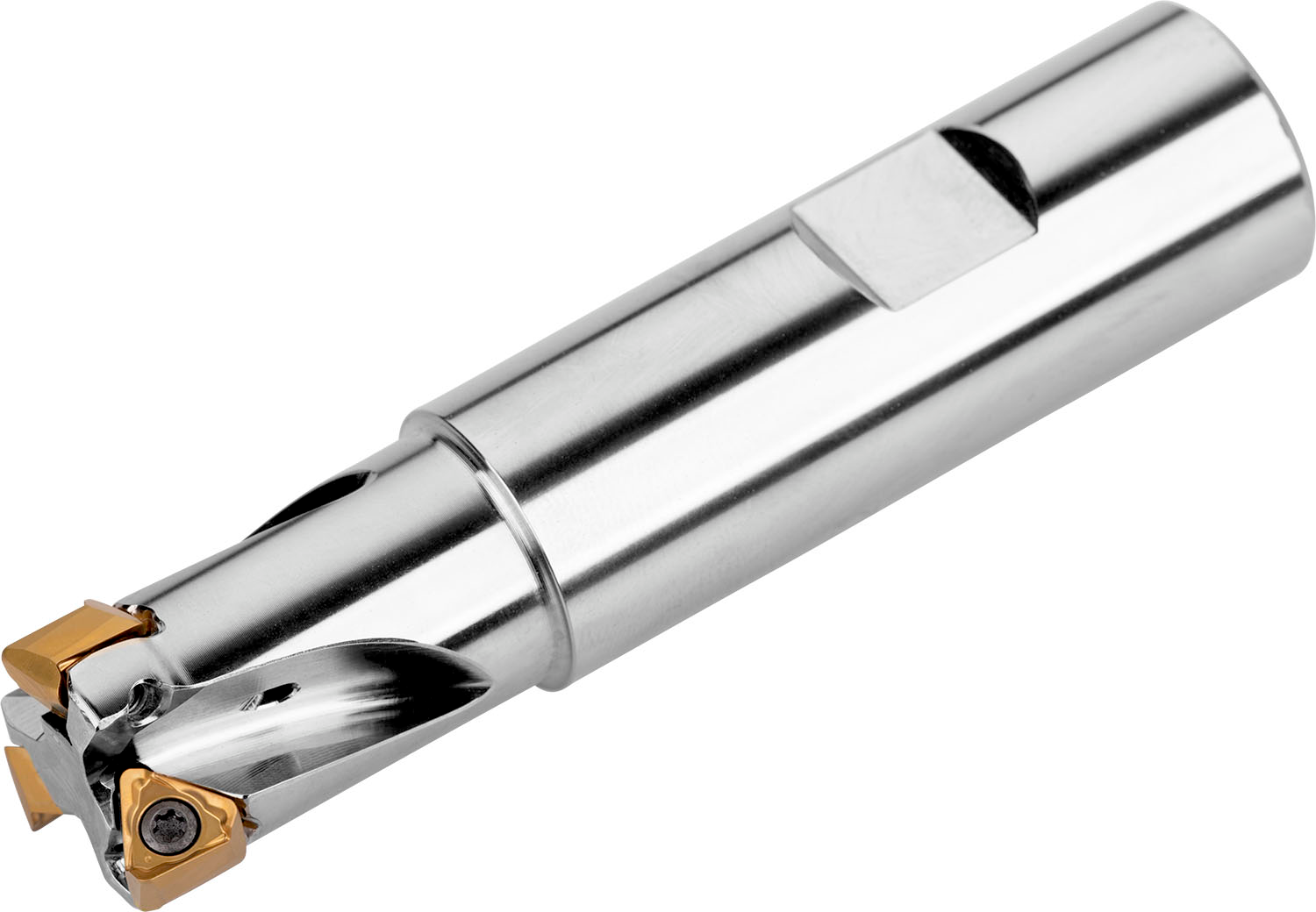

PRAMET 32A5R042B32-STN10-C Milling cutters with clamping by screw

Product Code: 32A5R042B32-STN10-C

$714.92$649.93 Ex. GST

Product Code: 32A5R042B32-STN10-C SKU 32A5R042B32-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 5 of TNGX 1004.. double-sided inserts, cutting diameter 32mm with 90° approach angle and 32mm Weldon shank according to DIN 1835B, 42mm functional and 110mm overall length, through coolant and differential pitch for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.6941 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603173224
Product number (SAP): 86027493
Ordering code ANSI: 32A5R042B32-STN10-C
Product Line: ECON TN
Gross weight – grams: 560.7
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 110 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 42 mm
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 21800
Net weight – grams: 550.5
Cutter Design: STN10
Insert index count (NOI): 5
ISO: 32A5R042B32-STN10-C

Brand

PRAMET
