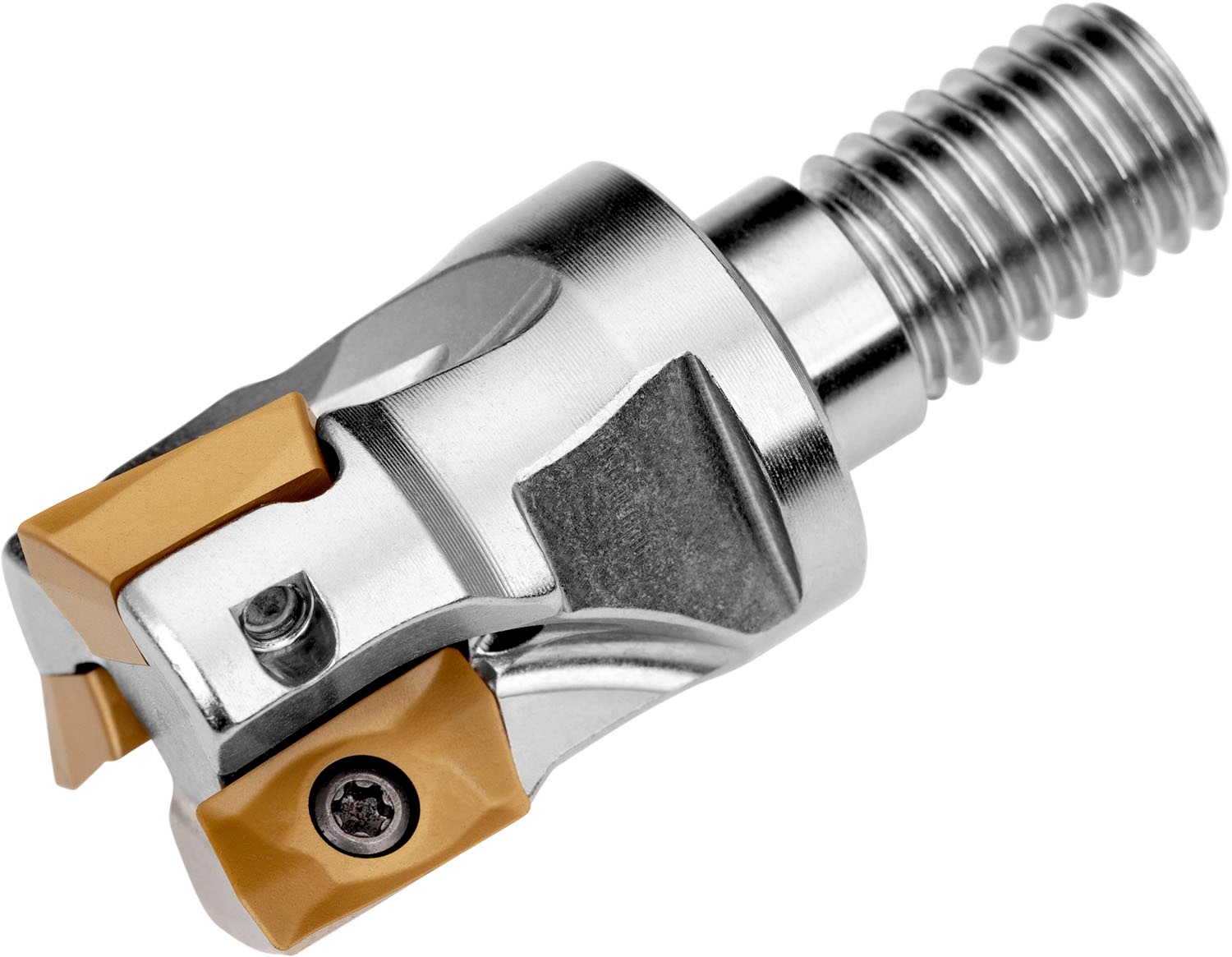

PRAMET 32A5R043M16-SAD11E-C Milling cutters with clamping by screw

Product Code: 32A5R043M16-SAD11E-C

$597.09$542.81 Ex. GST

Product Code: 32A5R043M16-SAD11E-C SKU 32A5R043M16-SAD11E-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 5 of ADMX 11T3.. or ADEX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant for copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 9.0mm

Additional information

Weight 0.5797 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602955630
Product number (SAP): 86000565
Ordering code ANSI: 32A5R043M16-SAD11E-C
Product Line: FORCE AD
Gross weight – grams: 195.5
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 43 mm
Thread diameter size (TDZ): M16
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 5
Net weight – grams: 195
Cutter Design: SAD11E
Insert index count (NOI): 5
ISO: 32A5R043M16-SAD11E-C

Brand

PRAMET
