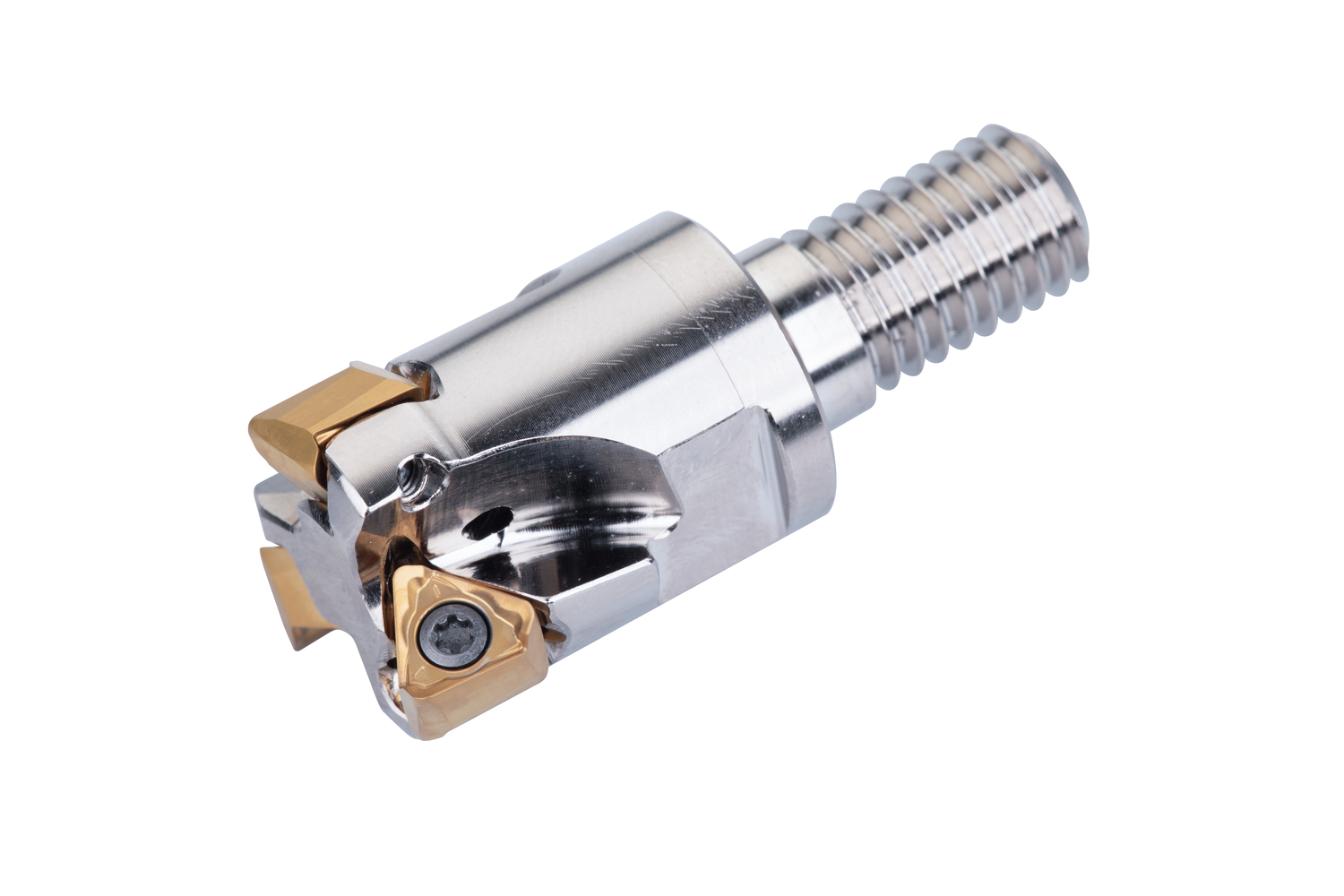

PRAMET 32A5R043M16-STN10-C Milling cutters with clamping by screw

Product Code: 32A5R043M16-STN10-C

$643.54$585.04 Ex. GST

Product Code: 32A5R043M16-STN10-C SKU 32A5R043M16-STN10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder face mill with double negative geometry which utilises 5 of TNGX 1004.. double-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant and differential pitch for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.6248 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603173286
Product number (SAP): 86027499
Ordering code ANSI: 32A5R043M16-STN10-C
Product Line: ECON TN
Gross weight – grams: 215
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 43 mm
Thread diameter size (TDZ): M16
Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -11
Peripheral effective cutting edge count (ZEFP): 5
Cutting pitch differential (CPDF): Yes
Net weight – grams: 215
Cutter Design: STN10
Insert index count (NOI): 5
ISO: 32A5R043M16-STN10-C

Brand

PRAMET
