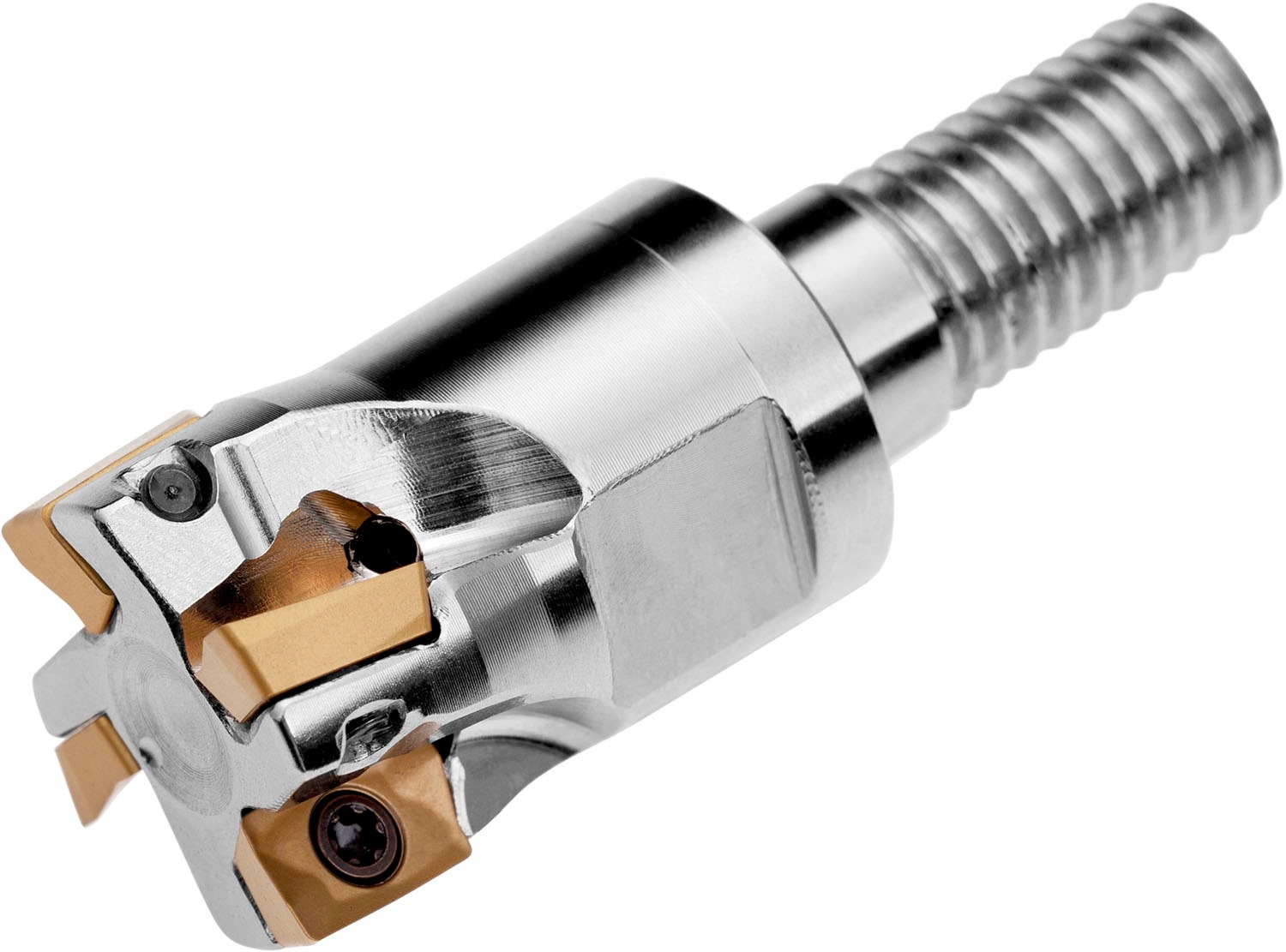

PRAMET 32A8R043M16-SAD07D-C Milling cutters with clamping by screw

Product Code: 32A8R043M16-SAD07D-C

$632.21$574.74 Ex. GST

Product Code: 32A8R043M16-SAD07D-C SKU 32A8R043M16-SAD07D-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with positve/negative geometry which utilises 8 of ADMX 0702.. or ADEX 0702.. single-sided inserts, cutting diameter 32mm with 90° approach angle and M16 threaded shank for standard modular tool-holders, 43mm protrusion length, through coolant and differential pitch for shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.6138 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602992833
Product number (SAP): 86020579
Ordering code ANSI: 32A8R043M16-SAD07D-C
Product Line: FORCE AD
Gross weight – grams: 240.6
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 66 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 43 mm
Thread diameter size (TDZ): M16
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 8
Peripheral effective cutting edge count (ZEFP): 8
Cutting pitch differential (CPDF): Yes
Net weight – grams: 238
Cutter Design: SAD07D
Insert index count (NOI): 8
ISO: 32A8R043M16-SAD07D-C

Brand

PRAMET
