PRAMET 32E3R120A32-SSN11-C

Product Code: 32E3R120A32-SSN11-C

$654.87$595.34 Ex. GST

Product Code: 32E3R120A32-SSN11-C SKU 32E3R120A32-SSN11-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

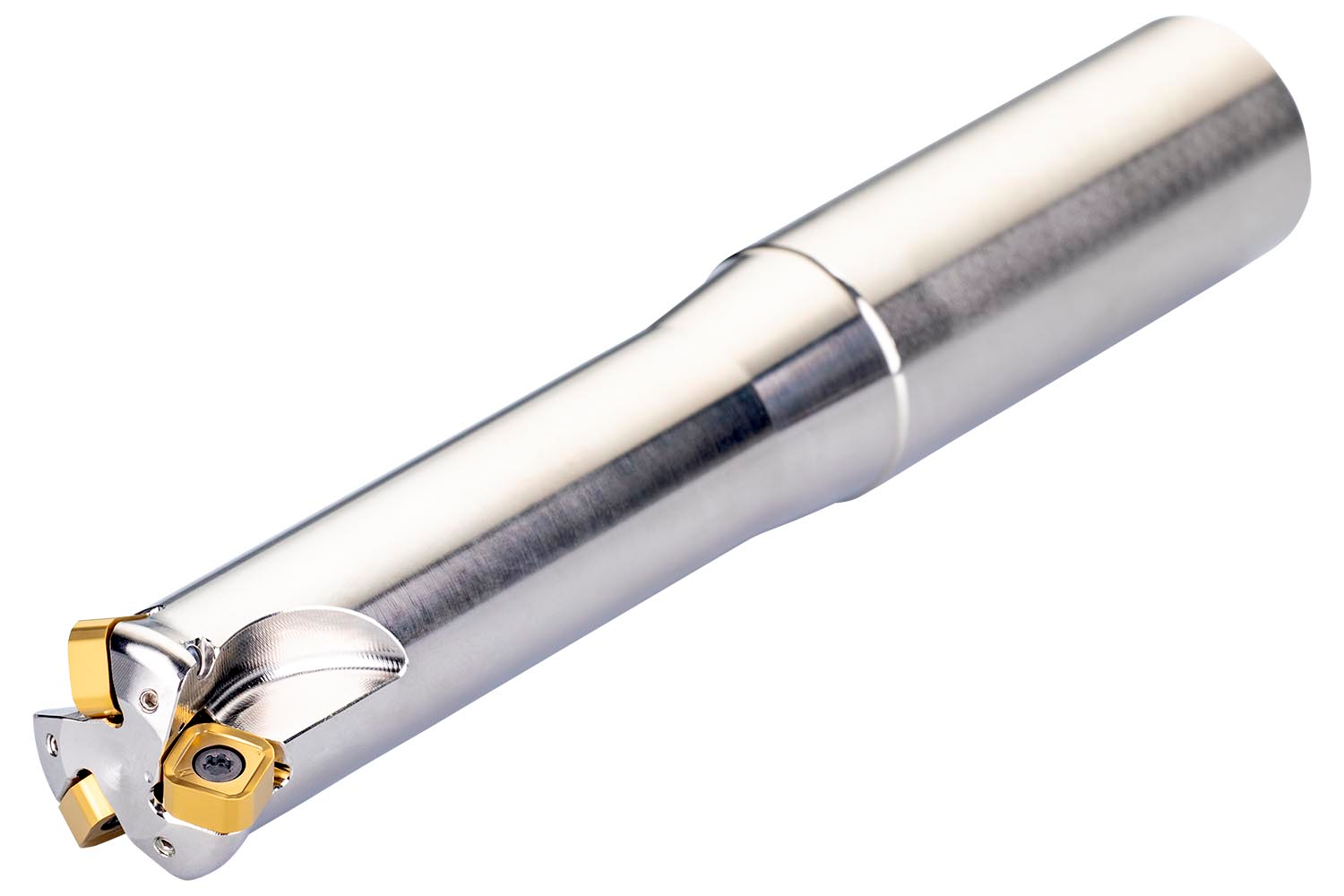

High feed cutter with double negative geometry which utilises 3 of SNGX 1104.. double-sided inserts, cutting diameter 32mm with 18° approach angle and 32mm parallel shank according to DIN 1835A, 120mm functional and 200mm overall length, through coolant for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.7mm

Additional information

Weight 0.6358 kg
Dimensions Length 20cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 3603603672499
Product number (SAP): 86035438
Ordering code ANSI: 32E3R120A32-SSN11-C
Gross weight – grams: 920
Cutting diameter maximum – millimeter (DCX): 32 mm
Cutting diameter – millimeter (DC): 18.3 mm
Overall length – millimeter (OAL): 200 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 120 mm
Radial rake angle (GAMF): -11.5
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 17500
Net weight – grams: 890
Cutter Design: SSN11
Insert index count (NOI): 3
ISO: 32E3R120A32-SSN11-C

Brand

PRAMET
