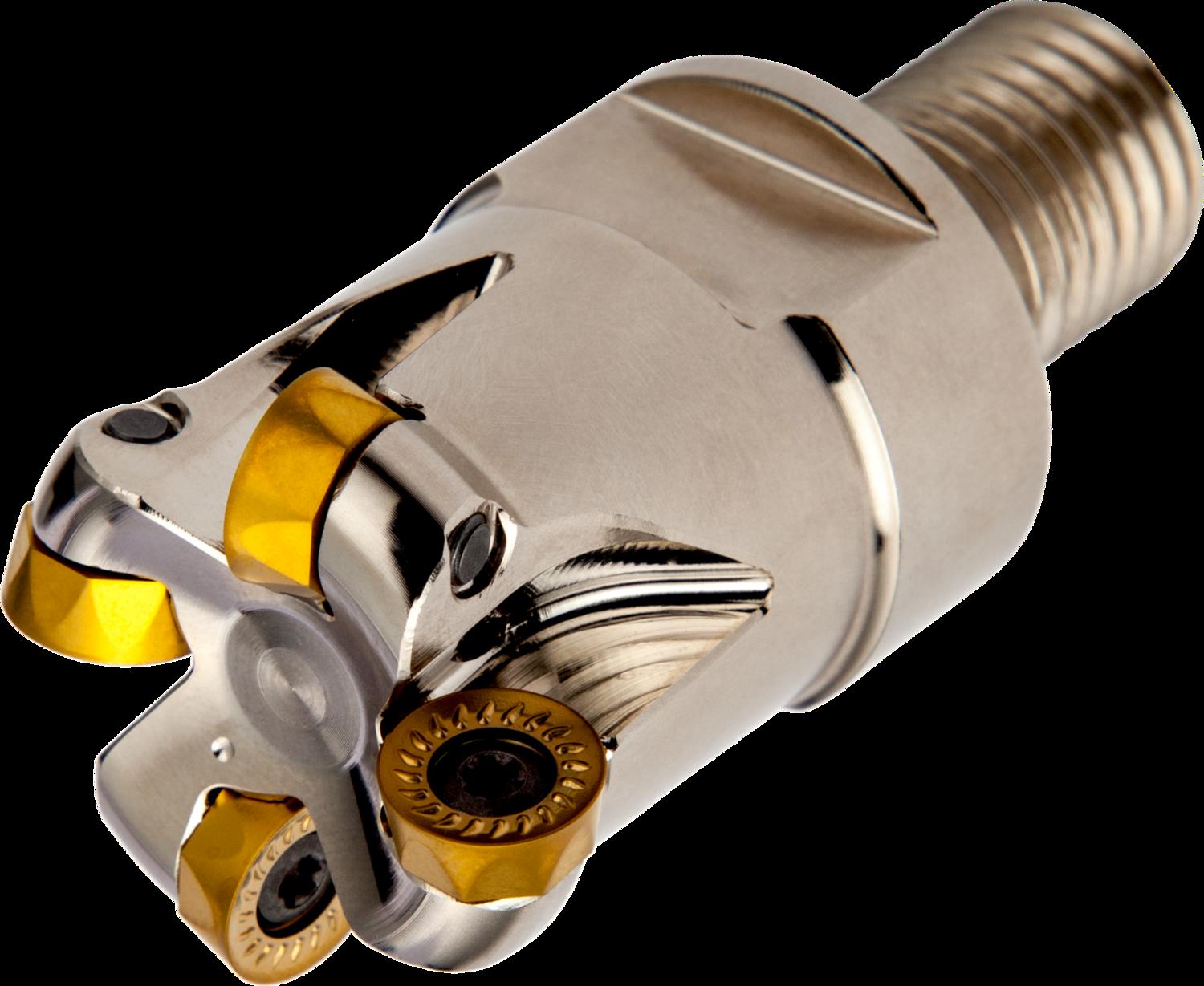

PRAMET 32E4R042M16-SRC10-C Milling cutters for D&M

Product Code: 32E4R042M16-SRC10-C

$458.87$417.15 Ex. GST

Product Code: 32E4R042M16-SRC10-C SKU 32E4R042M16-SRC10-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Copy face mill with double negative geometry which utilises 4 of RCMT 10T3MO.. single-sided inserts, cutting diameter 32mm with M16 threaded shank for standard modular tool-holders, 42mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0mm

Additional information

Weight 0.4455 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603603372108
Product number (SAP): 86033357
Ordering code ANSI: 32E4R042M16-SRC10-C
Gross weight – grams: 201
Cutting diameter maximum – millimeter (DCX): 32 mm
Cutting diameter – millimeter (DC): 22 mm
Overall length – millimeter (OAL): 65 mm
Connection diameter – millimeter (DCON MS): 17 mm
Hub diameter – millimeter (DHUB): 29 mm
Functional length – millimeter (LF): 42 mm
Thread diameter size (TDZ): M16
Radial rake angle (GAMF): -2.6
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 4
Rotational speed maximum (RPMX): 18500
Net weight – grams: 201
Cutter Design: SRC10
Insert index count (NOI): 4
ISO: 32E4R042M16-SRC10-C

Brand

PRAMET
