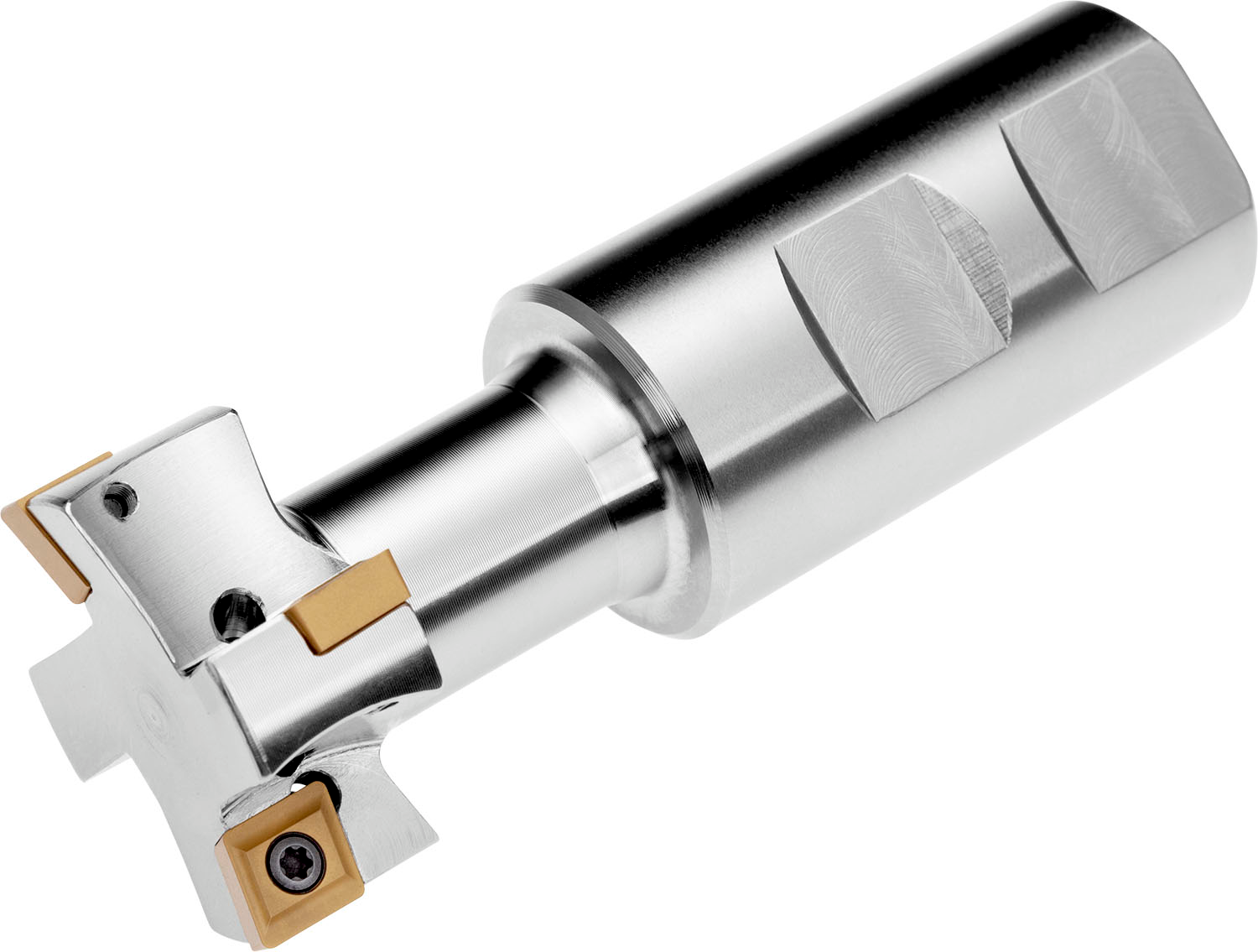

PRAMET 32F1R038B32-SCC08-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602936646
Product number (SAP): 86038514
Ordering code ANSI: 32F1R038B32-SCC08-C
Gross weight – grams: 505.1
Cutting diameter – millimeter (DC): 32 mm
Body diameter – millimeter (BD): 16 mm
Overall length – millimeter (OAL): 98 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 33 mm
Cutting width – millimeter (CW): 14 mm
Face effective cutting edge count (ZEFF): 1
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 19100
Net weight – grams: 502
Insert index count (NOI): 2
ISO: 32F1R038B32-SCC08-C
