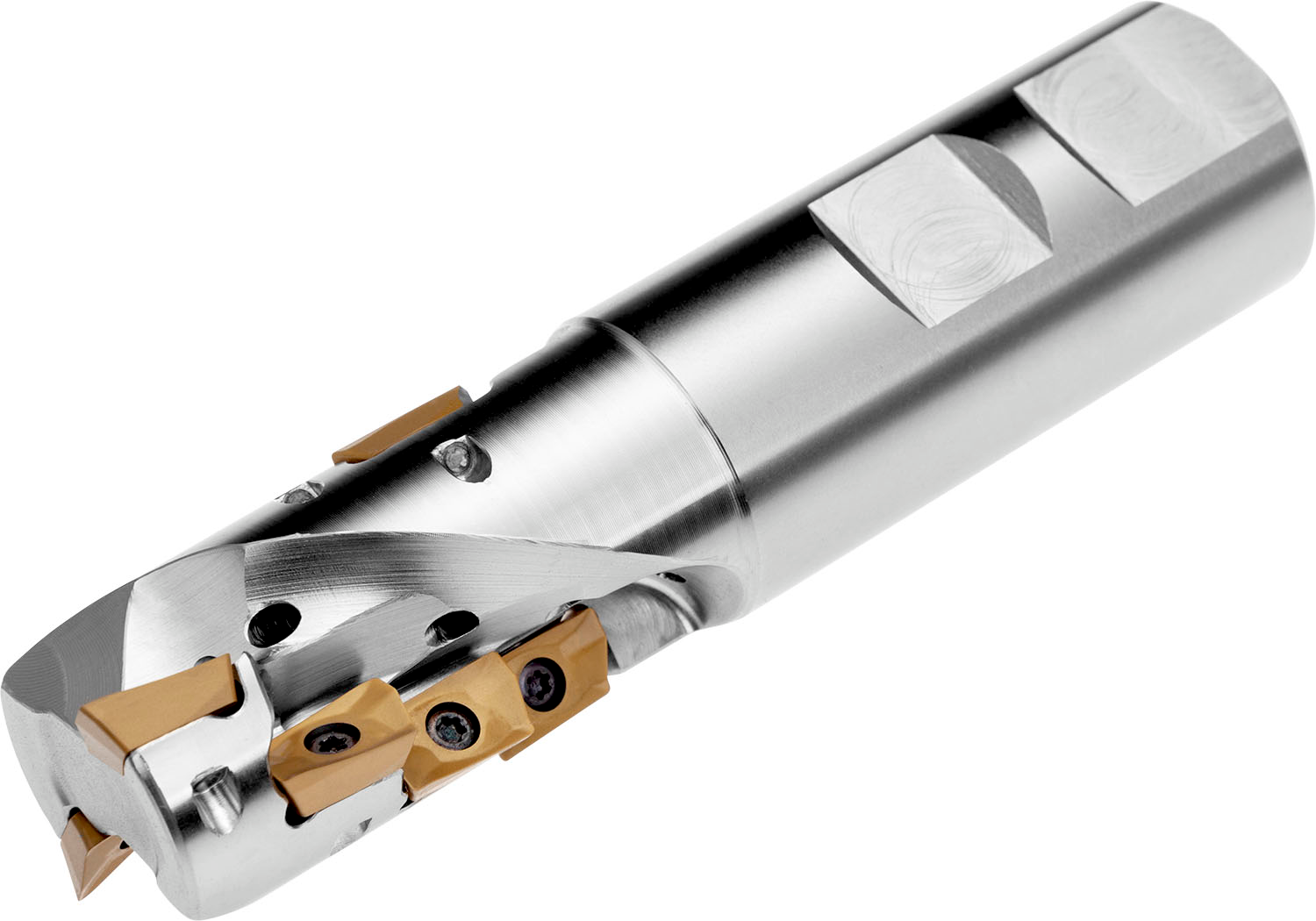

PRAMET 32J2R60B32-SAD11E47-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602949905
Product number (SAP): 86038521
Ordering code ANSI: 32J2R60B32-SAD11E47-C
Product Line: FORCE AD
Gross weight – grams: 610
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 120 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 60 mm
Depth of cut maximum – millimeter (APMX): 47 mm
Connection size code machine side (CZC MS): –
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 8
Flute count (NOF): 2
Number of inserts (helical mills): 10
Rotational speed maximum (RPMX): 21300
Net weight – grams: 603
Insert index count (NOI): 10
ISO: 32J2R60B32-SAD11E47-C
