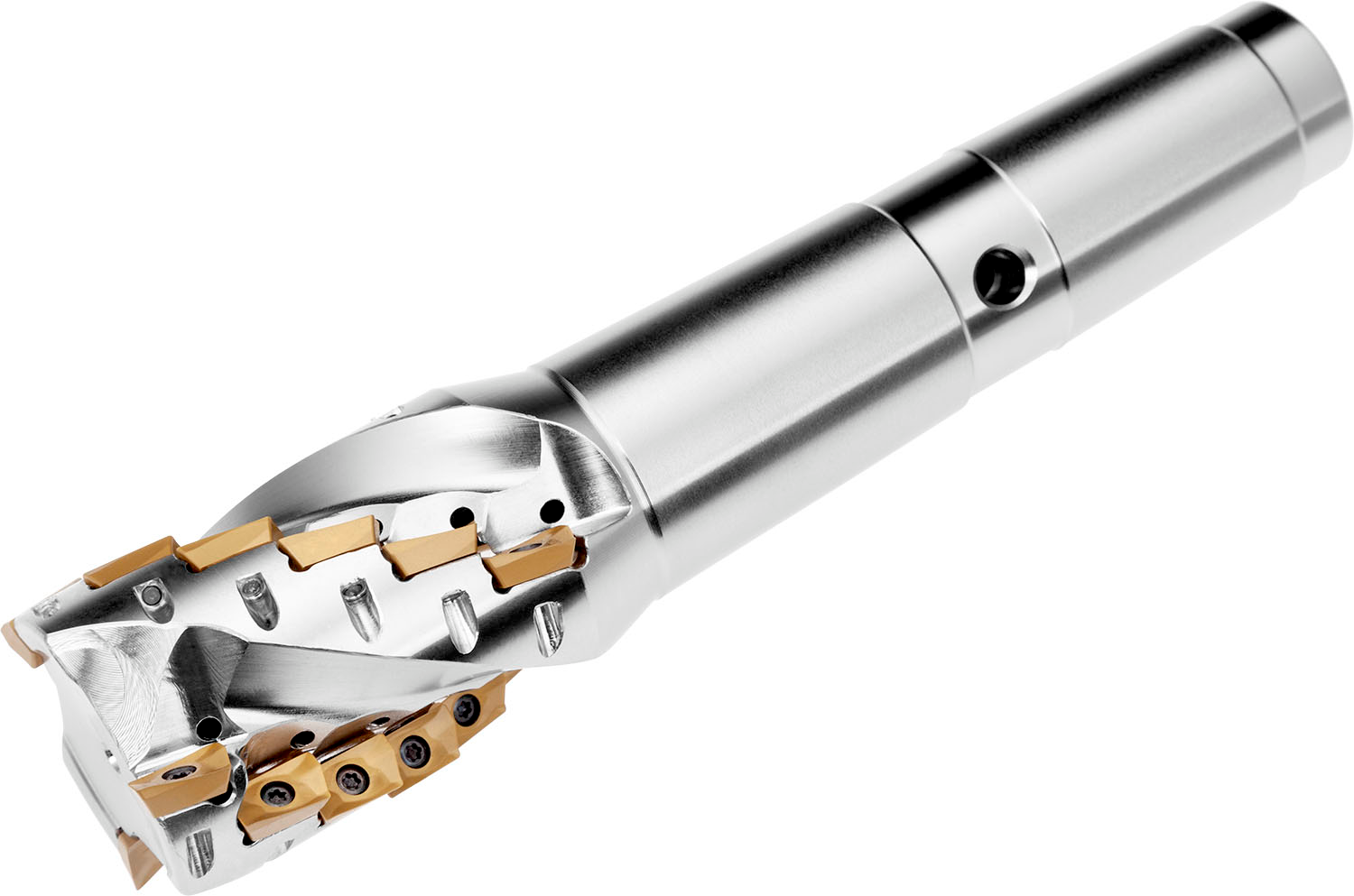

PRAMET 32J2R65E04-SAD11E47-C Milling cutters with clamping by screw

Product Code: 32J2R65E04-SAD11E47-C

$1,495.56$1,359.60 Ex. GST

Product Code: 32J2R65E04-SAD11E47-C SKU 32J2R65E04-SAD11E47-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Shoulder mill with extended flute with positve/negative geometry which utilises 10 of ADMX 11T3.. single-sided inserts, cutting diameter 32mm with 90° approach angle and MT 4 morse taper shank according to DIN 228-1A, 47mm functional and 167.5mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 47mm

Additional information

Weight 1.452 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602949943
Product number (SAP): 86038525
Ordering code ANSI: 32J2R65E04-SAD11E47-C
Product Line: FORCE AD
Gross weight – grams: 703.9
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 167.5 mm
Functional length – millimeter (LF): 65 mm
Depth of cut maximum – millimeter (APMX): 47 mm
Connection size code machine side (CZC MS): 4
Radial rake angle (GAMF): -9
Axial rake angle (GAMP): 8
Flute count (NOF): 2
Number of inserts (helical mills): 10
Rotational speed maximum (RPMX): 21300
Net weight – grams: 700
Insert index count (NOI): 10
ISO: 32J2R65E04-SAD11E47-C

Brand

PRAMET
