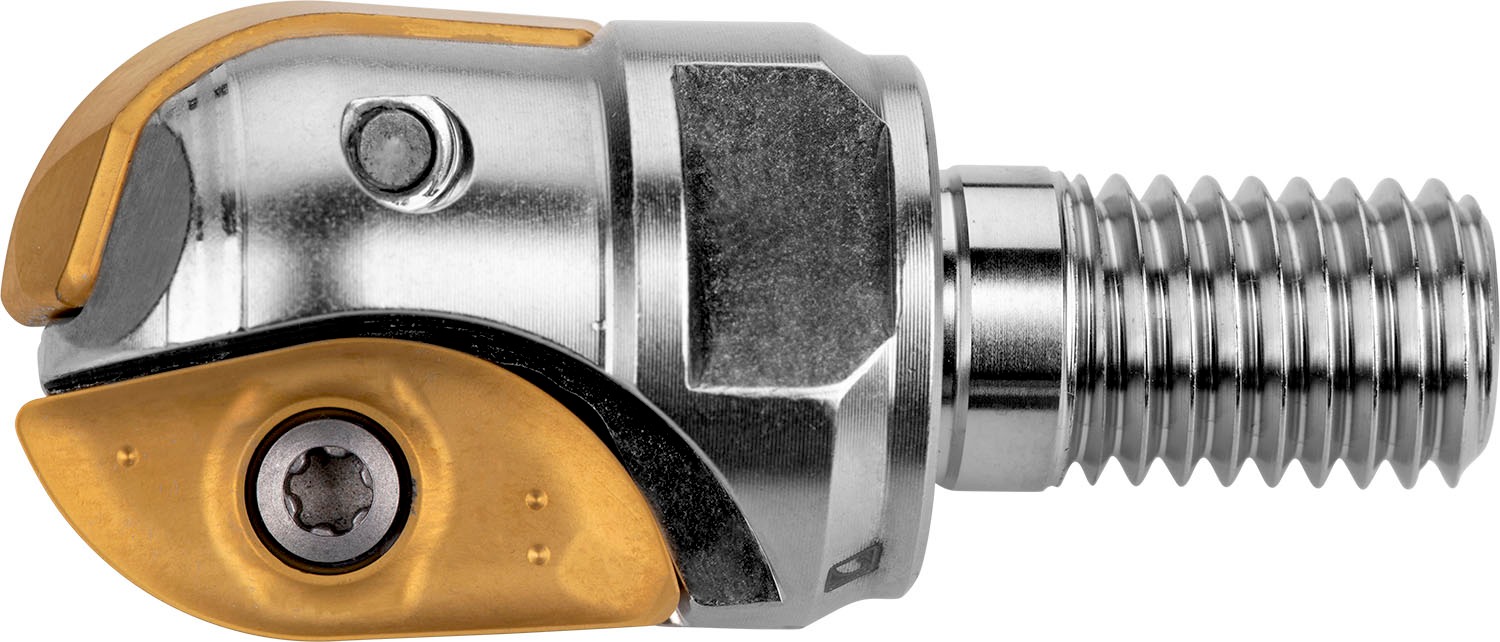

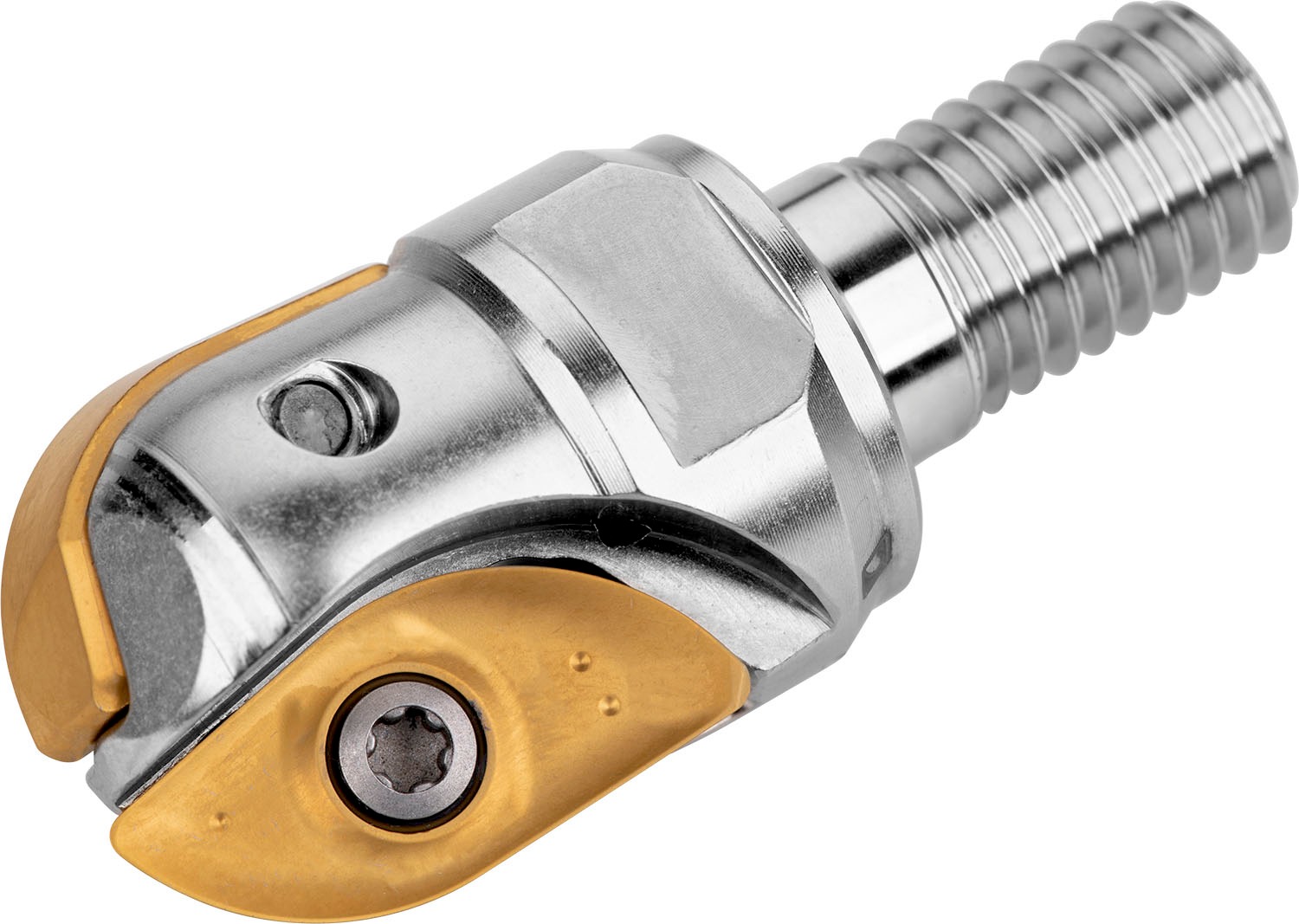

PRAMET 32L2R045M16-SZP32-C Milling cutters for D&M

Description: Value
EAN number: 3603602970121
Product number (SAP): 86007514
Ordering code ANSI: 32L2R045M16-SZP32-C
Gross weight – grams: 185

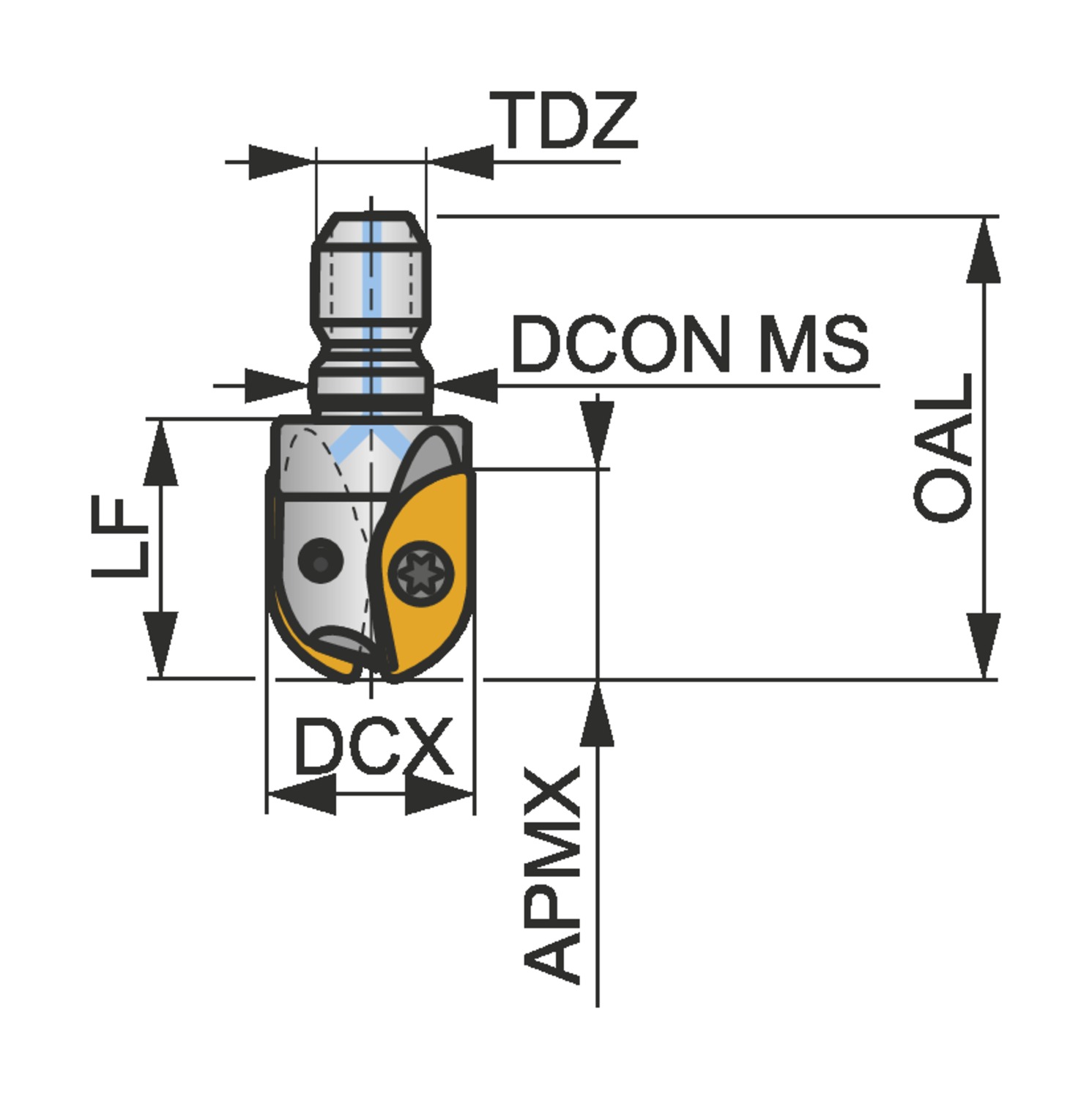

Cutting diameter maximum – millimeter (DCX): 32 mm
Connection diameter – millimeter (DCON MS): 17 mm
Functional length – millimeter (LF): 45 mm
Thread diameter size (TDZ): M16
Connection size code machine side (CZC MS): –
Depth of cut maximum – millimeter (APMX): 27.9 mm

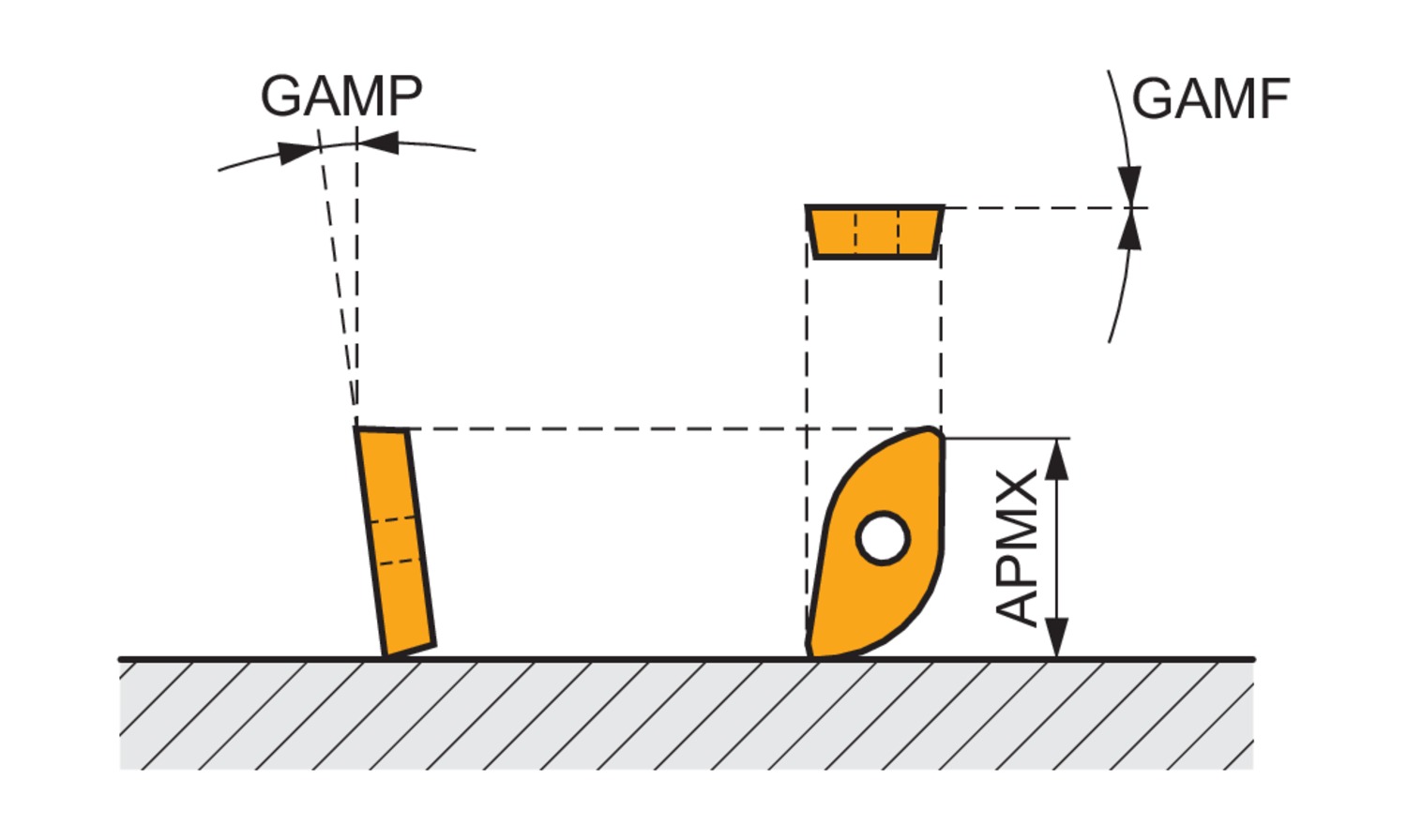

Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Net weight – grams: 150
Insert index count (NOI): 2
ISO: 32L2R045M16-SZP32-C
