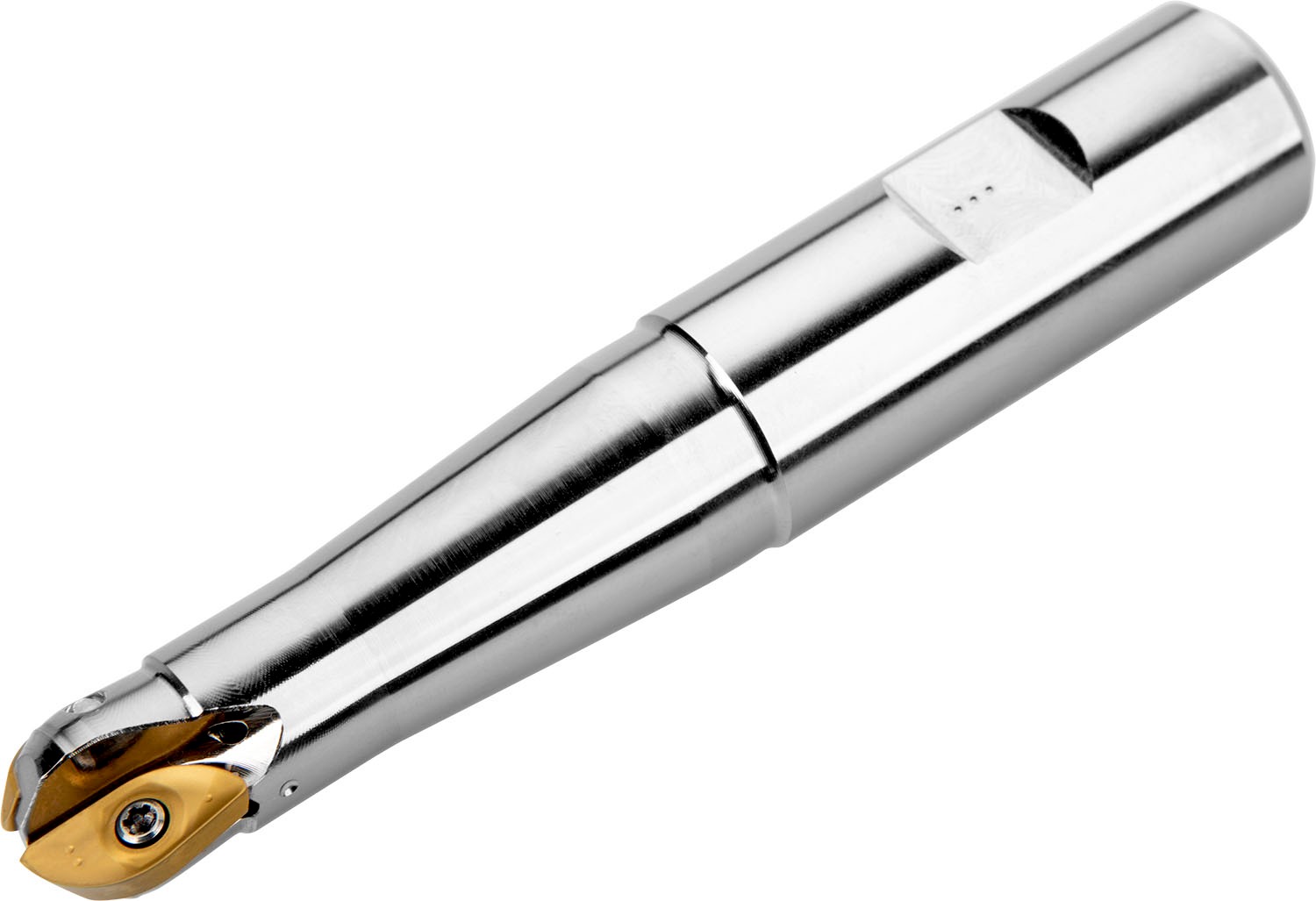

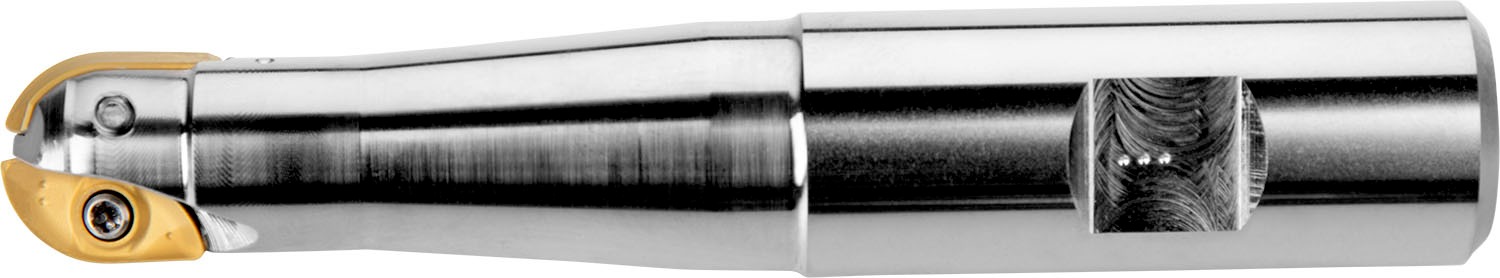

PRAMET 32L2R070B32-SZP32-C Milling cutters for D&M

Description: Value
EAN number: 3603602969873
Product number (SAP): 86007489
Ordering code ANSI: 32L2R070B32-SZP32-C
Gross weight – grams: 730.3
Cutting diameter maximum – millimeter (DCX): 32 mm
Overall length – millimeter (OAL): 131 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 70 mm
Functional length – millimeter (LF): 95.5 mm
Connection size code machine side (CZC MS): –

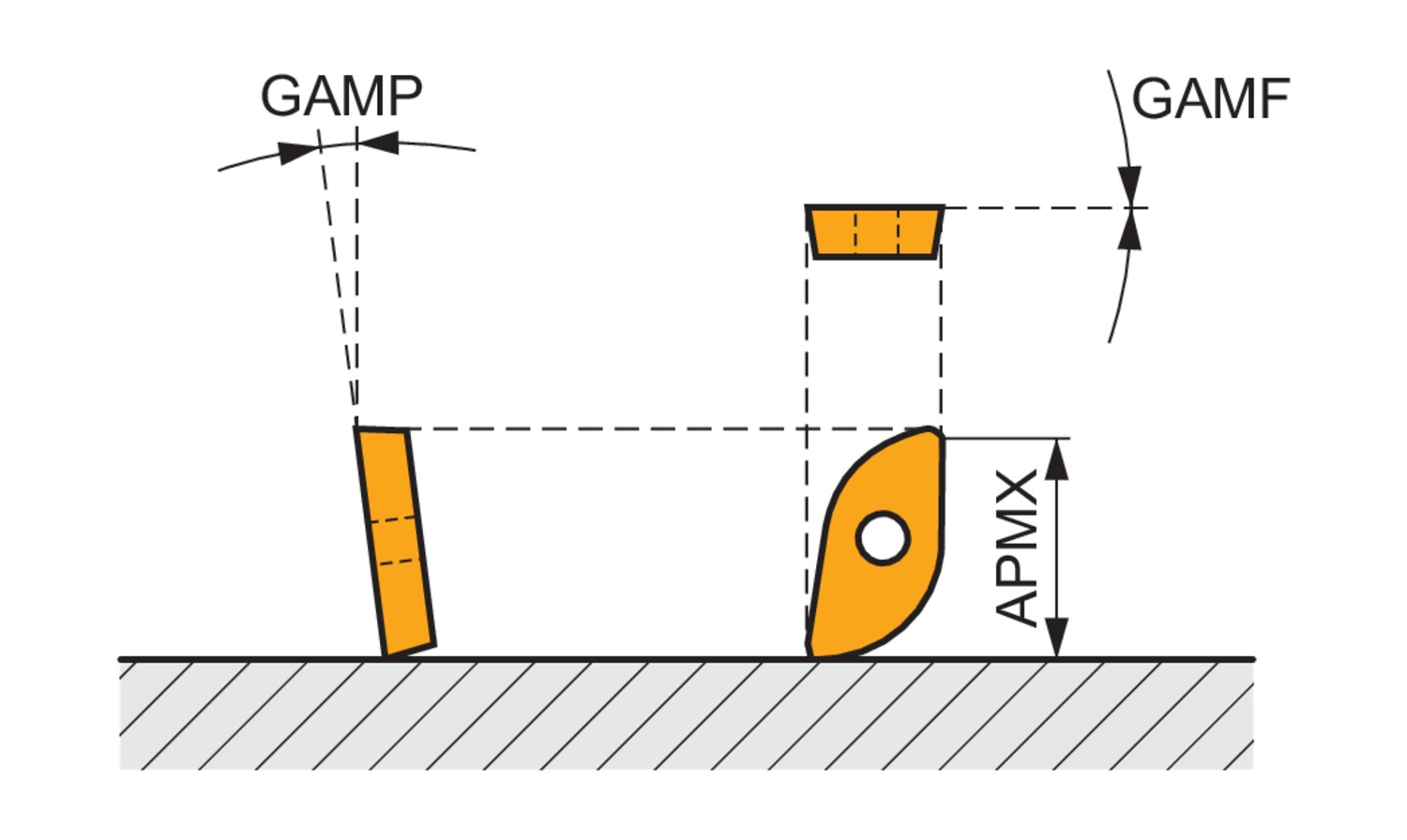

Depth of cut maximum – millimeter (APMX): 28.6 mm
Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 18500
Net weight – grams: 720
Insert index count (NOI): 2
ISO: 32L2R070B32-SZP32-C
