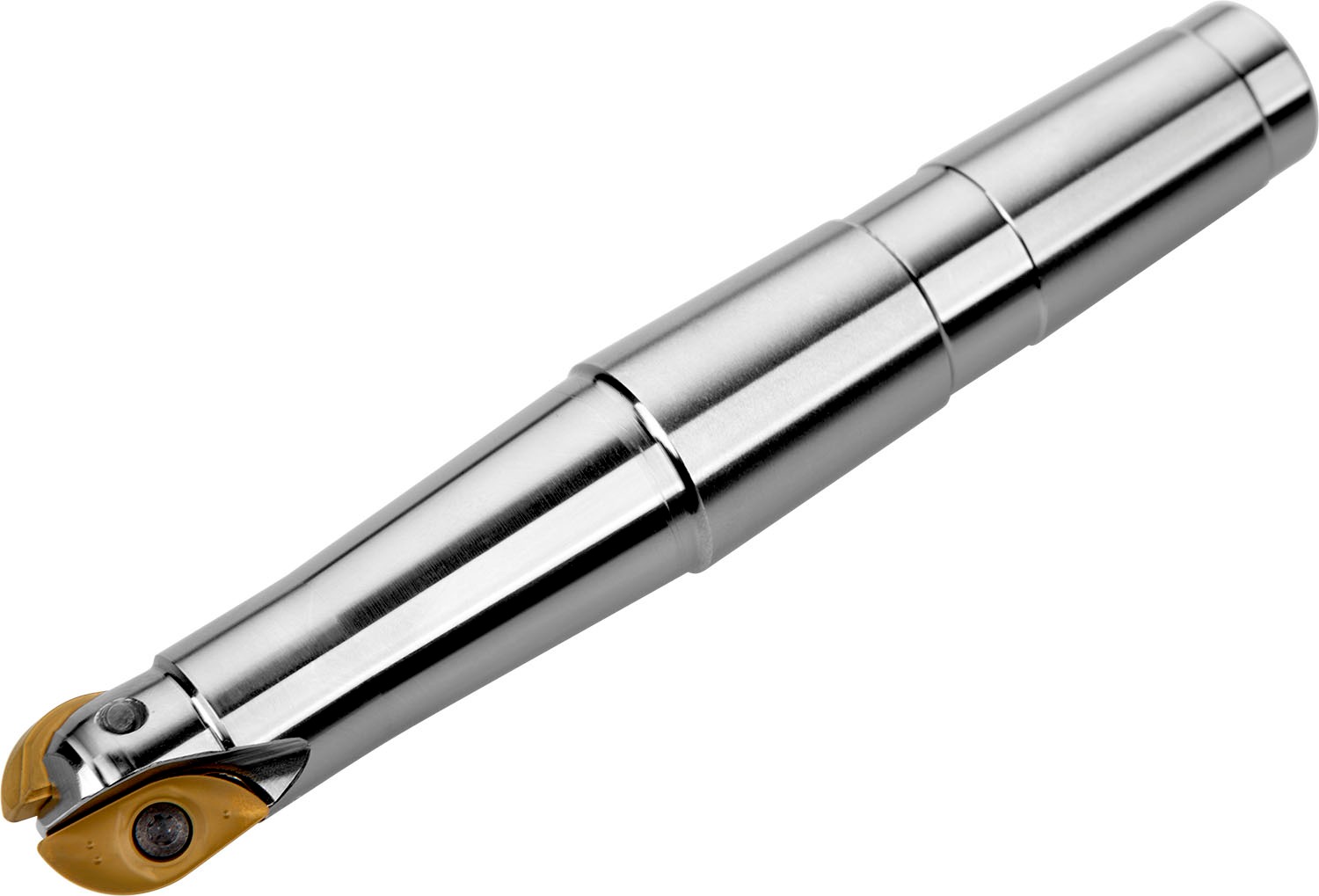

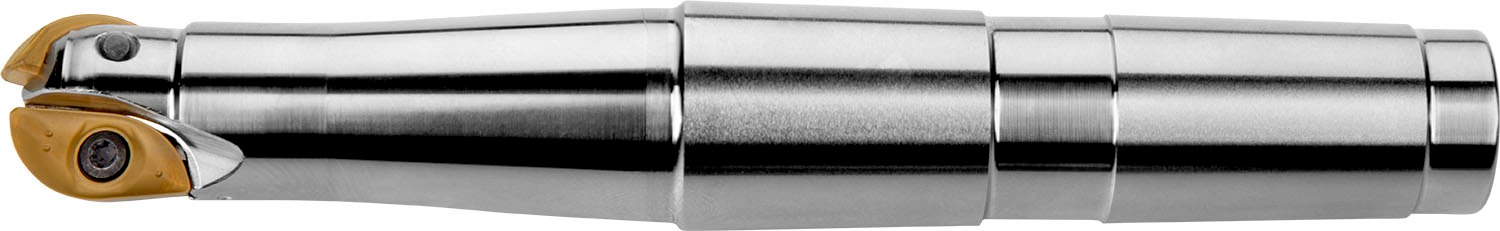

PRAMET 32L2R100E04-SZP32 Milling cutters for D&M

Description: Value
EAN number: 3603602970046
Product number (SAP): 86007506
Ordering code ANSI: 32L2R100E04-SZP32
Gross weight – grams: 973.6

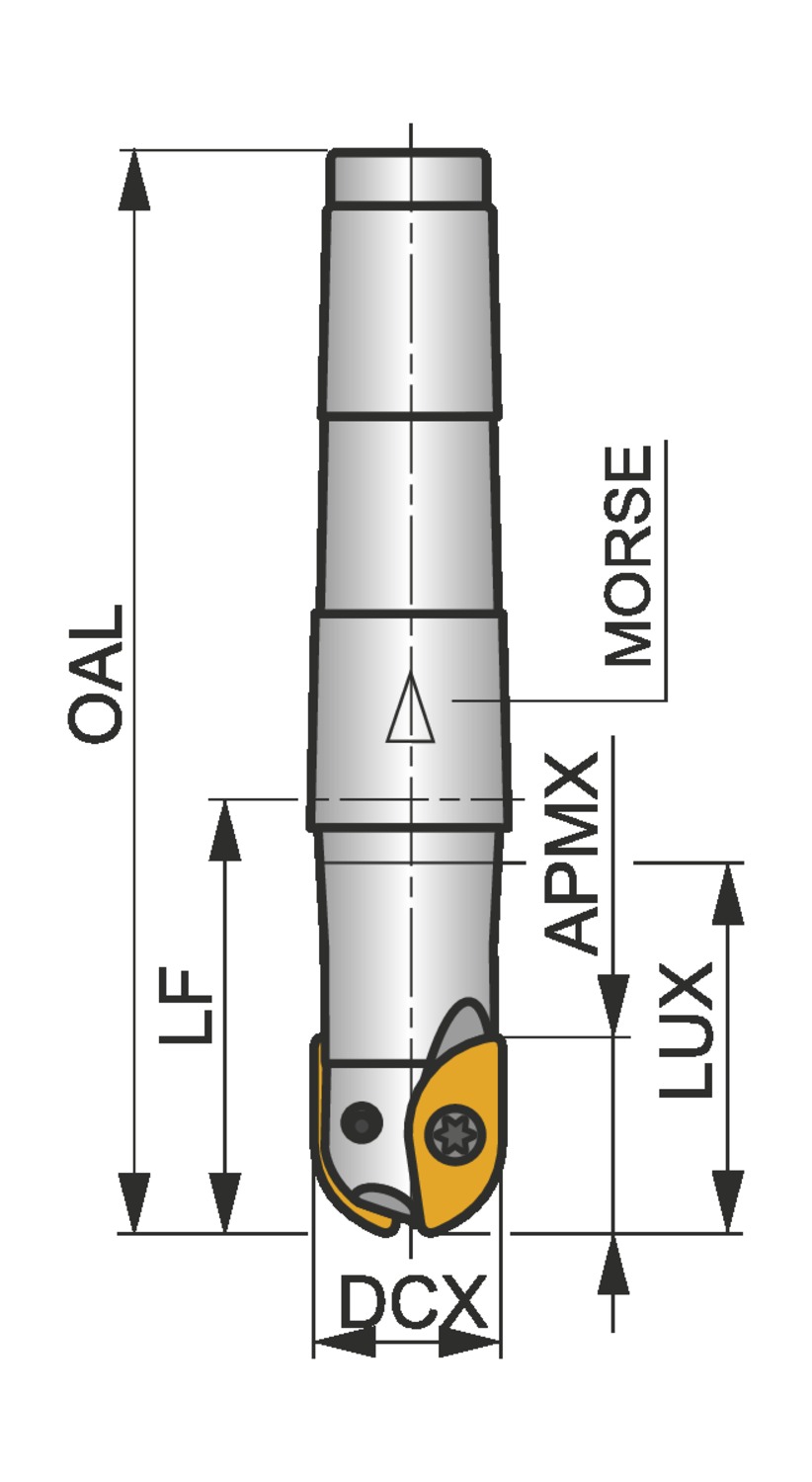

Cutting diameter maximum – millimeter (DCX): 32 mm
Overall length – millimeter (OAL): 203 mm
Functional length – millimeter (LF): 100 mm
Connection size code machine side (CZC MS): 4
Depth of cut maximum – millimeter (APMX): 28.6 mm

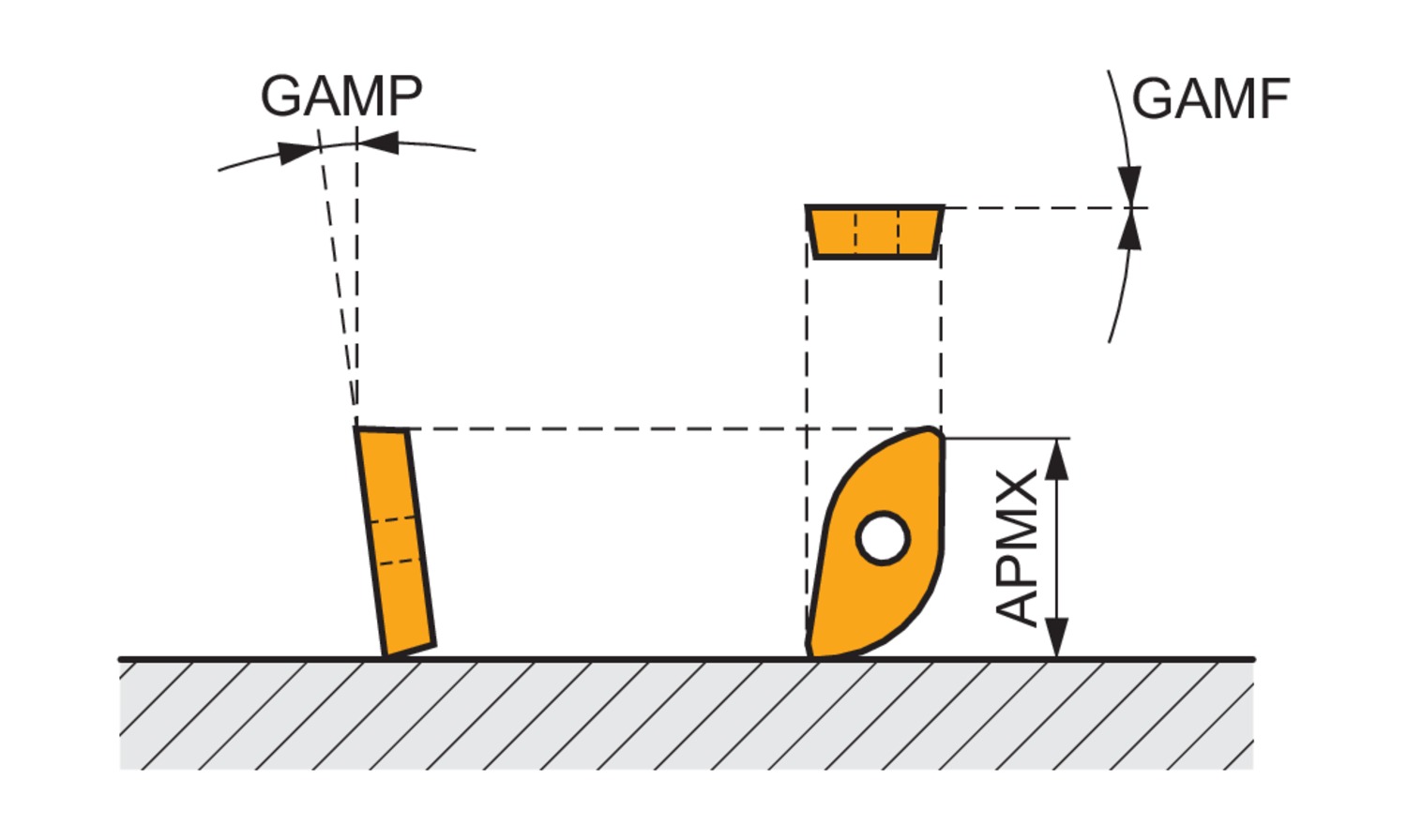

Radial rake angle (GAMF): 0
Axial rake angle (GAMP): -10
Peripheral effective cutting edge count (ZEFP): 2
Rotational speed maximum (RPMX): 18500
Net weight – grams: 900
Insert index count (NOI): 2
ISO: 32L2R100E04-SZP32
