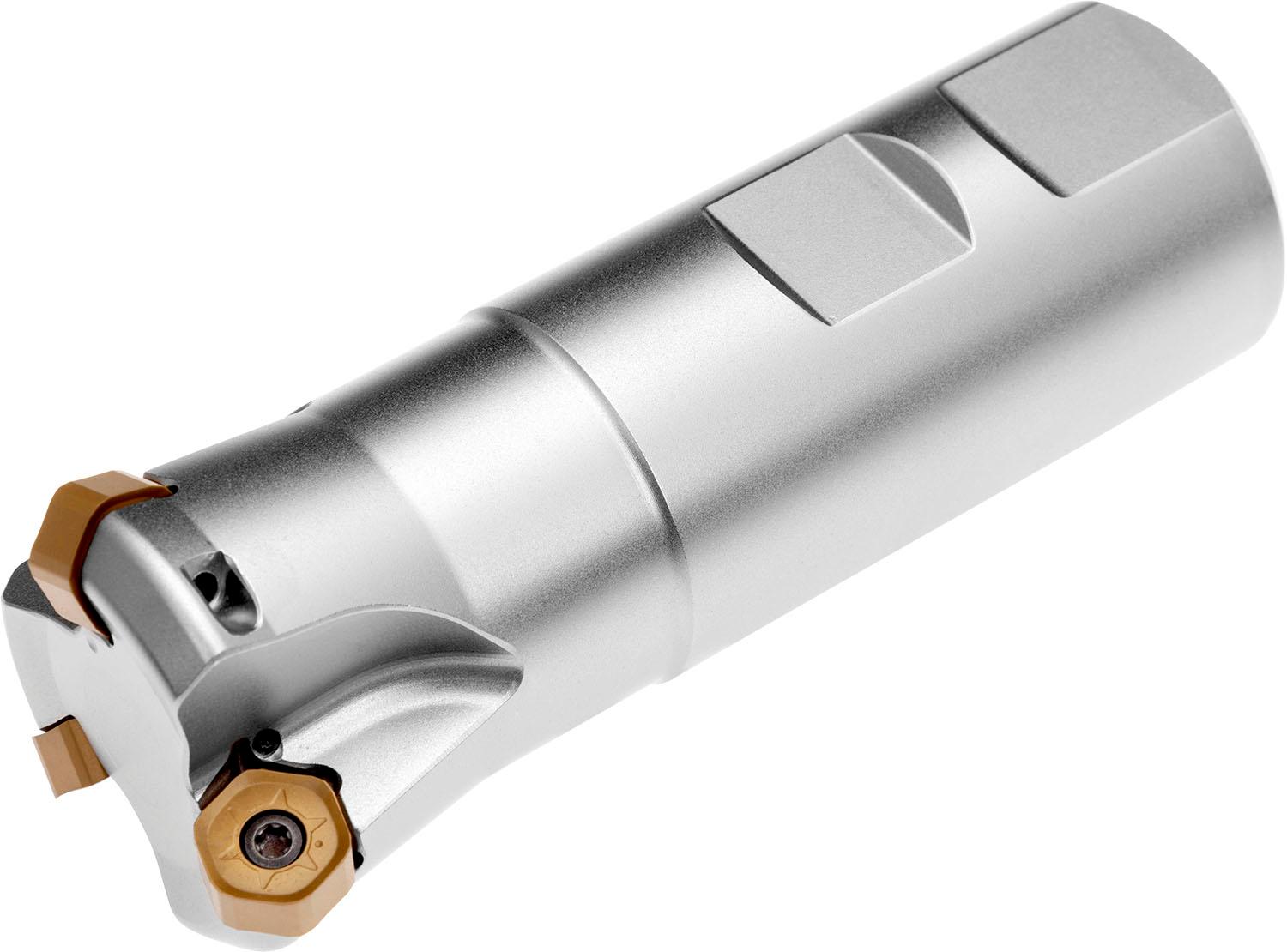

PRAMET 32N3R042B32-SHN06C-C Milling cutters with clamping by screw

Product Code: 32N3R042B32-SHN06C-C

$683.20$621.09 Ex. GST

Product Code: 32N3R042B32-SHN06C-C SKU 32N3R042B32-SHN06C-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with double negative geometry which utilises 3 of HNGX 0604AN.. or XNGX 0604AN.. double-sided inserts, cutting diameter 32 to maximum 39.3mm with 45° approach angle and 32mm Weldon shank according to DIN 1835B, 42mm functional and 103mm overall length, through coolant for face milling, ramping, progressive plunge milling and chamfering with a maximum depth of cut of 3.0mm

Additional information

Weight 0.6633 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 3603602956309
Product number (SAP): 86001063
Ordering code ANSI: 32N3R042B32-SHN06C-C
Product Line: ECON HN
Gross weight – grams: 590
Cutting diameter – millimeter (DC): 32 mm
Cutting diameter maximum – millimeter (DCX): 39.3 mm
Overall length – millimeter (OAL): 103 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 42 mm
Radial rake angle (GAMF): -7
Axial rake angle (GAMP): -7
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 15400
Net weight – grams: 590
Cutter Design: SHN06C
Insert index count (NOI): 3
ISO: 32N3R042B32-SHN06C-C

Brand

PRAMET
