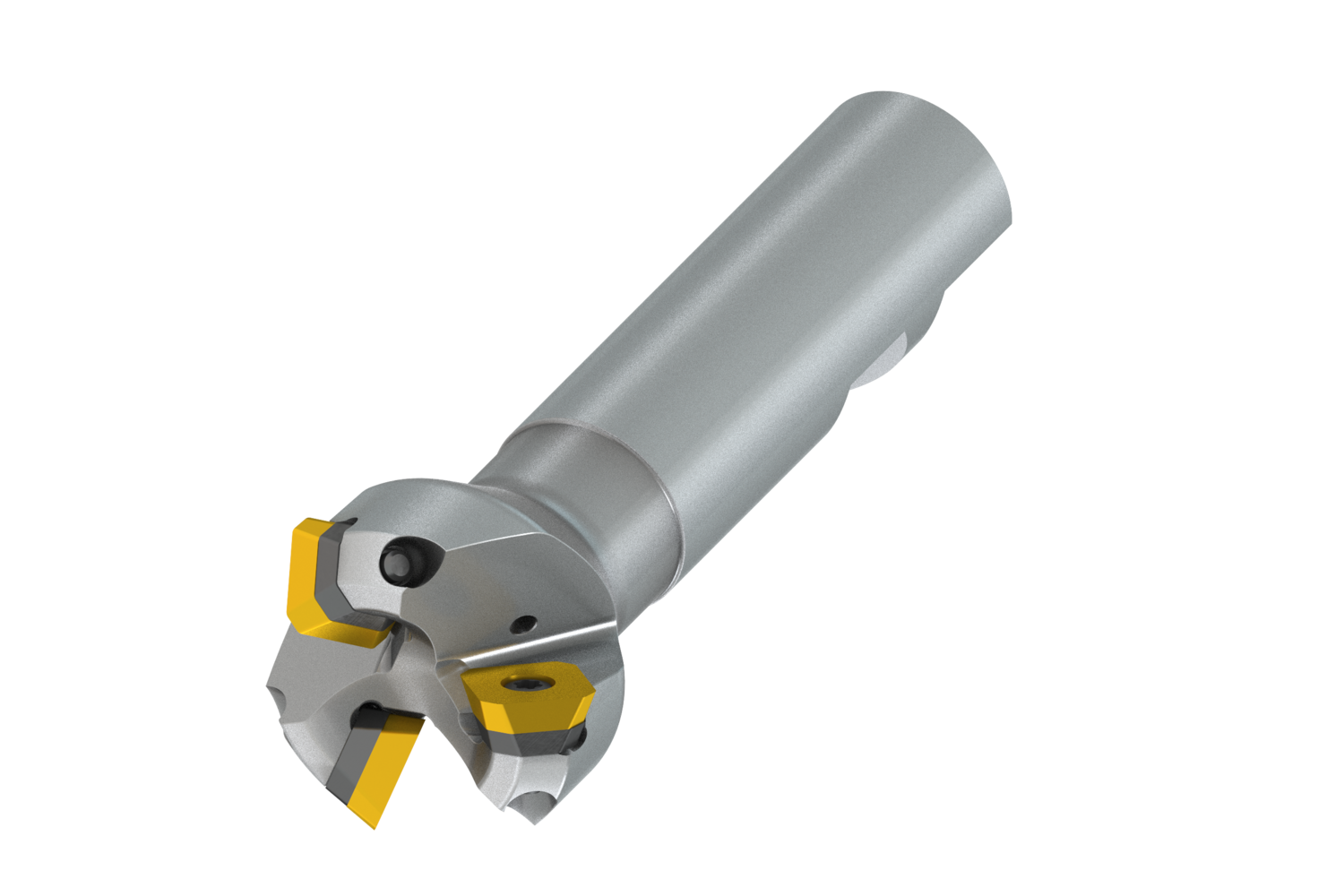

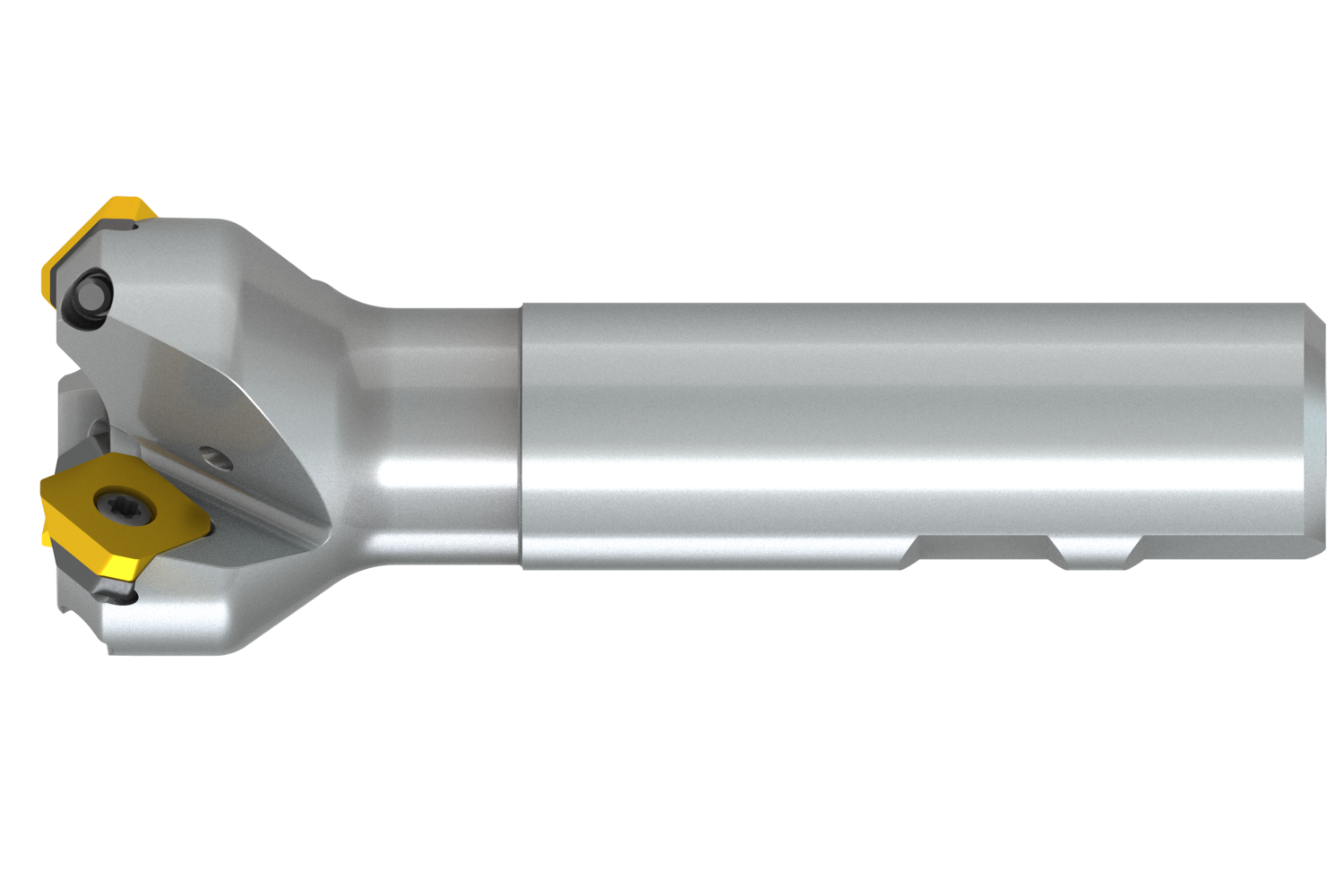

PRAMET 32N3R045B25-SSD13F-C Milling cutters with clamping by screw

Product Code: 32N3R045B25-SSD13F-C

$582.36$529.42 Ex. GST

Product Code: 32N3R045B25-SSD13F-C SKU 32N3R045B25-SSD13F-C Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Face mill with positve/negative geometry which utilises 3 of SDET 13T3.., SDMT 13T3.. or XDET 13T3.. single-sided inserts, cutting diameter 32mm to maximum 44.9mm with 45° approach angle and 25mm Weldon shank according to DIN 1835B, 45mm usable and 120mm overall length, through coolant for face milling and chamfering with a maximum depth of cut of 6.4mm

Additional information

Weight 0.4300 kg
Dimensions
barcode

3603603977198

Additional Information

Description: Value
EAN number: 3603603977198
Product number (SAP): 86038922
Ordering code ANSI: 32N3R045B25-SSD13F-C
Gross weight – grams: 481.3
Cutting diameter maximum – millimeter (DCX): 44.9 mm
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 120 mm
Connection diameter – millimeter (DCON MS): 25 mm
Usable Length – millimeter (LU): 45 mm

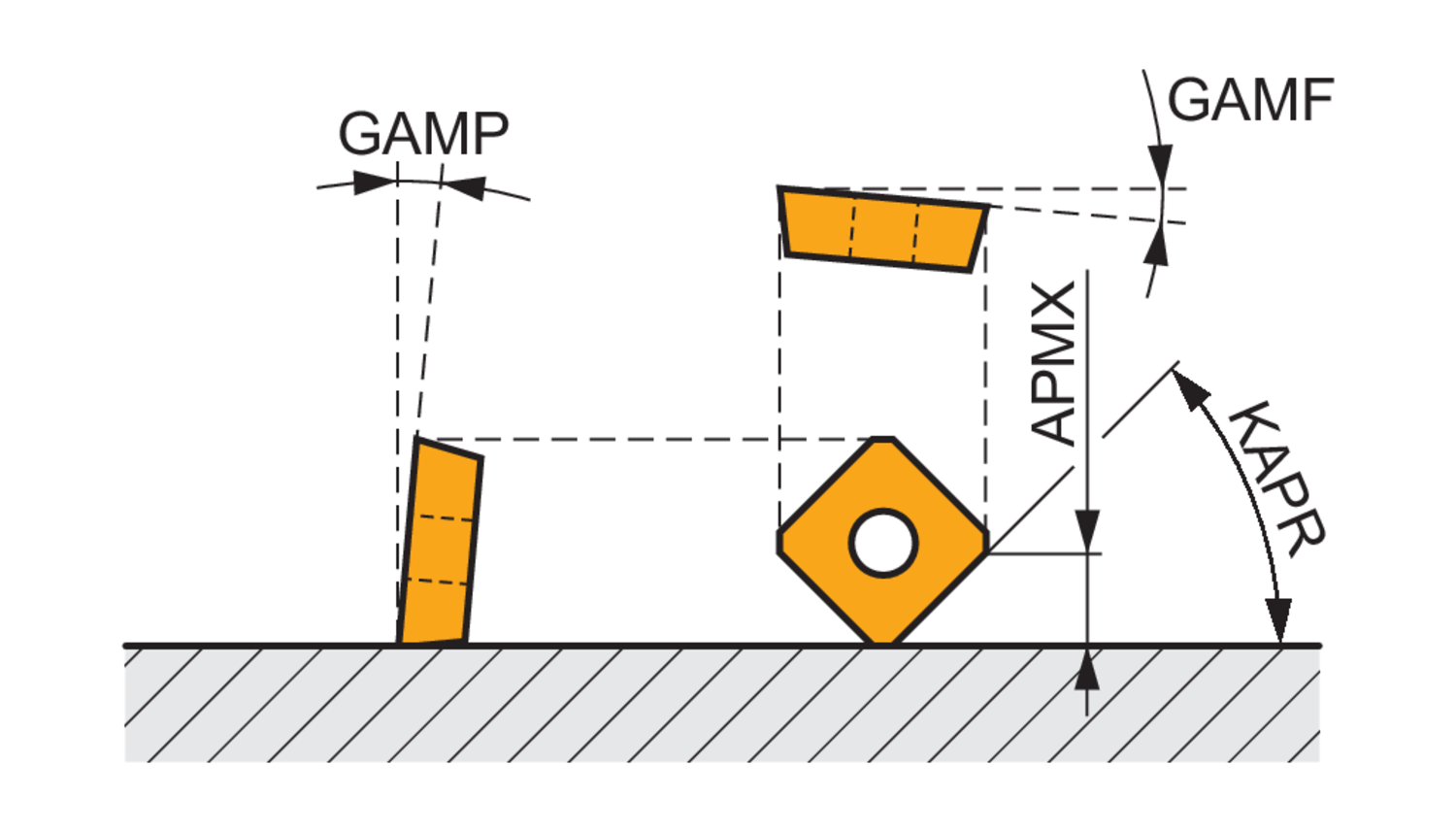

Radial rake angle (GAMF): -15
Axial rake angle (GAMP): 15
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 16100
Net weight – grams: 430
Cutter Design: SSD13F
ISO: 32N3R045B25-SSD13F-C
