Description: Value
EAN number: 3603603844643
Product number (SAP): 86037896
Ordering code ANSI: 35A3R034A32-STN16-C
Product Line: ECON TN
Gross weight – grams: 1102.5
Cutting diameter – millimeter (DC): 35 mm
Overall length – millimeter (OAL): 195 mm
Connection diameter – millimeter (DCON MS): 32 mm
Usable Length – millimeter (LU): 34 mm

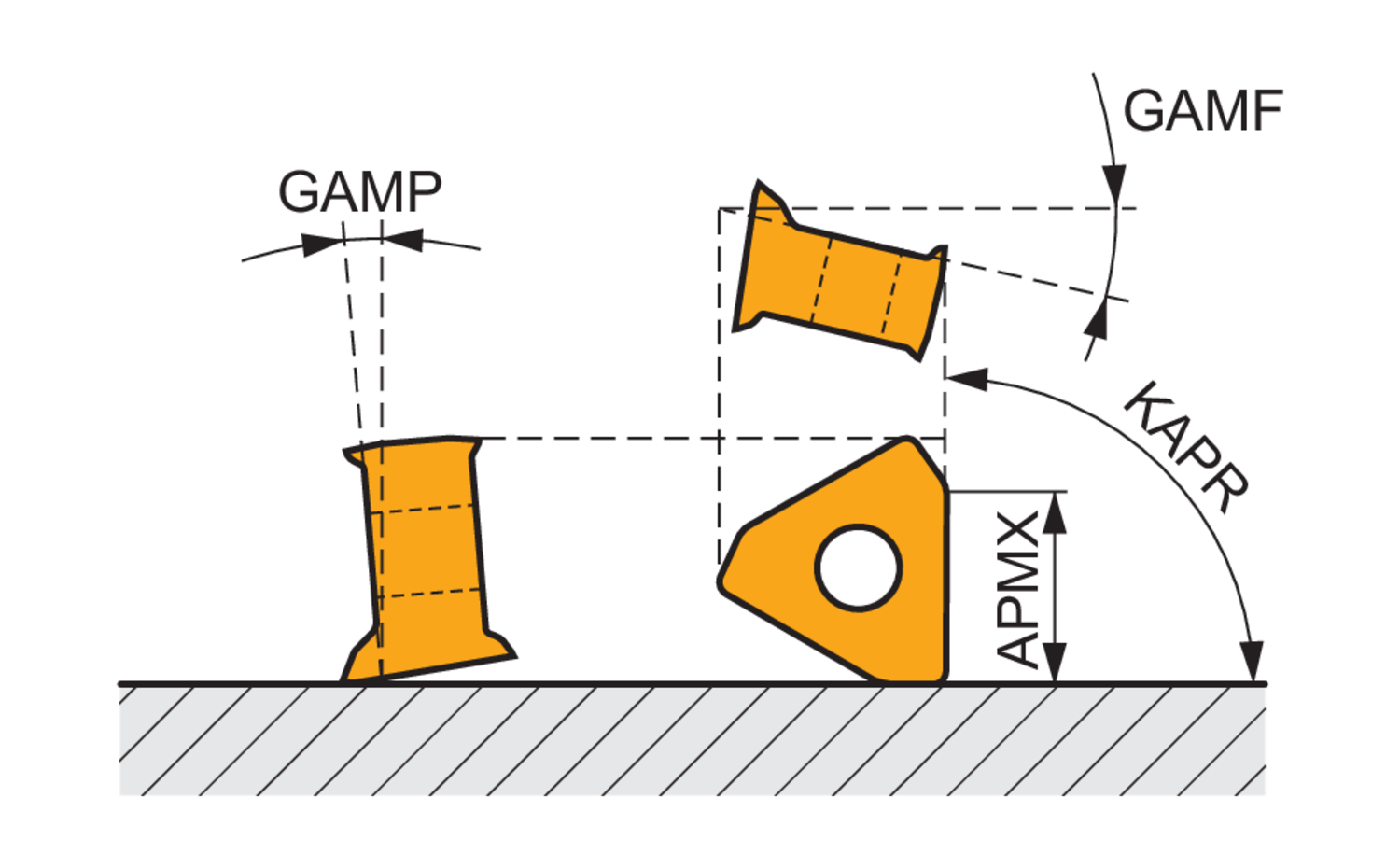

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 17000
Net weight – grams: 1073
Cutter Design: STN16
Insert index count (NOI): 3
ISO: 35A3R034A32-STN16-C
|
