PRAMET 35E3R050A32-SSN11-C

Product Code: 35E3R050A32-SSN11-C

$679.80$618.00 Ex. GST

Product Code: 35E3R050A32-SSN11-C SKU 35E3R050A32-SSN11-C Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

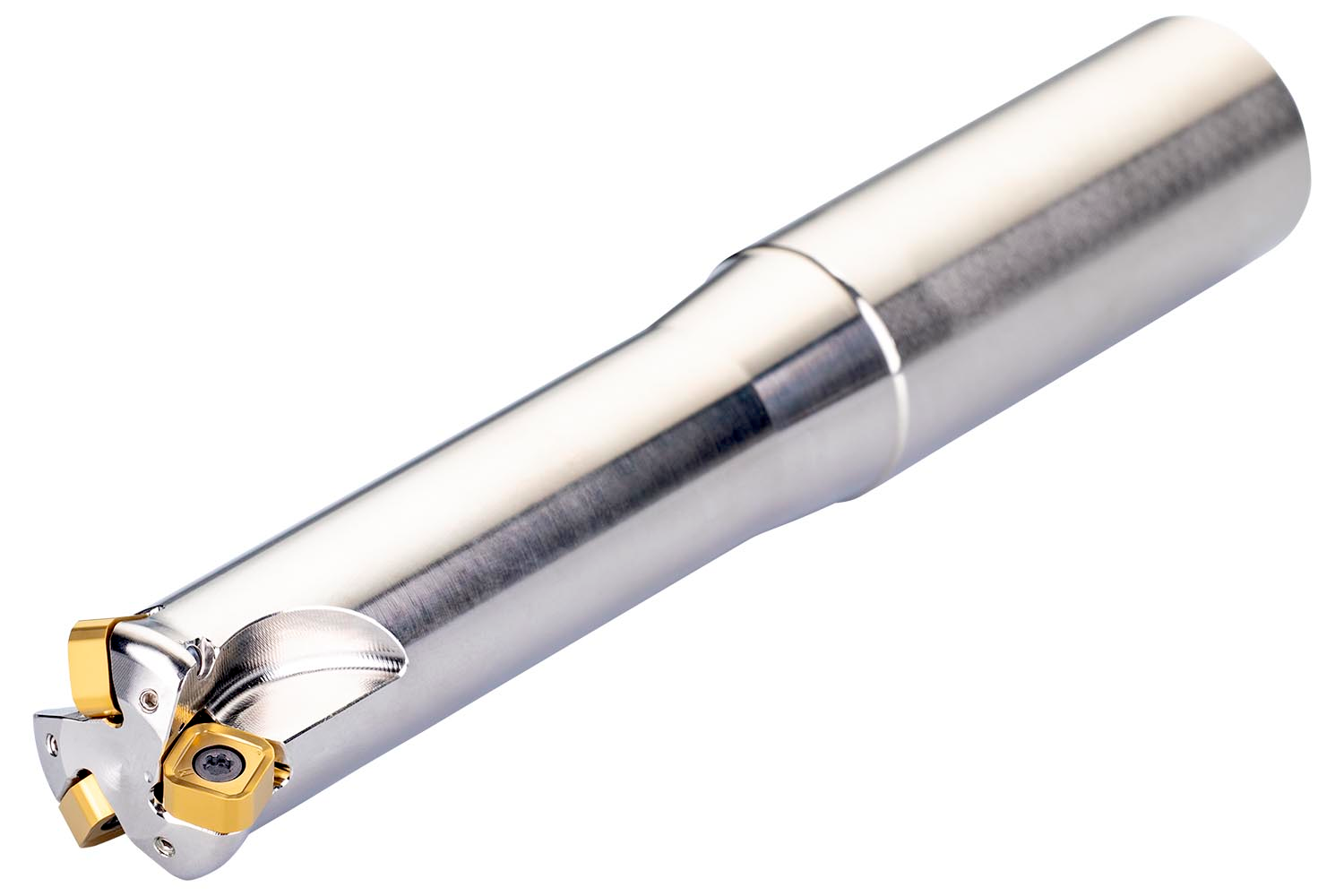

High feed cutter with double negative geometry which utilises 3 of SNGX 1104.. double-sided inserts, cutting diameter 35mm with 18° approach angle and 32mm parallel shank according to DIN 1835A, 50mm functional and 200mm overall length, through coolant for face milling, copy milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.7mm

Additional information

Weight 0.66 kg
Dimensions Length 20cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN Number: 3603603672512 Product Number (SAP): 86035440 Ordering Code ANSI: 35E3R050A32-SSN11-C Gross Weight – Grams: 1083 Cutting Diameter Maximum – Millimeter (DCX): 35 mm Cutting Diameter – Millimeter (DC): 21.2 mm Overall Length – Millimeter (OAL): 200 mm Connection Diameter – Millimeter (DCON MS): 32 mm Usable Length – Millimeter (LU): 50 mm Radial Rake Angle (GAMF): -11 Axial Rake Angle (GAMP): -10 Peripheral Effective Cutting Edge Count (ZEFP): 3 Rotational Speed Maximum (RPMX): 16800 Net Weight – Grams: 1083 Cutter Design: SSN11 Insert Index Count (NOI): 3 ISO: 35E3R050A32-SSN11-C

Brand

PRAMET
