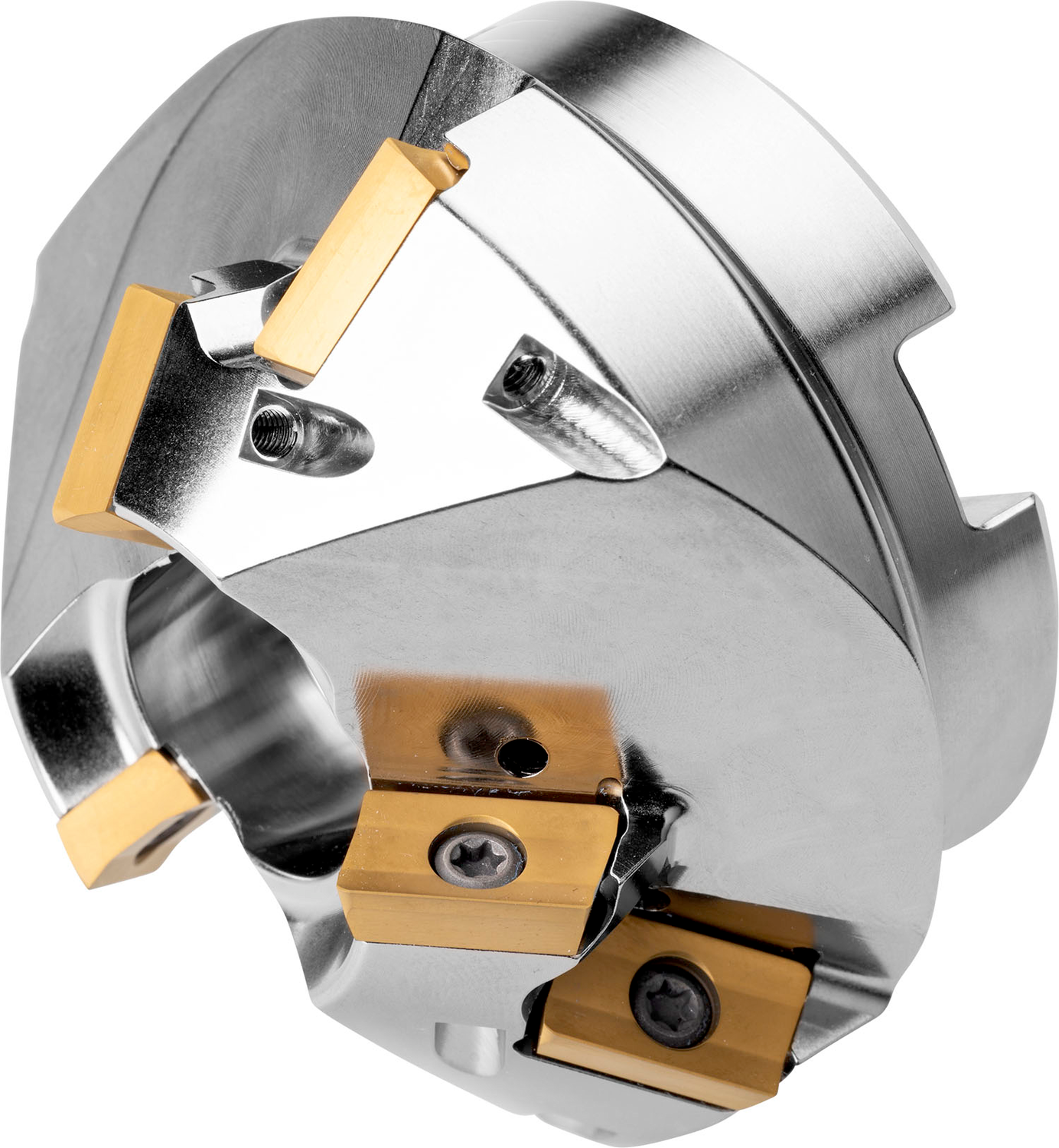

PRAMET 35T03R-S55XP1623-C Milling cutters with clamping by screw

Description: Value
EAN number: 3603602957092
Product number (SAP): 86001616
Ordering code ANSI: 35T03R-S55XP1623-C
Gross weight – grams: 746.7
Cutting diameter – millimeter (DC): 35 mm
Cutting diameter maximum – millimeter (DCX): 68.4 mm
Functional length – millimeter (LF): 50 mm
Connection diameter – millimeter (DCON MS): 27 mm
Counterbore diameter connection bore – millimeter (DCCB): 22 mm
Tool cutting edge angle (KAPR): 55
Keyway width – millimeter (KWW): 12.4 mm
Keyway depth – millimeter (KWD): 7 mm
Depth of cut maximum – millimeter (APMX): 23 mm
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 2
Flute count (NOF): 3
Number of inserts (helical mills): 6
Rotational speed maximum (RPMX): 15200
Net weight – grams: 720
Cutter Design: J(T)-SXP16
Insert index count (NOI): 6
ISO: 35T03R-S55XP1623-C
