Description: Value
EAN number: 3603603844452
Product number (SAP): 86037877
Ordering code ANSI: 40A03R-S90TN16-C
Product Line: ECON TN
Gross weight – grams: 319.9

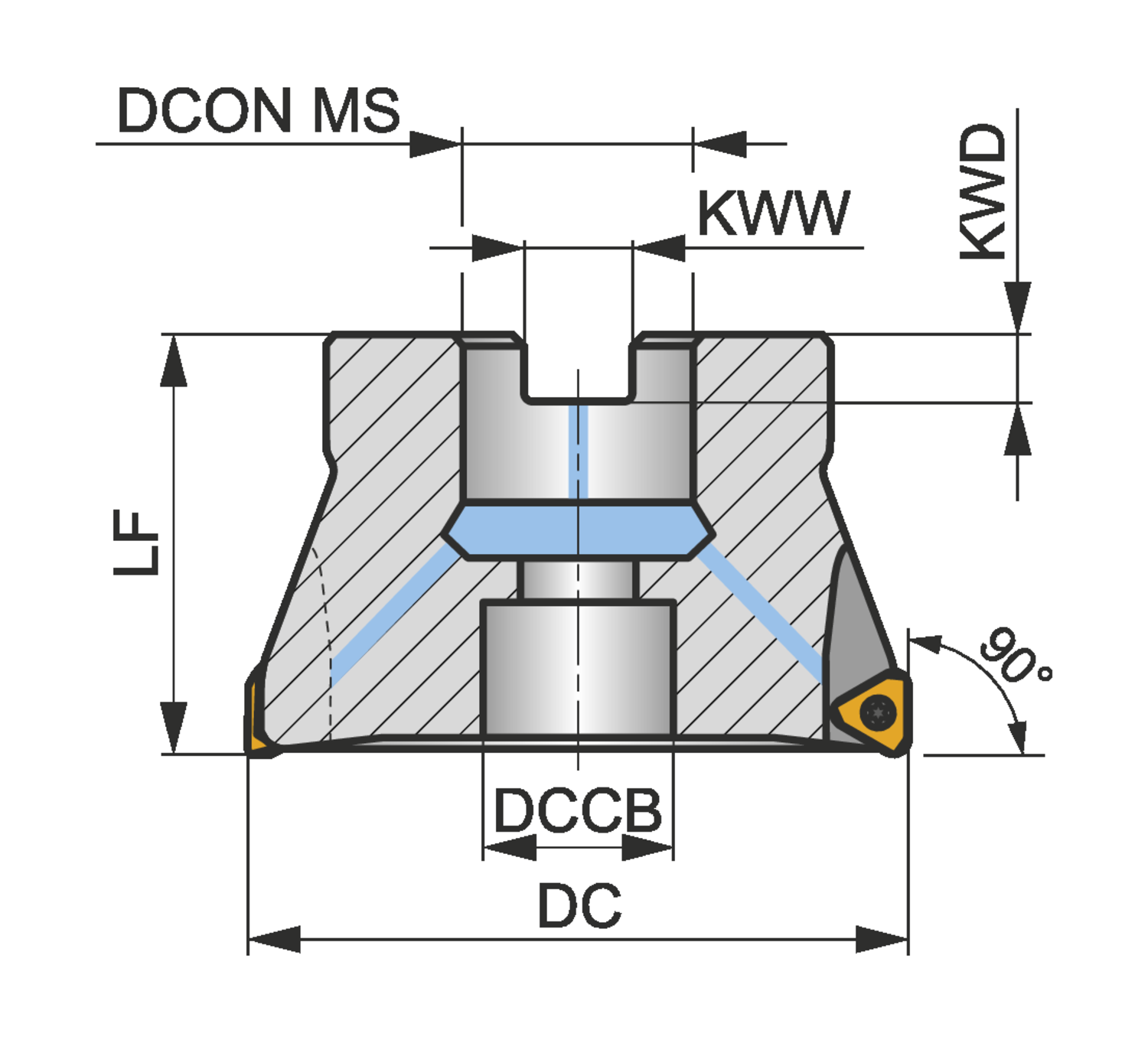

Cutting diameter – millimeter (DC): 40 mm
Overall length – millimeter (OAL): 40 mm
Connection diameter – millimeter (DCON MS): 16 mm
Counterbore diameter connection bore – millimeter (DCCB): 12.4 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 8.4 mm
Keyway depth – millimeter (KWD): 5.6 mm

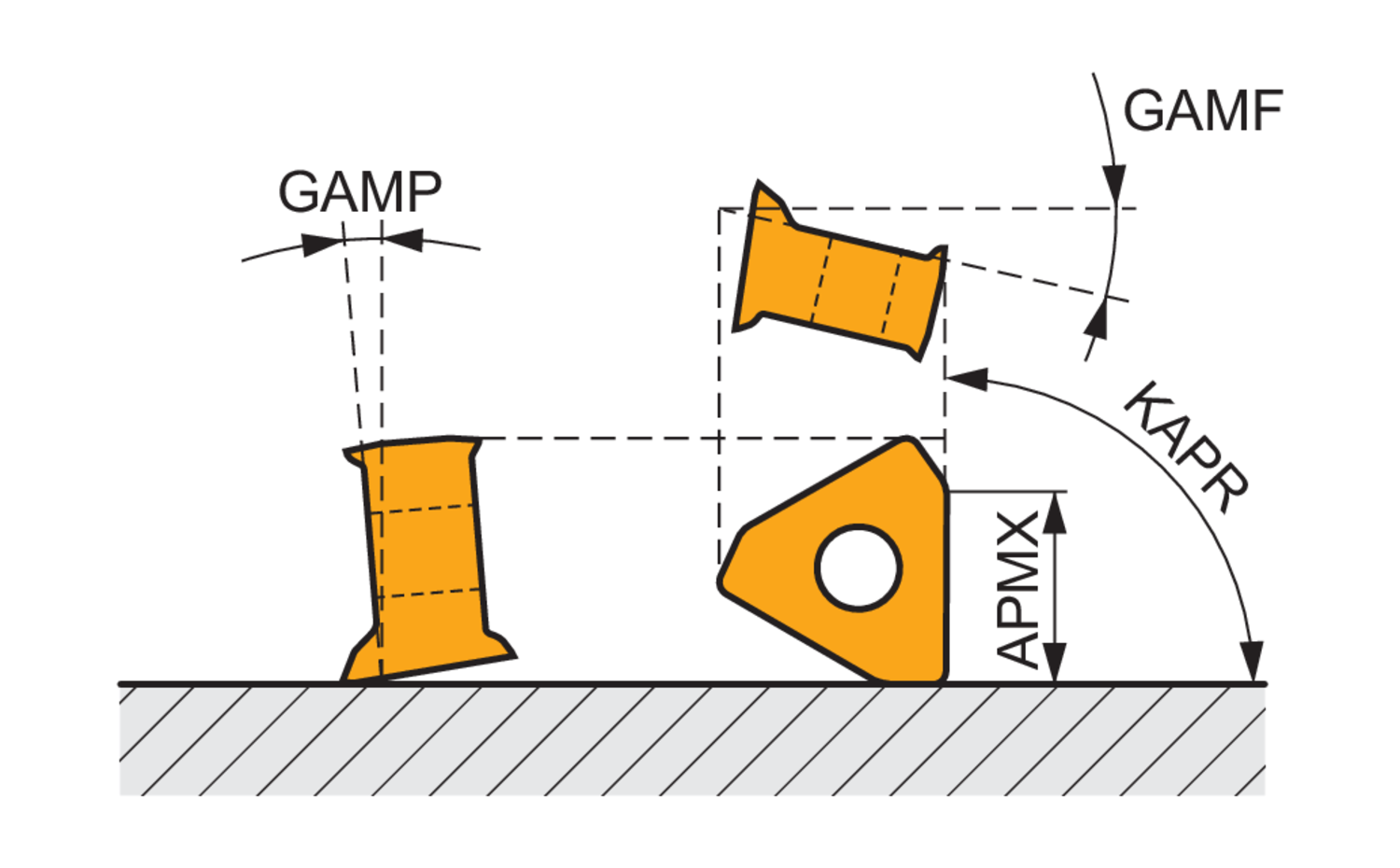

Radial rake angle (GAMF): -16
Axial rake angle (GAMP): -9.5
Peripheral effective cutting edge count (ZEFP): 3
Rotational speed maximum (RPMX): 16000
Net weight – grams: 319.9
Cutter Design: STN16
Insert index count (NOI): 3
ISO: 40A03R-S90TN16-C
|
