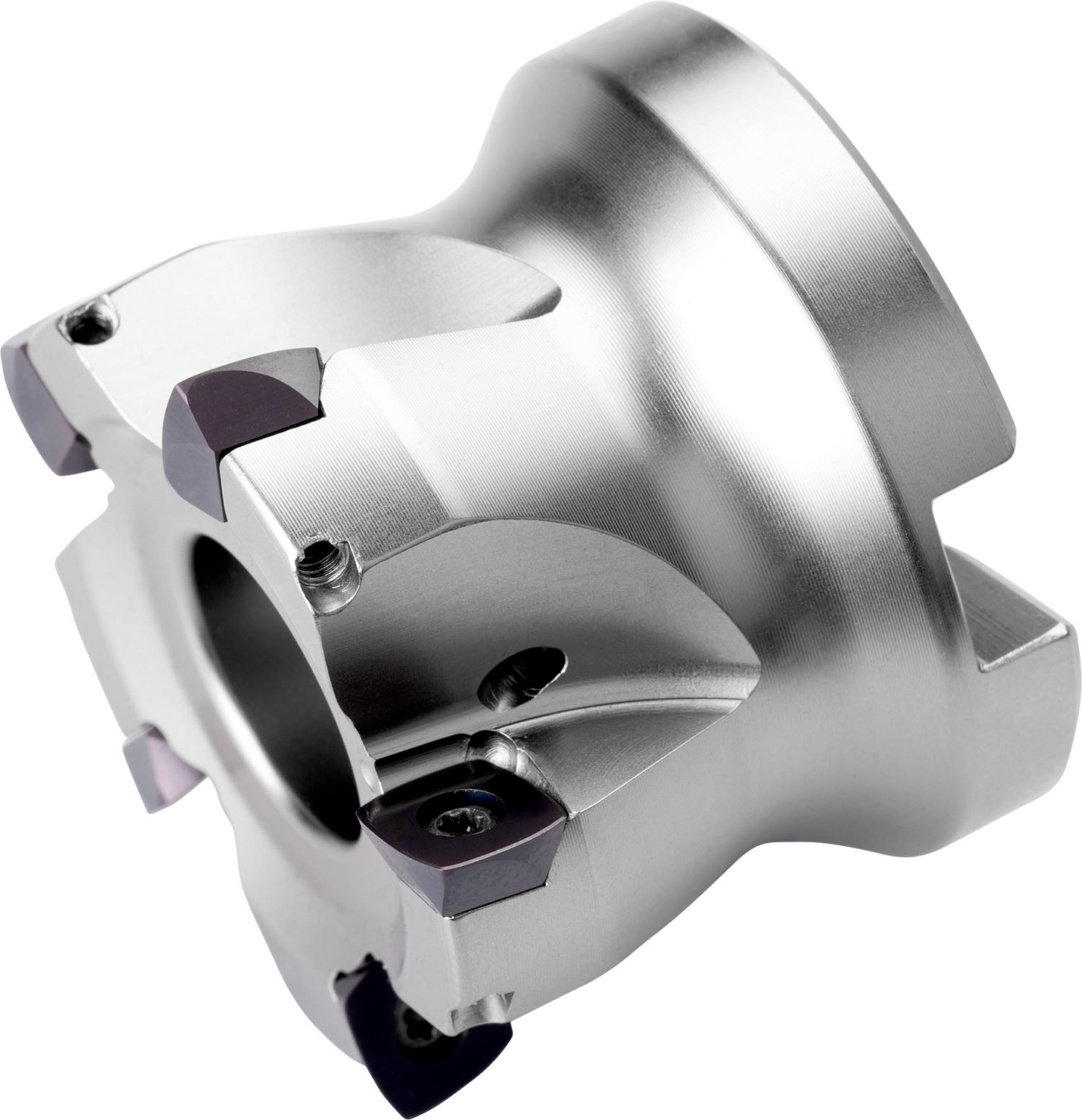

PRAMET 40A04R-SMOZD09-C Milling Cutters – HFC

Description: Value
EAN number: 3603602950123
Product number (SAP): 86038529
Ordering code ANSI: 40A04R-SMOZD09-C
Product Line: FEED ZD
Gross weight – grams: 342.9
Cutting diameter maximum – millimeter (DCX): 40 mm
Cutting diameter – millimeter (DC): 26.7 mm
Connection diameter – millimeter (DCON MS): 16 mm
Functional length – millimeter (LF): 40 mm
Keyway width – millimeter (KWW): 8.4 mm
Keyway depth – millimeter (KWD): 5.6 mm
Radial rake angle (GAMF): -6
Axial rake angle (GAMP): 10
Peripheral effective cutting edge count (ZEFP): 4
Cutting pitch differential (CPDF): Yes
Rotational speed maximum (RPMX): 18000
Net weight – grams: 335.1
Cutter Design: SZD09
Insert index count (NOI): 4
ISO: 40A04R-SMOZD09-C
